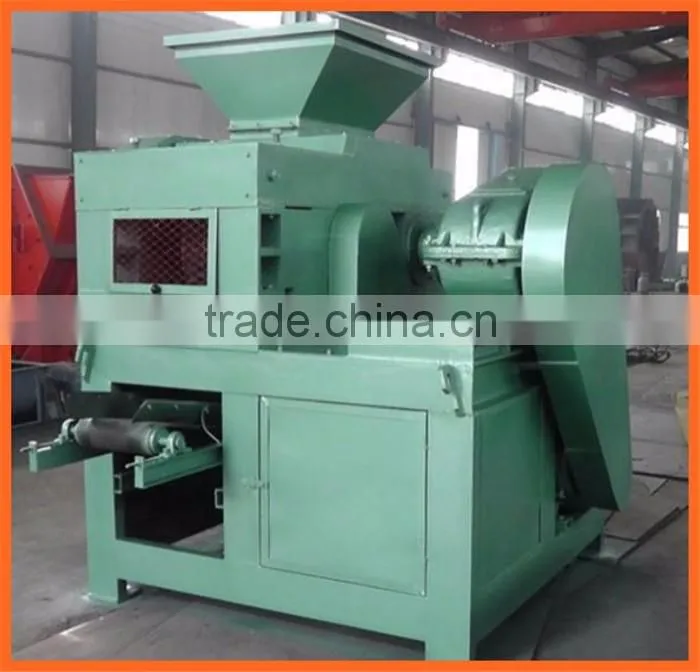

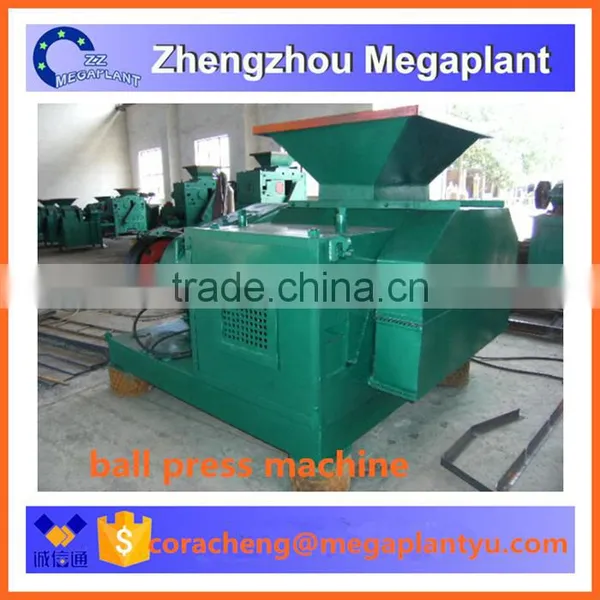

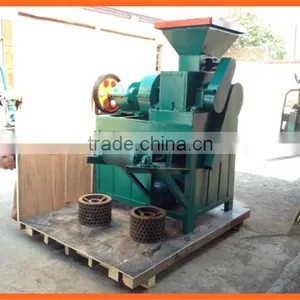

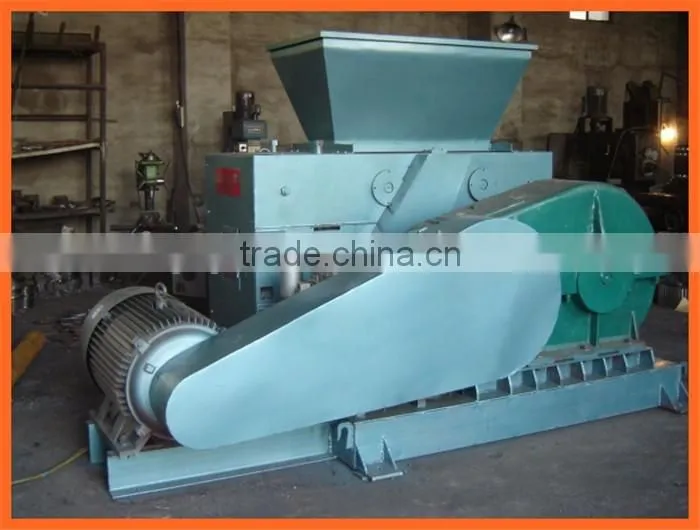

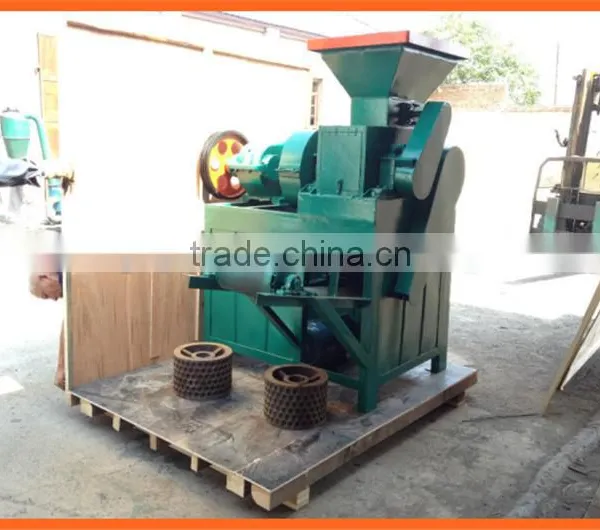

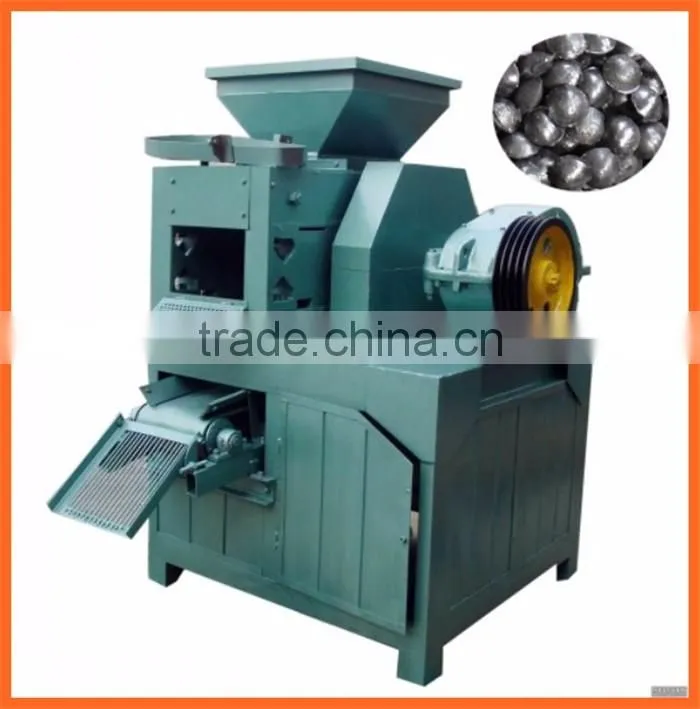

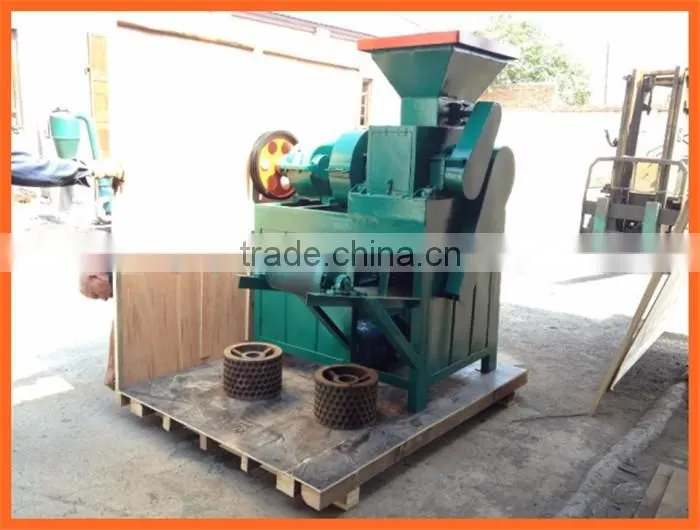

The hot selling coal briquette ball press machine/coal ball briquette machine for sales

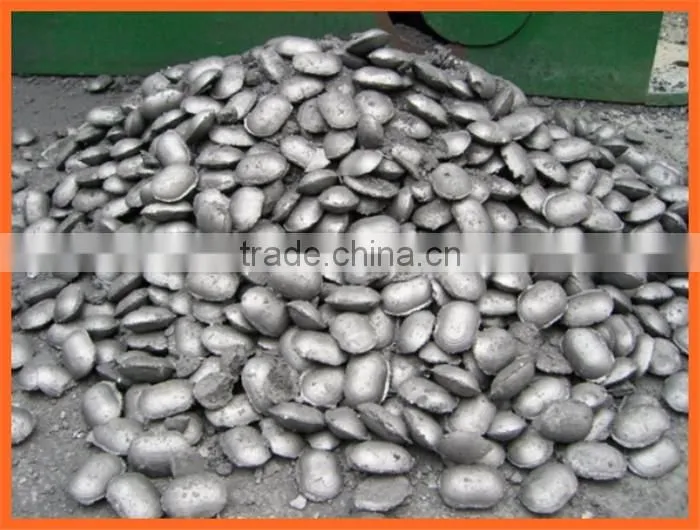

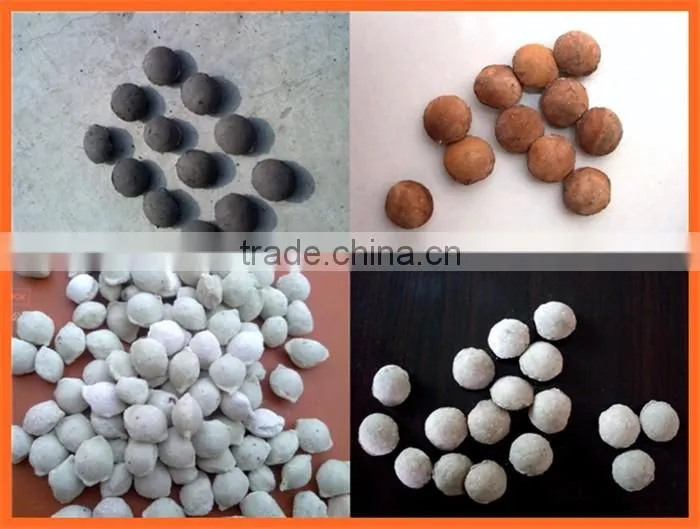

1. BBQ /Charcoal/coal powder Briquette Machine is applied to various kinds of materials, such as coal powder, charcoal powder, coking coal, coke breeze, dusting ash, steel slag, coal slag, iron fine powder, aluminum ash powder, sili comanganese mineral powder, etc.
2.The material can be made into many kinds of dry powder materials using the coal dust briquette machine, like coal, charcoal, metal powder, refractory materials, etc. Dry powder briquette machine can make the material become higher pressure and higher density during production of briquettes.

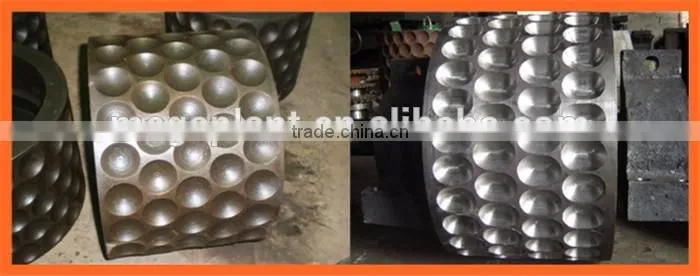

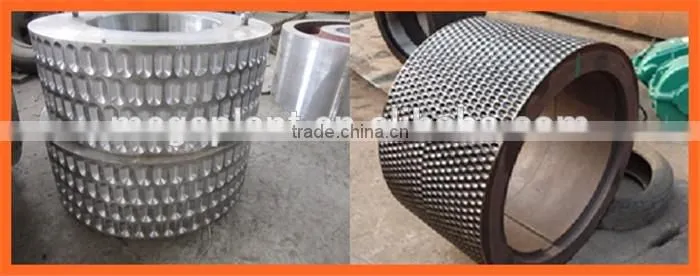

3.This series of coal dust briquette machine has four rollers.Two large rollers is in a fixed position of the frame; the other two smaller rollers are moveable. As it is named implied, this briquette machine has four rollers and do twice pressing in production of briquettes, so the briquette is with stronger and in higher density, the surface of briquettes is smoother.
4.Less smoke, Non-pollution, large capacity, easy operation, less consumption.
The working principles of coconut shell charcoal making machine:
1.This series of briquette making machine will pass the power on to the two pressure roller through the reducer.
2.The two sides and roll rotation,in both the rotating roll.
3.Natural materials to enter the ball roll mode,with the roll rotation, material pressure on a small become larger.
4.When the material to the two rollers rotating line contact point,the pressure of materials has reached the peak.
5.Tremendous pressure in the role of line,the materials become a finished product from the powder ball.
Parameter for energy-saving charcoal birquette machine
|
Model (unit) |
Power (kw) |
Capacity (kg/hr) |
Rollers Diameter (mm) |
Briquette diameter (mm) |
Max feeding size (mm) |
Material of Roller
|
Packing Dimension (mm) |
|
MG-CB-290 |
5.5 |
1500-3000 |
290 |
Less than 50 |
3 |
Mn65 |
1100*700*1500 |
MG-CB- 360 |
7.5 |
2500-5000 |
360 |
Less than 50 |
3 |
Mn65 |
1380*1620*1710 |
MG-CB- 450 |
22 |
5000-8000 |
450 |
Less than 50 |
3 |
Mn65 |
2000*1700*1750 |
MG-CB- 650 |
30 |
8000-16000 |
650 |
Less than 50 |
3 |
Mn65 |
2500*1500*1700 |
MG-CB- 1000 |
55 |
18000-25000 |
1000 |
Less than 50 |
3 |
Mn65 |
3980*4950*3800 |
Features ands advantages:
1. High profit and low cost in raw material
2. Increase the calorific value per unit volume after briquetting
3. Energy saving, friendly-environment, Low-consumption
4. No chemical additives, no smell, no smoke
5. Easy to transport and store as densities product.

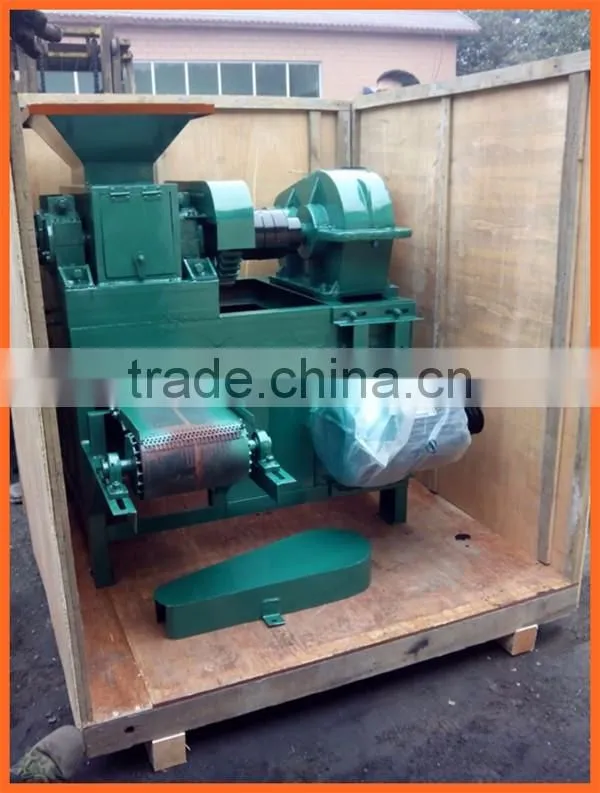

Shipping: All machines will be sent by sea, if you need other kind of transportation, please inform us in advance. And all machines would be shipped in 7 days after the receipt of payment. Before and after shipping, we will take photos of machines and send photos to client.
