Home > Packaging & Printing > Printing Machinery > Heat Press Machine > Strong Work Table Pneumatic Heat Press Machine For Glasses and Ceramics

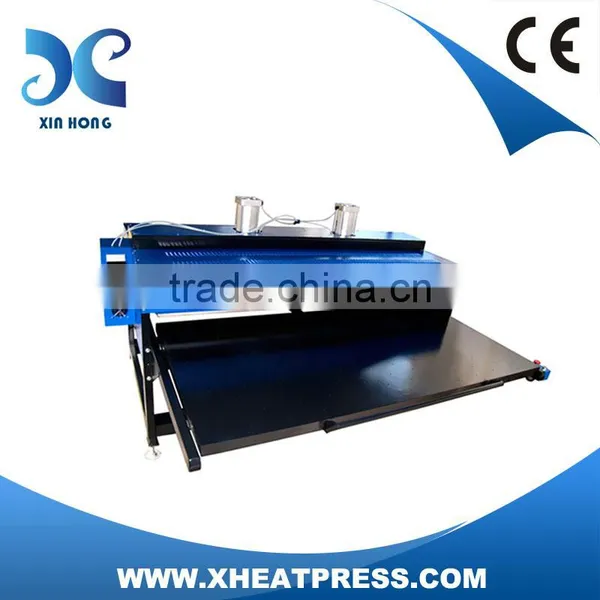

Strong Work Table Pneumatic Heat Press Machine For Glasses and Ceramics
US$ 1 - 6,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Flatbed Printer
Place of Origin:
Fujian, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Air Regulator Monitored ,Shuttle Heat Platen T-shirt Pneumatic Heat Press MachineUS$ 1 - 6,000MOQ: 1 Piece -
CE Approved Pneumatic Automatic Printing Machines FJXHB5-1 ( Frour Station)US$ 1 - 6,000MOQ: 1 Piece
-
Fabric Heat Transfer Printing MachineUS$ 1 - 7,000MOQ: 1 Piece
-
Double Heating Plates Pneumatic and Automatic Heat Press Transfer MachinesUS$ 1 - 7,000MOQ: 1 Piece
-
Mini Pneumatic Auto Heat Press Machine for Mouse PadUS$ 1 - 6,000MOQ: 1 Piece
Condition
New
Plate Type
Flatbed Printer
Place of Origin
Fujian, China
Brand Name
Xinhong
Model Number
FJXHB4
Usage
Paper Printer, Label Printer, Card Printer, Cloths Printer, Other, Paper Printer, Label Printer, Card Printer, Cloths Printer, plate.cap.mug printer
Automatic Grade
Automatic
Voltage
380V/220V, 110V/220V/380V
Gross Power
9kW
Dimensions(L*W*H)
1200mmx 900mm x 1600mm
Weight
500kg
Certification
CE ISO9001, CE ISO
After-sales Service Provided
No overseas service provided
Specifications
Pneumatic Auto Heat Press Machine FJXHB4Digital Time & Temp. Controller
Printing Area:600mm x 800mm
Emergency release device
Strong Work Table Pneumatic Heat Press Machine For Glasses and Ceramics
| Specification: | |
| Model No. | FJXHB4 |
| Machine Type | Pneumatic Automatic Heat Press Machine |
| Controller | Digital Time & Temp. Controller |
| Voltage | 220V/ 380V |
| Power | 9kW |
| Time Range | 0-60sec. |
| Max. Temp. | 245°C (473°F) |
| Printing Area | 600mm x 800mm(24"x31")/ 800mm x 1000mm(31"x39")/1000mm x 1200mm(39"x47") |
| /1000mm x 1500mm(39"598")/1000mm x 2000mm(39"x79") | |
| Air Compressor | Required |
| Gross Weight | 500kg/ 540kg/ 700kg/ 930kg/ 1100kg |
| Package Size | 1200mmx 900mm x 1600mm(47"x35"x63")/ 1400mm x 1150mm x 1550mm(55"x45"x61") |
| 1620mm x 1260mm x 1550mm(64"x50"x61")/1880mm x 1310mm x 1600mm(74"x52"x63")/ | |
| 2450mm x 1460mm x 1650mm(96"x57"x67") | |
| Application: | |
| T-shirt, Puzzle, Mouse Pad, Metal Board, Coaster, Slipper, Bag, Cushion, etc. | |
| Features: | |
| 1. Solid steel framework & stainless steel hardwares. | |
| 2. Fully digital temperature & time control. | |
| 3. Automatic alarm, temperature & time recycle. | |
| 4. Teflon-coated thick heat platen, speed & even heater technology. | |
| 5. Pneumatic drive, double platforms, shuttle working table | |
| 6. Emergency release device and air regulator monitored. | |
| 7. Heat & pressure averaged, thick item like ceramic supported. | |
| Strict Quality Control: | |
| 1. Each single heating rod is tested before being casted in an aluminum alloy. | |
| 2. Each single digital time & temp controller is tested before assembling. | |
| 3. All heat press pass high temp. test (200°C) for at least 20 minutes before packing. | |
| Xinhong's Promises: | |
| Xinhong's original intention is to support any of our customers, could deal with their heat transfer | |
| business without interruptions. So Xinhong offers FREE SPARE PARTS with quantity order and | |
| the following warranty: | |
| 1. Free life-time technical support on all heat press. | |
| 2. One-year warranty on entire press machine & spare. | |
| 3. Five-year warranty on castings, welds. | |
| 4. Five-year warranty on heating plate. | |
| 5. Six-month warranty on mug, plate, cap heat press machine. | |
