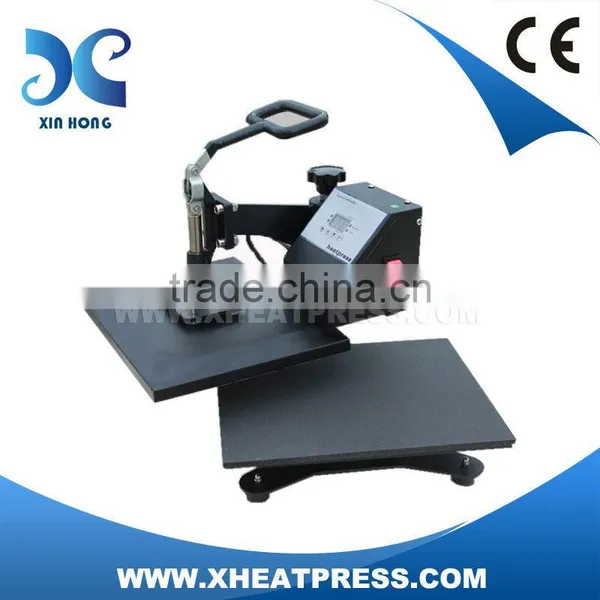

Swing-Away ,Manual T-shirt Printing Machine HP230B

Name: Swing-Away ,Manual T-shirt Printing Machine HP230B
Brand: Xinhong
SKU: 138913865
Availability: InStock

US$ 1 - 400 MOQ: 1 Piece

Key Specifications

Condition:

New

Plate Type:

Flatbed Printer

Place of Origin:

Fujian, China

Fujian Xinhong Mech&Elec Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Fuzhou

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Plate Type Flatbed Printer

Place of Origin Fujian, China

Brand Name Xinhong

Model Number HP230B

Usage Cloths Printer, Other, Cloths Printer, plate printer

Automatic Grade Semi-Automatic

Voltage 110V/220V

Gross Power 600W

Dimensions(L*W*H) 450mm x 410mm x 370mm

Weight 17kg

Certification CE ISO9001, CE ISO

After-sales Service Provided No overseas service provided

Specifications

1. Small sizes heating plate suitable for printing labels and so on
2. Solid steel framework & stainless steel hardwares

Swing-Away ,Manual T-shirt Printing Machine HP230B

Specification:
Model No.	HP230B
Machine Type	Manual,Rotary Heat Press Machine
Controller	Digital Time & Temp. Controller
Voltage	110V/220V
Power	600W
Time Range	0-999sec.
Max. Temp.	245°C (473°F)
Printing Area	230mm x 300mm(9" x 12")
Swing-away	Yes
Gross Weight	17kg
Package Size	450mm x 410mm x 370mm(18"x 16"x 15")

Application:
T-shirt, Puzzle, Mouse Pad, Metal Board, Coaster, Slipper, Bag, Cushion, etc.

Features:
1. Solid steel framework & stainless steel hardwares
2. Fully digital temperature & Time control
3. Automatic Alarm,Temperature & Time recycle
4. Teflon-coated thick heating platen, speed & even heater technology
5. Suitable for small format heat press
6. Heat & pressure averaged, enable for high demand heat press

Strict Quality Control:
1. Each single heating rod is tested before being casted in an aluminum alloy.
2. Each single digital time & temp control is tested before assembling.
3. All heat press pass high temp. test (200°C) for at least 20 minutes before packing.

Xinhong's Promises:
Xinhong's original intention is to support any of our customers, could deal with their heat
transfer business without interruptions. So Xinhong offers FREE SPARE PARTS with quantity
order and the following warranty:
1. Free life-time technical support on all heat press.
2. One-year warranty on entire press machine & spare.
3. Five-year warranty on castings, welds.
4. Five-year warranty on heating plate.
5. Six-month warranty on mug, plate, cap heat press machine.
