UCP209 Dyzv Bearing

UCP209 Dyzv Bearing thumbnail-1
UCP209 Dyzv Bearing photo-1
US$ 0.5 - 300 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Bore Size:
5, 300
Brand Name:
HHZC
Model Number:
UCP209
Contact Supplier Request Quote Chat Now
Nantong Haihui Bearing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Bore Size 5, 300
Brand Name HHZC
Model Number UCP209
Place of Origin Jiangsu, China

Pillow block bearing is a kind of bearing that looks like a small ball bearing that has a casting pedestal or a pressed steel plate and a double seal. If you will look closely inside it, you will see that the pillow block bearings is very much the same as the other kinds of bearing like the deep groove ball bearings. The only difference is that is you will look closely at the outer ring of the pillow block bearings, you can see that it has section balls which is best use with the concave part of the bearing pedestal.



Pillow blocks are usually mounted in cleaner environments & generally are meant for lesser loads of general industry. These differ from "plummer blocks" which are bearing housings supplied without any bearings & are usually meant for higher load ratings & corrosive industrial environments. However the terms pillow-block & plummer-block are used interchangeably in certain parts of the world



Product information:

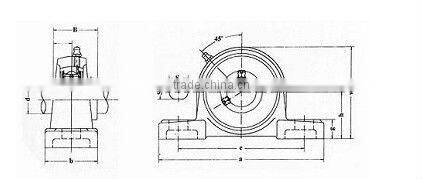

UCP209 dyzv bearing

Bearing
No.		 Dimensions mm
inch		 Bolt Size
mm
inch		 Weight
Kg
d h a e b S1 S2 g w b n

UCP201

 12 30.2 127 95 38 13 19 14 62 31 12.7 M10 0.69

UCP201-8

 1/2 1-3/1/6 5 3-3/4 1-1/2 1/2 3/4 9/16 2-7/16 1.2205 0.500 3/8 0.69

UCP202

 15 30.2 127 95 38 13 19 14 62 31 12.7 M10 0.69

UCP202-9

 9/16 1-3/1/6 5 3-3/4 1-1/2 1/2 3/4 9/16 2-7/16 1.2205 0.500 3/8 0.69

UCP202-10

 5/8 0.69

UCP203

 17 30.2 127 95 38 13 19 14 62 31 12.7 M10 0.68

UCP203-11

 11/16 1-3/16 5 3-3/4 1-1/2 1/2 3/4 9/16 2-7/16 1.2205 0.500 3/8 0.67

UCP204

 20 33.3 127 95 38 13 19 14 65 31 12.7 M10 0.66

UCP204-12

 3/4 1-5/16 5 3-3/4 1-1/2 1/2 3/4 9/16 2-9/16 1.2205 0.500 3/8 0.66

UCP205

 25 36.5 140 105 38 13 19 15 71 34.1 14.3 M10 0.81

UCP205-13

 13/16 1-7/16 5-1/2 4-1/8 1-1/2 1/2 3/4 19/32 2-25/32 1.3425 0.563 3/8 0.85

UCP205-14

 7/8 0.83

UCP205-15

 15/16 0.82

UCP205-16

 1 0.81

UCP206

 30 42.9 165 121 48 17 20 17 84 38.1 15.9 M14 1.24

UCP206-17

 1-1/16 1-11/16 6-1/2 4-3/4 1-7/8 43/64 25/32 21/32 3-5/16 1.5 0.626 1/2 1.27

UCP206-18

 1-1/8 1.26

UCP206-19

 1-3/16 1.24

UCP206-20

 1-1/4 1.23

UCP207

 35 47.6 167 127 48 17 20 18 93 42.9 17.5 M14 1.58

UCP207-20

 1-1/4 1-7/8 6-9/16 5 1-7/8 43/64 25/32 45/64 3-21/32 1.689 0.689 1/2 1.64

UCP207-21

 1-5/16 1.61

UCP207-22

 1-3/8 1.58

UCP207-23

 1-7/16 1.55

UCP208

 40 49.2 184 137 54 17 20 18 100 49.2 19 M14 1.89

UCP208-24

 1-1/2 1-15/16 7-1/4 5-13/32 2-1/8 43/64 25/32 45/64 3-15/16 1.937 0.748 1/2 1.93

UCP208-25

 1-9/16 1.9

UCP209

 45 54.0 190 146 54 17 20 20 106 49.2 19 M14 2.14

UCP209-26

 1-5/8 2-1/8 7-15/32 5-3/4 2-1/8 43/64 25/32 25/32 4-11/64 1.937 0.748 1/2 2.24

UCP209-27

 1-11/16 2.2

UCP209-28

 1-3/4 2.14

UCP210

 50 57.2 206 159 60 20 23 21 113 51.6 19 M16 2.66

UCP210-29

 1-13/16 2-1/4 8-1/8 6-1/4 2-3/8 25/32 29/32 53/64 4-29/64 2.0315 0.748 5/8 2.78

UCP210-30

 1-7/8 2.73

UCP210-31

 1-15/16 2.68

UCP210-32

 2 2.64

UCP211

 55 63.5 219 171 60 20 23 23 125 55.6 22.2 M16 3.31

UCP211-32

 2 2-1/2 8-5/8 6-47/64 2-3/8 25/32 29/32 29/32 4-59/64 2.189 0.874 5/8 3.46

UCP211-33

 2-1/16 3.4

UCP211-34

 2-1/8 3.35

UCP211-35

 2-3/16 3.29

UCP212

 60 69.8 241 184 70 20 23 25 138 65.1 25.4 M16 4.9

UCP212-36

 2-1/4 2-3/4 9-1/2 7-1/4 2-3/4 25/32 29/32 63/64 5-7/16 2.563 1.000 5/8 5.03

UCP212-37

 2-5/16 4.95
UCP212-38 2-3/8 4.88
UCP212-39 2-7/16 1.81
UCP213 65 76.2 265 204 70 25 28 27 150 65.1 25.4 M20 5.15
UCP213-40 2-1/2 3 10-7/16 3 2-3/4 63/64 1-3/32 1-1/16 5-29/32 2.563 1.000 3/4 5.24
UCP213-41 2-9/16 5.15
UCP214 70 79.4 266 210 72 25 28 27 156 74.6 30.2 M20 6.2
UCP214-42 2-5/8 3-1/8 10-15/32 8-17/64 2-27/32 63/64 1-3/32 1-1/16 6-9/64 2.937 1.189 3/4 6.41
UCP214-43 2-11/16 6.31
UCP214-44 2-3/4 6.21
UCP215 75 82.6 275 217 74 25 28 28 162 77.8 33.3 M20 7.16
UCP215-45 2-13/16 3-1/4 10-53/64 8-35/64 2-29/32 63/64 1-3/32 1-3/32 6-3/8 3.063 1.311 3/4 7.41
UCP215-46 2-7/8 7.3
UCP215-47 2-15/16 7.19
UCP215-48 3 7.07
UCP216 80 88.9 292 232 78 25 28 30 174 82.6 65.1 M20 8.1
UCP216-49 3-1/16 3-1/2 11-1/2 9-1/8 3-1/16 63/64 1-3/32 1-3/16 6-27/32 3.252 2.563 3/4 8.28
UCP216-50 3-1/8 8.15
UCP216-51 3-3/16 8.02
UCP217 85 95.2 310 247 83 25 28 32 185 85.7 34.1 M20 9.81
UCP217-52 3-1/14 3-3/4 12-13/64 9-23/32 3-17/64 63/64 1-3/32 1-1/4 7-9/32 3.374 1.343 3/4 10.03
UCP217-53 3-5/16 9.89
UCP217-55 3-7/16 9.6
UCP218 90 101.6 327 262 88 27 30 33 198 96 39.7 M20 11.96
UCP218-56 3-1/2 4 12-7/8 10-5/16 3-15/32 1-1/16 1-3/16 1-19/64 7-51/64 3.7795 1.563 3/4 12.07



Work Shop:

UCP209 dyzv bearingUCP209 dyzv bearingUCP209 dyzv bearing



Canton Fair Show:

UCP209 dyzv bearing
