UCP204 half bearing

FOB Price

USD $0.5 - $300 / Piece

100 Pieces(Min.Order)

Supply Ability 300000 Piece / Pieces per Month
Port Shanghai or Ningbo
Payment TermsT/T D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Bore Size	5, 300		Brand Name	HHZC
Model Number	UCP203		Place of Origin	Jiangsu, China

Product Description

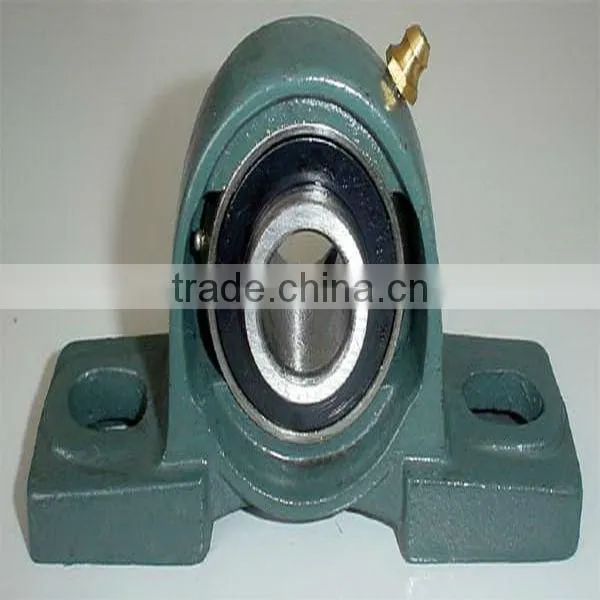

Pillow block bearing is a kind of bearing that looks like a small ball bearing that has a casting pedestal or a pressed steel plate and a double seal. If you will look closely inside it, you will see that the pillow block bearings is very much the same as the other kinds of bearing like the deep groove ball bearings. The only difference is that is you will look closely at the outer ring of the pillow block bearings, you can see that it has section balls which is best use with the concave part of the bearing pedestal.

Pillow blocks are usually mounted in cleaner environments & generally are meant for lesser loads of general industry. These differ from "plummer blocks" which are bearing housings supplied without any bearings & are usually meant for higher load ratings & corrosive industrial environments. However the terms pillow-block & plummer-block are used interchangeably in certain parts of the world

Product information:

Bearing No.	Dimensions mm inch											Bolt Size mm inch	Weight Kg


	d	h	a	e	b	S1	S2	g	w	b	n
UCP201	12	30.2	127	95	38	13	19	14	62	31	12.7	M10	0.69
UCP201-8	1/2	1-3/1/6	5	3-3/4	1-1/2	1/2	3/4	9/16	2-7/16	1.2205	0.500	3/8	0.69
UCP202	15	30.2	127	95	38	13	19	14	62	31	12.7	M10	0.69
UCP202-9	9/16	1-3/1/6	5	3-3/4	1-1/2	1/2	3/4	9/16	2-7/16	1.2205	0.500	3/8	0.69
UCP202-10	5/8	1-3/1/6	5	3-3/4	1-1/2	1/2	3/4	9/16	2-7/16	1.2205	0.500	3/8	0.69
UCP203	17	30.2	127	95	38	13	19	14	62	31	12.7	M10	0.68
UCP203-11	11/16	1-3/16	5	3-3/4	1-1/2	1/2	3/4	9/16	2-7/16	1.2205	0.500	3/8	0.67
UCP204	20	33.3	127	95	38	13	19	14	65	31	12.7	M10	0.66
UCP204-12	3/4	1-5/16	5	3-3/4	1-1/2	1/2	3/4	9/16	2-9/16	1.2205	0.500	3/8	0.66
UCP205	25	36.5	140	105	38	13	19	15	71	34.1	14.3	M10	0.81
UCP205-13	13/16	1-7/16	5-1/2	4-1/8	1-1/2	1/2	3/4	19/32	2-25/32	1.3425	0.563	3/8	0.85
UCP205-14	7/8												0.83
UCP205-15	15/16												0.82
UCP205-16	1												0.81
UCP206	30	42.9	165	121	48	17	20	17	84	38.1	15.9	M14	1.24
UCP206-17	1-1/16	1-11/16	6-1/2	4-3/4	1-7/8	43/64	25/32	21/32	3-5/16	1.5	0.626	1/2	1.27
UCP206-18	1-1/8												1.26
UCP206-19	1-3/16												1.24
UCP206-20	1-1/4												1.23
UCP207	35	47.6	167	127	48	17	20	18	93	42.9	17.5	M14	1.58
UCP207-20	1-1/4	1-7/8	6-9/16	5	1-7/8	43/64	25/32	45/64	3-21/32	1.689	0.689	1/2	1.64
UCP207-21	1-5/16												1.61
UCP207-22	1-3/8												1.58
UCP207-23	1-7/16												1.55
UCP208	40	49.2	184	137	54	17	20	18	100	49.2	19	M14	1.89
UCP208-24	1-1/2	1-15/16	7-1/4	5-13/32	2-1/8	43/64	25/32	45/64	3-15/16	1.937	0.748	1/2	1.93
UCP208-25	1-9/16	1-15/16	7-1/4	5-13/32	2-1/8	43/64	25/32	45/64	3-15/16	1.937	0.748	1/2	1.9
UCP209	45	54.0	190	146	54	17	20	20	106	49.2	19	M14	2.14
UCP209-26	1-5/8	2-1/8	7-15/32	5-3/4	2-1/8	43/64	25/32	25/32	4-11/64	1.937	0.748	1/2	2.24
UCP209-27	1-11/16												2.2
UCP209-28	1-3/4												2.14
UCP210	50	57.2	206	159	60	20	23	21	113	51.6	19	M16	2.66
UCP210-29	1-13/16	2-1/4	8-1/8	6-1/4	2-3/8	25/32	29/32	53/64	4-29/64	2.0315	0.748	5/8	2.78
UCP210-30	1-7/8												2.73
UCP210-31	1-15/16												2.68
UCP210-32	2												2.64
UCP211	55	63.5	219	171	60	20	23	23	125	55.6	22.2	M16	3.31
UCP211-32	2	2-1/2	8-5/8	6-47/64	2-3/8	25/32	29/32	29/32	4-59/64	2.189	0.874	5/8	3.46
UCP211-33	2-1/16												3.4
UCP211-34	2-1/8												3.35
UCP211-35	2-3/16												3.29
UCP212	60	69.8	241	184	70	20	23	25	138	65.1	25.4	M16	4.9
UCP212-36	2-1/4	2-3/4	9-1/2	7-1/4	2-3/4	25/32	29/32	63/64	5-7/16	2.563	1.000	5/8	5.03
UCP212-37	2-5/16												4.95
UCP212-38	2-3/8												4.88
UCP212-39	2-7/16												1.81
UCP213	65	76.2	265	204	70	25	28	27	150	65.1	25.4	M20	5.15
UCP213-40	2-1/2	3	10-7/16	3	2-3/4	63/64	1-3/32	1-1/16	5-29/32	2.563	1.000	3/4	5.24
UCP213-41	2-9/16	3	10-7/16	3	2-3/4	63/64	1-3/32	1-1/16	5-29/32	2.563	1.000	3/4	5.15
UCP214	70	79.4	266	210	72	25	28	27	156	74.6	30.2	M20	6.2
UCP214-42	2-5/8	3-1/8	10-15/32	8-17/64	2-27/32	63/64	1-3/32	1-1/16	6-9/64	2.937	1.189	3/4	6.41
UCP214-43	2-11/16												6.31
UCP214-44	2-3/4												6.21
UCP215	75	82.6	275	217	74	25	28	28	162	77.8	33.3	M20	7.16
UCP215-45	2-13/16	3-1/4	10-53/64	8-35/64	2-29/32	63/64	1-3/32	1-3/32	6-3/8	3.063	1.311	3/4	7.41
UCP215-46	2-7/8												7.3
UCP215-47	2-15/16												7.19
UCP215-48	3												7.07
UCP216	80	88.9	292	232	78	25	28	30	174	82.6	65.1	M20	8.1
UCP216-49	3-1/16	3-1/2	11-1/2	9-1/8	3-1/16	63/64	1-3/32	1-3/16	6-27/32	3.252	2.563	3/4	8.28
UCP216-50	3-1/8												8.15
UCP216-51	3-3/16												8.02
UCP217	85	95.2	310	247	83	25	28	32	185	85.7	34.1	M20	9.81
UCP217-52	3-1/14	3-3/4	12-13/64	9-23/32	3-17/64	63/64	1-3/32	1-1/4	7-9/32	3.374	1.343	3/4	10.03
UCP217-53	3-5/16												9.89
UCP217-55	3-7/16												9.6
UCP218	90	101.6	327	262	88	27	30	33	198	96	39.7	M20	11.96
UCP218-56	3-1/2	4	12-7/8	10-5/16	3-15/32	1-1/16	1-3/16	1-19/64	7-51/64	3.7795	1.563	3/4	12.07

Work Shop:

Canton Fair Show:
