Help CenterLM8UU Linear Bearing
US$ 0.5 - 100
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Brand Name:
HHZC
Precision Rating:
ABEC-1, P0
Model Number:
LM8UU
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo or Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Brand Name
HHZC
Precision Rating
ABEC-1, P0
Model Number
LM8UU
Place of Origin
Zhejiang, China
Product Information:
Application:
They are widely used in electronic aid, tension tester, digitized three dimensional coordinate measurement system, and slide unit of multispindle, machine
punch, grinders, automatic gas cutting machine, printer, card cull eliminator, food packaging machinery etc

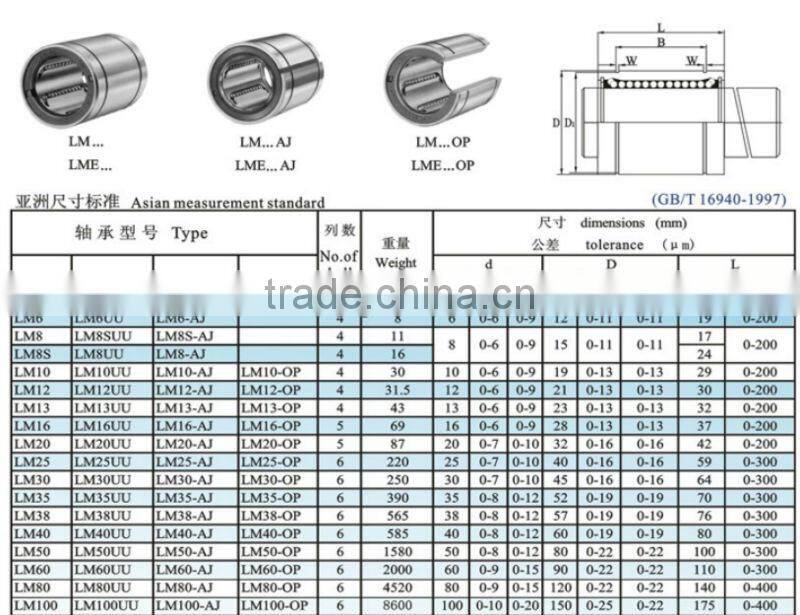

| Model | NO.of row | Inner size | Outer size | Length | Snapring groove | ||
| dr | D | L | B | D1 | W | ||
| LM6UU | 4 | 6 | 12 | 19 | 13.5 | 11.5 | 1.1 |
| LM8UU | 4 | 8 | 15 | 17 | 11.5 | 14.3 | 1.1 |
| LM8UU | 4 | 8 | 15 | 24 | 17.5 | 14.3 | 1.1 |
| LM10UU | 4 | 1 0 | 19 | 29 | 22 | 18 | 1.3 |
| LM12UU | 4 | 1 2 | 21 | 30 | 23 | 20 | 1.3 |
| LM13UU | 4 | 1 3 | 23 | 32 | 23 | 22 | 1.3 |
| LM16UU | 5 | 1 6 | 28 | 37 | 26.5 | 27 | 1.6 |
| LM20UU | 5 | 2 0 | 32 | 42 | 30.5 | 30.5 | 1.6 |
| LM25UU | 6 | 2 5 | 40 | 59 | 41 | 38 | 1.85 |
| LM30UU | 6 | 3 0 | 45 | 64 | 44.5 | 43 | 1.85 |
| LM35UU | 6 | 3 5 | 52 | 70 | 49.5 | 49 | 2.1 |
| LM40UU | 6 | 4 0 | 60 | 80 | 60.5 | 57 | 2.1 |
| LM50UU | 6 | 5 0 | 80 | 100 | 74 | 76.5 | 2.6 |
| LM60UU | 6 | 6 0 | 90 | 110 | 85 | 86.5 | 3.15 |
| LME8UU | 4 | 8 | 16 | 25 | 16.5 | 15.2 | 1.1 |
| LME10UU | 4 | 1 0 | 19 | 29 | 22 | 18 | 1.3 |
| LME12UU | 4 | 1 2 | 22 | 32 | 22.9 | 21 | 1.3 |
| LME16UU | 5 | 1 6 | 26 | 36 | 24.9 | 24.9 | 1.3 |
| LME20UU | 5 | 2 0 | 32 | 45 | 31.5 | 30.3 | 1.6 |
| LME25UU | 6 | 2 5 | 40 | 58 | 44.1 | 37.5 | 1.85 |
| LME30UU | 6 | 3 0 | 47 | 68 | 52.1 | 44.5 | 1.85 |
| LME40UU | 6 | 4 0 | 62 | 80 | 60.6 | 59 | 2.15 |
| LME50UU | 6 | 5 0 | 75 | 100 | 77.6 | 72 | 2.65 |
| LME60UU | 6 | 6 0 | 90 | 125 | 101.7 | 86.5 | 3.15 |

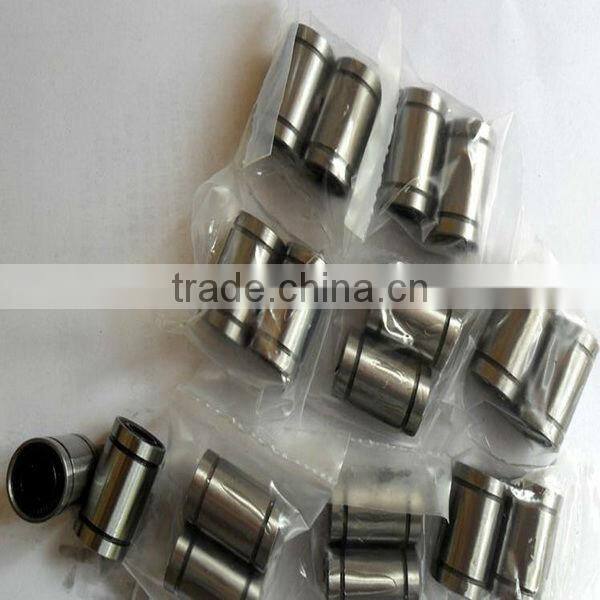

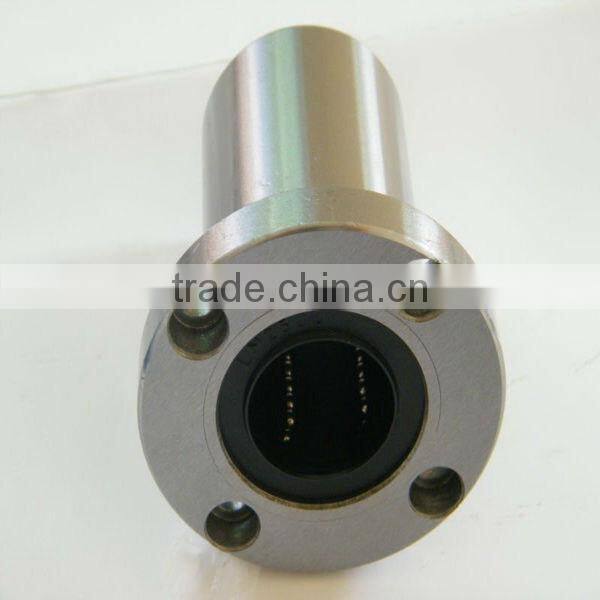

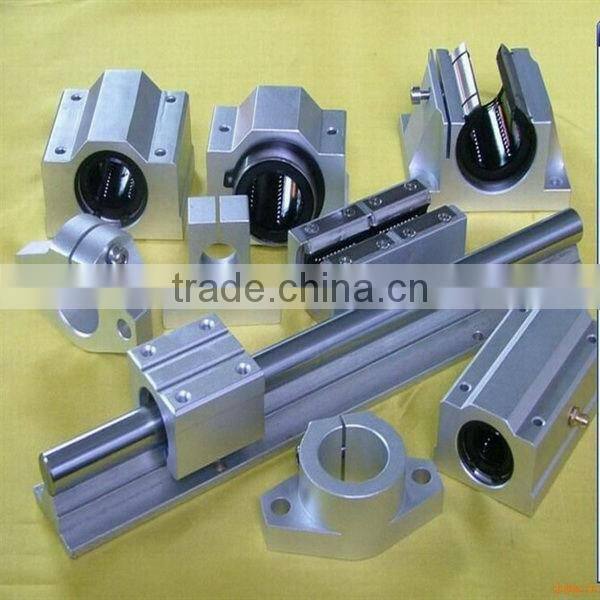

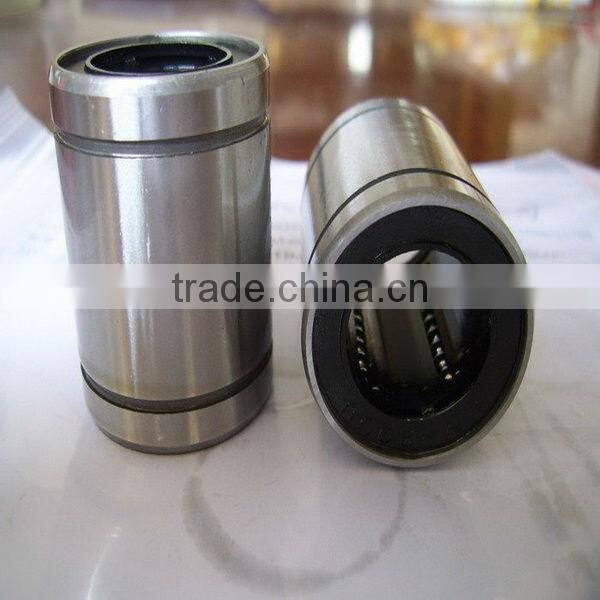

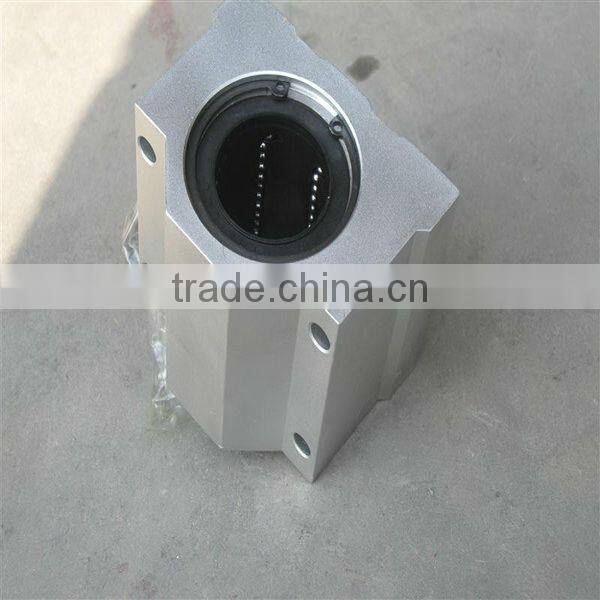

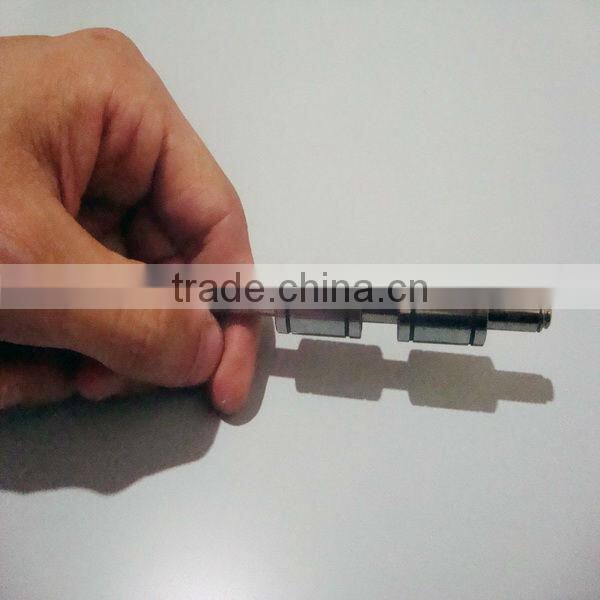

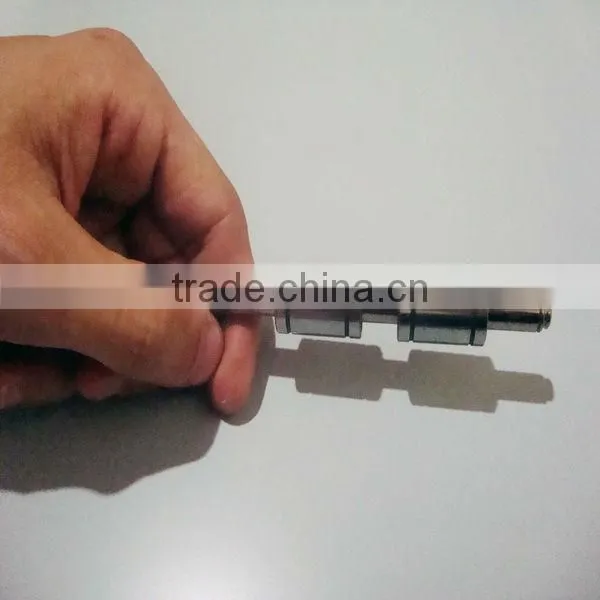

Product picture:
Workshop:
Canton Fair Show:
