AUSSIE BUILD QUALITY CAMPER TRAILER !
110% OFF ROAD-- ALL TERRAIN CAMPER TRAILER
DELUXE OFF ROAD HARD FLOOR CAMPER TRAILER ----- X-MAN (COMPLY WITH ADR & VSB)
Fully sealed , 100% water & dust proof and Anti-rust
Performance Parameter
Tare Mass(Kg) 1300 ATM(Kg) 2000
Wheel Base(mm) 3100 Angel of departure(degree) 27º
Coupling strength(Kg) 2000 People living number: 4~5
Ground clearance(mm) 567 Rear overhang (mm) 1210
Wheel track (mm) 1600 (Same wheeltrack with Toyota PRADO)
Overall measurements(mm) 4950x1850x1580 (LxWxH)
Body measurements(mm) 2245x1750x610 (LxWxH)
Basic configuration
Chassis
Material: RHS100x50x4mm 100x100x4mm 50x50x4mm
Fully welded and Fully hot dip galvanized chassis and frame
10 inch solid swing up jockey wheel
3x 265/70R16 off road alloy wheel with brand new tyre
Spare wheel under Chassis with winch to drop down
Frame
Material: SHS25x25x3mm 40x40x4mm Angel steel 40x5mm Flat bar
2mm steel plate 70x50x5 Angel steel
Off road overrun couplings with free rotate polyblock hitch
Gas struts assisted SS floor holder with 4 adjustable stabilizer legs
Aluminum check plate floor with pvc anti-smooth leather
Three popular Steel latches on each side to seal the top floor
Suspension
Strong independent coil spring suspension
With double action shock absorbers
Eccentric bolt for wheel toe-in & toe-out adjust
Nylon band restrain for coil spring over rebound
Brake
10 inch electric drum brakes with mannual SS cable brake
6 studs steel hub with PCD 139.7mm
10mm thick safety chain with certified Stamp
2000kg Parallel bearings & front Hand Brake
Full Off road 4x4 360 Degree Hitch inc towbar connection (2000kg rated)

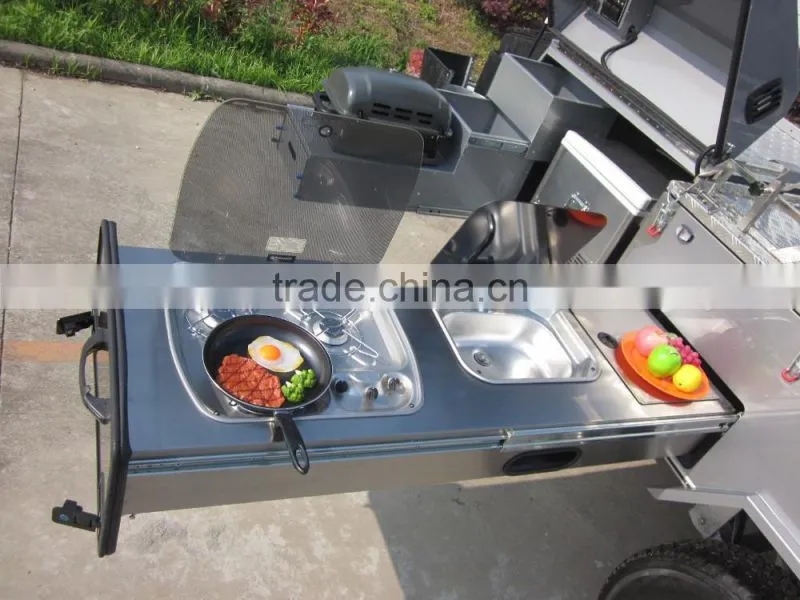

Kitchen /Water Circuit

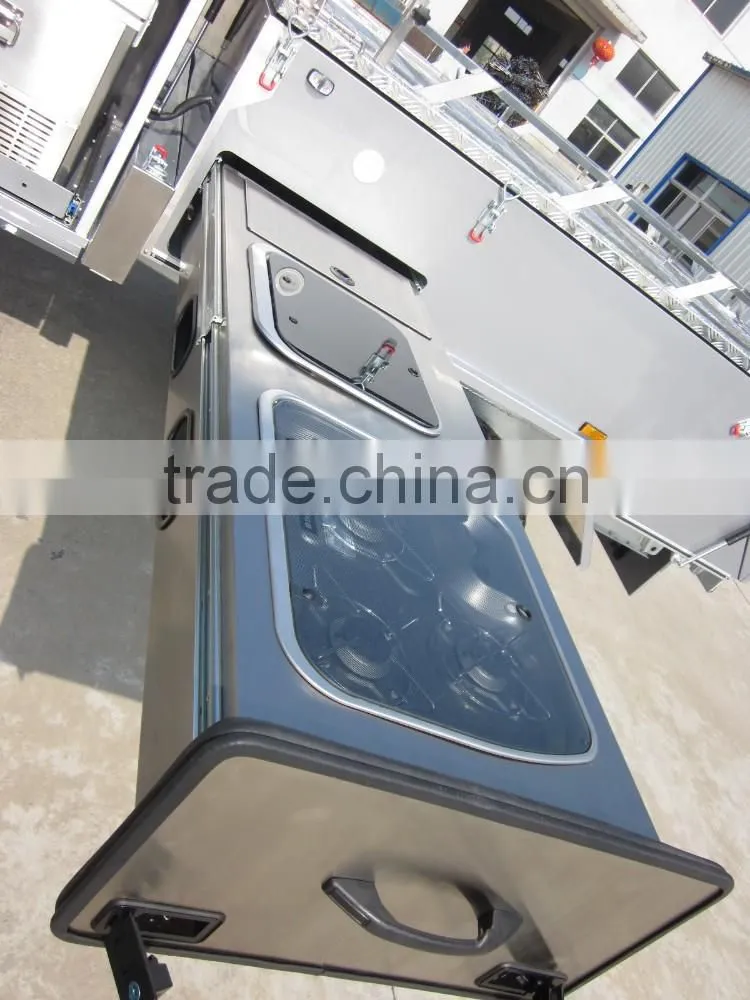

Full stainless steel external slide out sink holder,1500mm long
135L stainless steel water tank with food-qaulity approved water pipe
Copper tap for water outlet for hand wash
12V ele-water pump and copper tri-connector for water pipe
76mm wild heavy duty slid and SS water sink
Internal

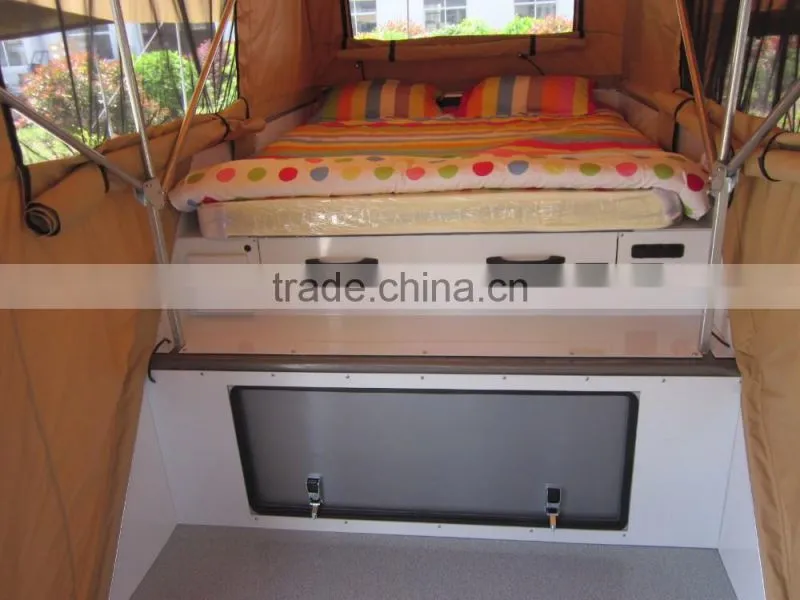

1650x1950mm large queen size mattress inner spring @ 120mm thick
Lift up bed with gas struts
Very big side out drawer 1200x1100x140mm (184Liters)
4mm Aluminum decoration plate with white powder coating
2x bags of bed each side for storage
3 YEAR CHASSIS WARRANTY
Electric Circuit
Battery isolator (off /on)
50ampAnderson plug & round 7pin plug
2x Marine water proof switch panel
2x12 volt twin CIG outlet & USB outlet
Voltage meter & Water indicator&sensor
12V water pump& locakable water filler
LED tail light & side marker & number plate light
2x Inner bed led reading lights
1x LED kitchen light & x 1Led tent light & 3 box light
All joints complete soldered & sealed
Tent
370gsq(14OZ) plain canvas 100% water proof
Midge mesh screens and windows
Fully enclosed awning with walls extends over drawbar area
1.8m wide kid’s room with PVC floor (Optional)
2.3m wide enclosed annex tent with PE floor
All Galvinized poles & Guy rope & pegs & annex bags
Front big Gull Wing Box
Full box is made by 2mm thick Alloy/Aluminum sheet
1750x1120x700mm (1200 Liters capacity)
Left Side: BBQ holder & Fridge holder & 3 storage drawer
Right side: Generator holder & battery charge room + big storage room + fire extinguisher
Heavy duty slid 76mm wide can hold 220 KG with lock
Exghaust fan for fridge and Marine switch boar with 4x 12V accessory socket ,LED overhand band

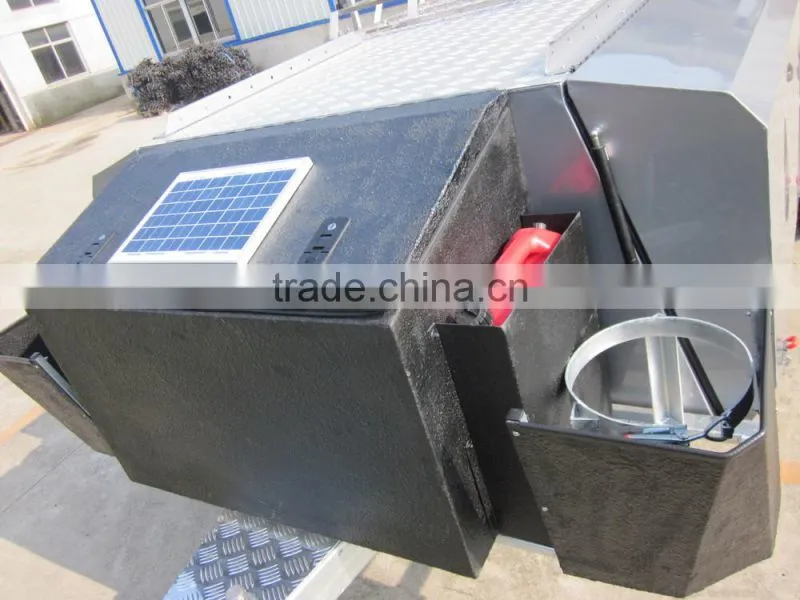

Front storage box
2 mm thick Alloy/Aluminum sheet and rubber spray for box out surface and stone guard
940x 500x 700mm (330 Liters campacity)
12v x 6w solar panel on lid for battery charge
10L x2 Alloy Jerrycan holder & 2x 5KG HDG gas bottle holder on each side & 2x10 Liters Jerrycan include
We have professional design team, DIY your camper trailer ,we meet your requirement.
Our camper trailer is fully equipped, we can bought all you wanted camping parts at here, you donot need do extra assembing work there after you got it.
Just take your wife & kids and drive away for holiday camping, enjoy nature and sunshine!
