AUSSIE BUILD QAULITY CAMPER TRAILER !
110% OFF ROAD ALL TERRAIN / ADR & VSB
Performance Parameter
Tare Mass(Kg) 1300
ATM(Kg) 2000
Wheel Base(mm) 3100
Angel of departure(degree) 27º
Coupling strength(Kg) 2000
People living number: 4~5
Ground clearance(mm) 567
Rear overhang (mm) 1210
Wheel track (mm) 1600 (Same wheeltrack with Toyota PRADO)
Overall measurements(mm) 4950x1850x1580 (LxWxH)
Body measurements(mm) 2245x1750x610 (LxWxH)
Basic configuration
Chassis Material: RHS100x50x4mm 100x100x4mm 50x50x4mm
Fully welded and Fully hot dip galvanized chassis and frame
10 inch solid swing up jockey wheel 3x 265/70R16 off road alloy wheel with brand new tyre
Spare wheel under Chassis with winch to drop down
Frame Material: SHS25x25x3mm 40x40x4mm Angel steel 40x5mm
Flat bar 2mm steel plate 70x50x5 Angel steel
Off road overrun couplings with free rotate polyblock hitch
Gas struts assisted SS floor holder with 4 adjustable stabilizer legs

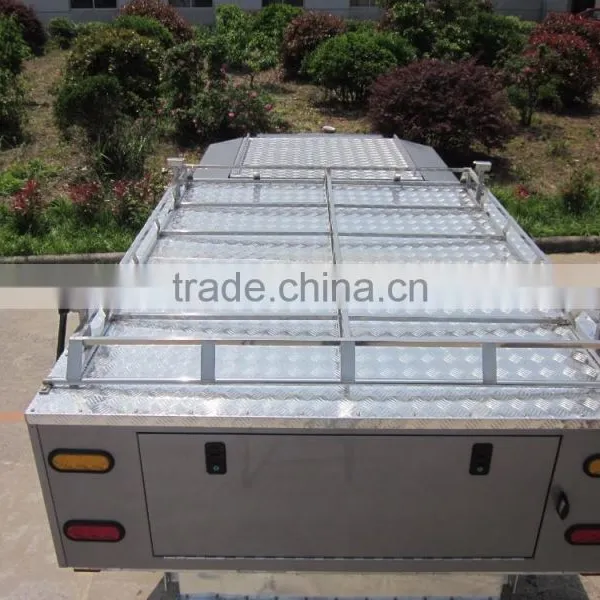

Aluminum check plate floor with pvc anti-smooth leather
Three popular Steel latches on each side to seal the top floor
Suspension
Strong independent coil spring suspension With double action shock absorbers
Eccentric bolt for wheel toe-in & toe-out adjust
Nylon band restrain for coil spring over rebound Brake
10 inch electric drum brakes with mannual SS cable brake
6 studs steel hub with PCD 139.7mm 10mm thick safety chain with certified Stamp 2000kg
Parallel bearings & front Hand Brake
Full Off road 4x4 360 Degree Hitch inc towbar connection (2000kg rated)

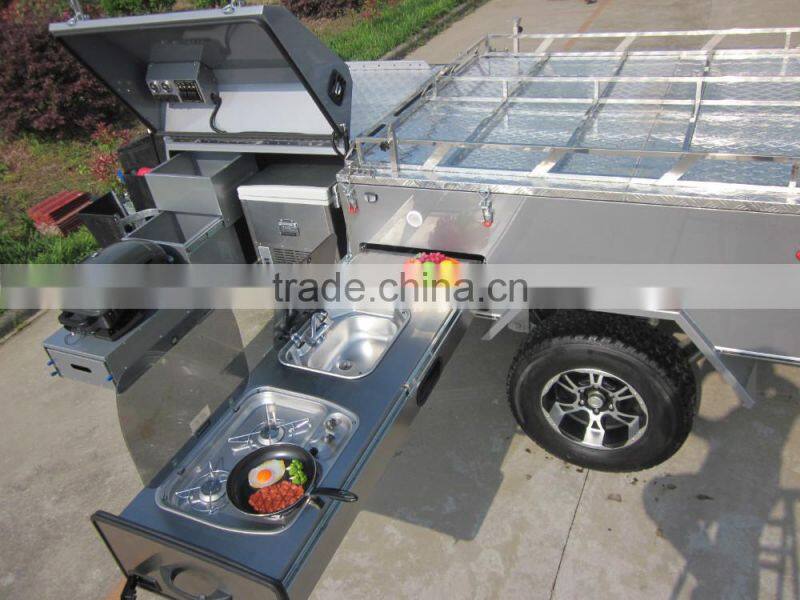

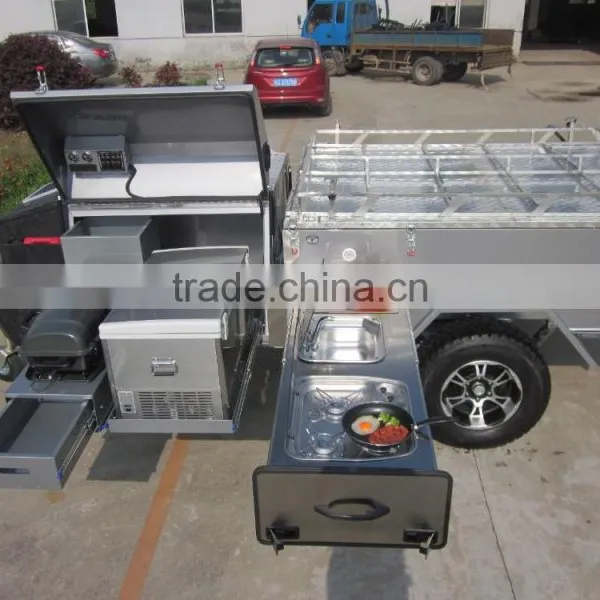

Kitchen /Water Circuit

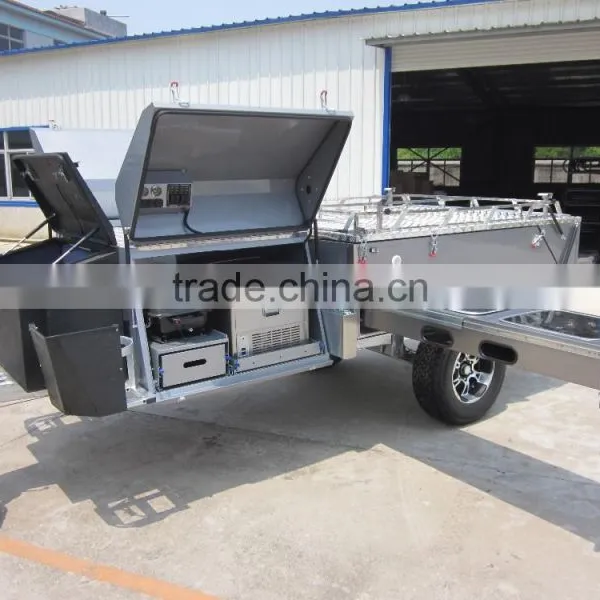

Full stainless steel external slide out sink holder,1500mm long
135L stainless steel water tank with food-qaulity approved water pipe Copper tap for water outlet for hand wash
12V ele-water pump and copper tri-connector for water pipe
76mm wild heavy duty slid and SS water sink

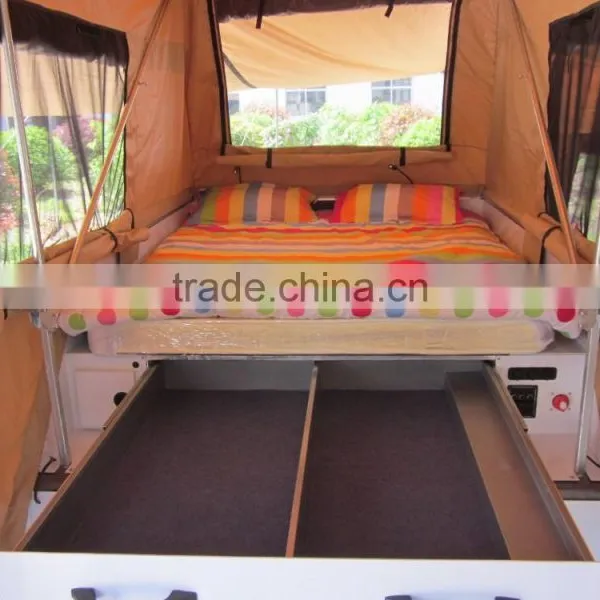

Internal

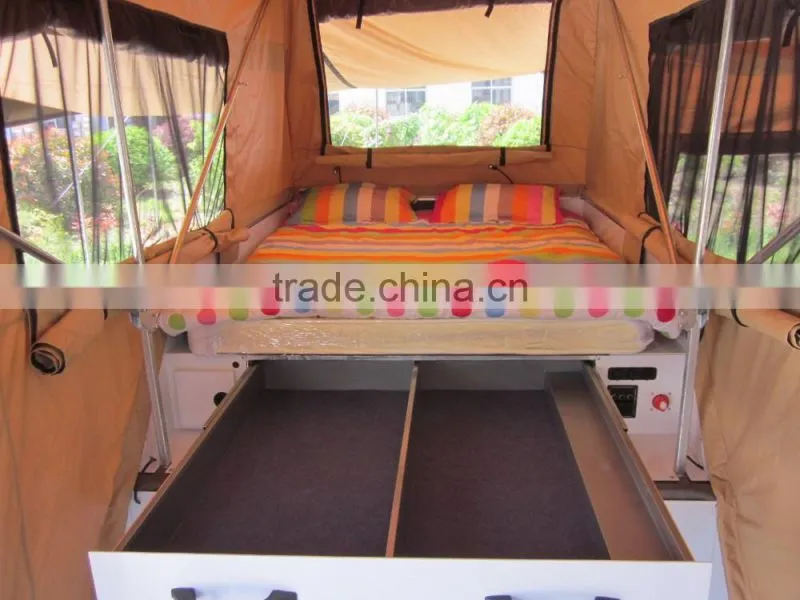

1650x1950mm large queen size mattress inner spring @ 120mm thick
Lift up bed with gas struts
Very big side out drawer 1200x1100x140mm (184Liters) 4mm
Aluminum decoration plate with white powder coating
2x bags of bed each side for storage
3 YEAR CHASSIS WARRANTY

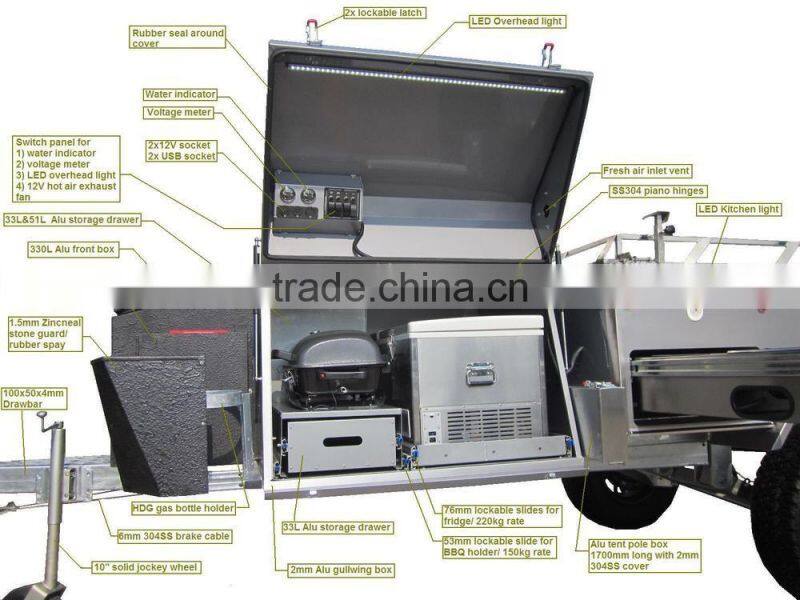

Electric Circuit
Battery isolator (off /on) 50amp
Anderson plug & round 7pin plug
2x Marine water proof switch panel
2x12 volt twin CIG outlet & USB outlet
Voltage meter & Water indicator&sensor
12V water pump& locakable water filler
LED tail light & side marker & number plate light
2x Inner bed led reading lights
1x LED kitchen light & x 1Led tent light & 3 box light All joints complete soldered & sealed

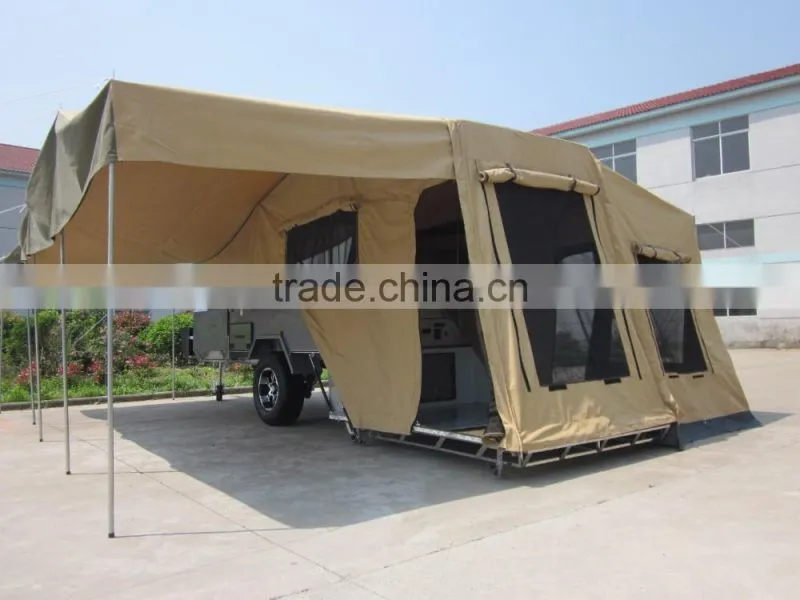

Tent
370gsq(14OZ) plain canvas 100% water proof
Midge mesh screens and windows
Fully enclosed awning with walls extends over drawbar area
1.8m wide kid’s room with PVC floor (Optional)
2.3m wide enclosed annex tent with PE floor
All Galvinized poles & Guy rope & pegs & annex bags
If you need more info, please feel free to contact me .
