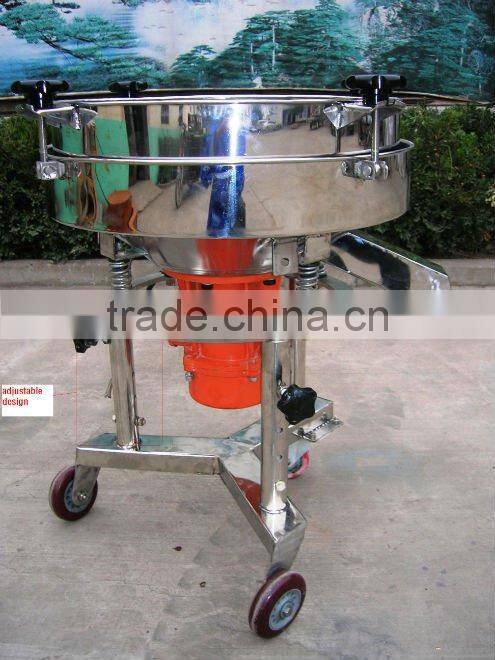

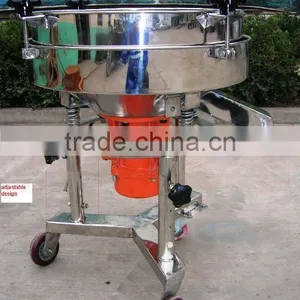

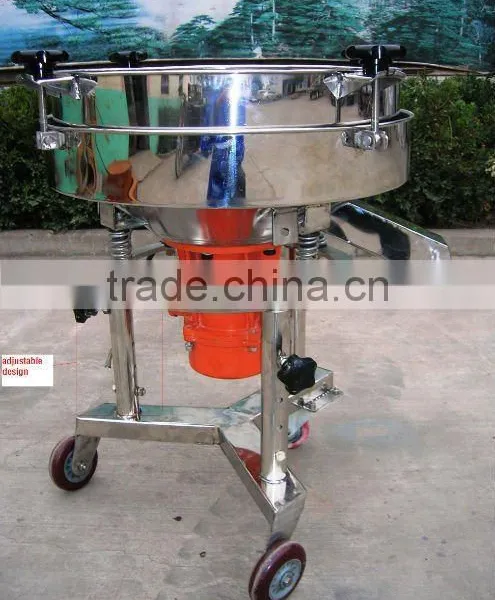

Help CenterHengyu Brand Multi-functional High Frequency Vibrating Screen
Related Products
-
Hengyu Brand Edged Series High Quality Circular Vibrating ScreenUS$ 1,150 - 3,500MOQ: 1 Set -
Linear Type Vibrating Sieve for PariclesUS$ 400 - 4,500MOQ: 1 Set
-
Vibrating Screen SeparatorUS$ 800 - 6,500MOQ: 1 Set
-
Drum Type Soil Screening MachineUS$ 600 - 4,500MOQ: 1 Set
-
Hot Selling Trommel Drum Screen for WaterUS$ 600 - 4,500MOQ: 1 Set
features of vibration screen:
Long Screen Life

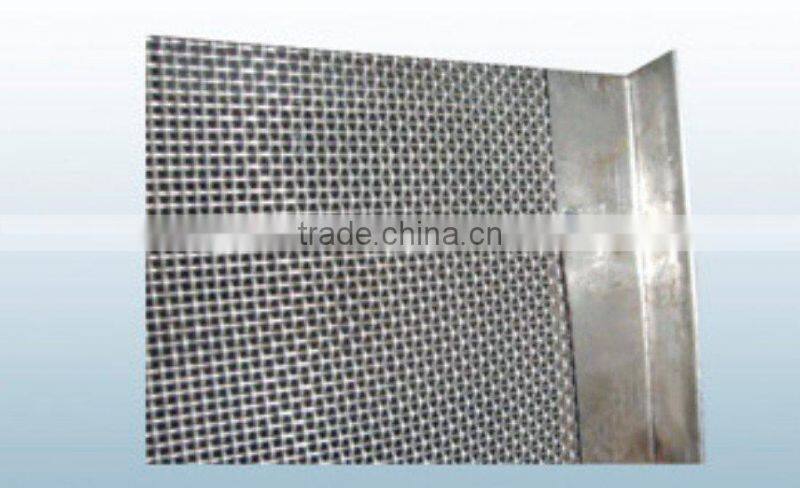

The screen cloth is held in the frame very tightly by a special process. This gives long life to the screen.
No Clogging of Screen
As the screen vibrates in multiplane hence the holes of the screen remain clear. Additional and blinding system is provided for difficult to screen and wet materials.
Compact Design
This screen occupies less than half the spaces as occupied by any other screen of same capacity.
ADOPTABILITY:
The discharge ports could be rotated and are most adoptable to your process needs.
LONGER SCREEN LIFE:
The screen cloth is held taut uniformly by tension rings. This arrangement enables clean screening, less screen wear and longer screen life.

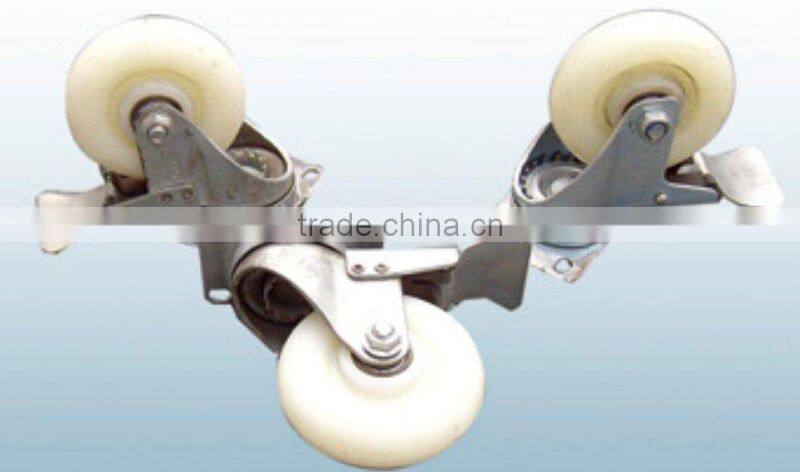

MOVABLE DESIGN
LOW ON POWER AND MAINTAINENCE / HIGH ON EFFICIENCY:
The design enables to utilize the vibratory force generated by the motor to the optimum and very few moving parts reduce the maintenance to minimum.
Technical Parameters of vibrating screen:
|
Model
|
Power(KW) |
Diameter of screen surface(mm) |
Largest vibration force(N) |
No. of screen layer |
|
HY-450
|
0.25 |
420 |
3000 |
1 |
|
HY-600
|
0.37 |
550 |
5000 |
1 |
|
HY-800
|
0.55 |
760 |
8000 |
1 |
|
HY-1000
|
0.75 |
930 |
10000 |
1 |
Special Note
Any calls / letter inquiries about vibrating screen, please also provide the following information to your enquiry to make prompt and accurate reply.
(1) Raw materials needed to deal with: the name, size, structure, the proportion of water, viscosity, temperature or others
(2) The purpose of: grade, filter, edulcoration
(3) Handling capacity: kg / hour or L / hr
(4) Screen Size (mesh or mm)
(5) Job running time
(6) Other special requirements, such as: temperature, resistance and other media.
Note: our factory can also provide customer with non-standard design according to your production process.
