China Stainless Steel Icing Sugar Vibrating Sieve Machine

China Stainless Steel Icing Sugar Vibrating Sieve Machine photo-1
US$ 1,000 - 7,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
HENG SHUN
Model Number:
HY-800-1S
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao or request
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Henan, China
Brand Name HENG SHUN
Model Number HY-800-1S
Type Grain Processing Equipment
After-sales Service Provided Engineers available to service machinery overseas



China stainless steel icing sugar vibrating sieve machine
Product details
China stainless steel icing sugar vibrating sieve machine
Name  vibrating sieve machine

Three

materials

1. Full stainless steel
2. Full carbon steel
3. The parts contact with material are stainless steel
Features

1. Unique screen flame design, easy to replace the screens.

2. Outlet of vibrating sieve machine can be adjusted to any direction as you need.

3. Small size, little space and easy to move.

4. Never jam the screen,  screen size can be up to 500 mesh or 0.028 mm.

5. Discharge the impurity and coarse materials automobile and operates continuously.

6. Having the warranty period, quality assured.

7. Passed ISO 9001:2008, CE and BV certificates.

Technical parameters

Model

Diameter

(mm)

Screen surface

Screen opening



Power

(KW)

Deck

Diameter

Area

(mm)

(m2)

HY-400

400

360

0.1017

5-500 mesh

0.18

1-4

HY-600

600

560

0.2461

0.25-0.55

1-4

HY-800

800

760

0.4534

0.55-0.75

1-4

HY-1000

1000

930

0.6789

0.75-1.5

1-4

HY-1200

1200

1130

1.0023

1.10-1.75

1-4

HY-1500

1500

1430

1.6052

1.50-2.20

1-4

HY-1800

1800

1730

2.3494

2.20-3.0

1-4



Function



♦ Dry separation
-Separation of different materials on the basis of their particle shape
-Foods, chemicals, pharmaceuticals, minerals, animal feeds, grains
♦ Dry classification
-Separation of solid particles into precise sized fractions
-Foods, chemicals, minerals and metals, pulp and wood products, pharmaceuticals, fertilizers, abrasives
♦ Solid-liquid separation
-Dewatering solids of liquids
-Foods, chemicals, pulp
♦ Solids classification in liquid medium
-Separation of solids into sized fraction in liquid medium
-Chemicals, minerals, pulp and paper, ceramics, waste disposal

Application



For usage in the following industries:
Food--Bakery ingredients, various powder, particles or liquid, such as flour, milk powder sugar, salt, starch, coffee, grain, juice
Chemical--Chemical powders or liquids, such as, rubber powder, metal powder, resin pigment, grease, paint palette etc.
Pharmaceuticals--Chinese medicine powder, injection, pharmacy liquids, health food.
Coatings-- Paints, magnetic pigment, resins, inks, dyes, etc.
High temperature applications - Cooking oils, Palm oil, resins, etc



Main market

With our advanced production equipment, strong technical force and modern detection means, strict management systems and good corporation honors,our sugar vibrating sieve machine are exported to North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, and Domestic Market.

After-sales service 12 months warranty period, engineers available to service machinery overseas
Terms payment of vibrating sieve machine
China stainless steel icing sugar vibrating sieve machine
payment: L/C, T/T, Western Union or Escrow
Port: Shanghai port or your request
MOQ: 1 set
Contact us
China stainless steel icing sugar vibrating sieve machine
My phone 86-150 8312 3796
Tel 86-373-3807161
Add No. 8 Hengyu Road, Middle of Qing long road, Xinxiang, Henan, China
Pictures of vibrating sieve machine
China stainless steel icing sugar vibrating sieve machine

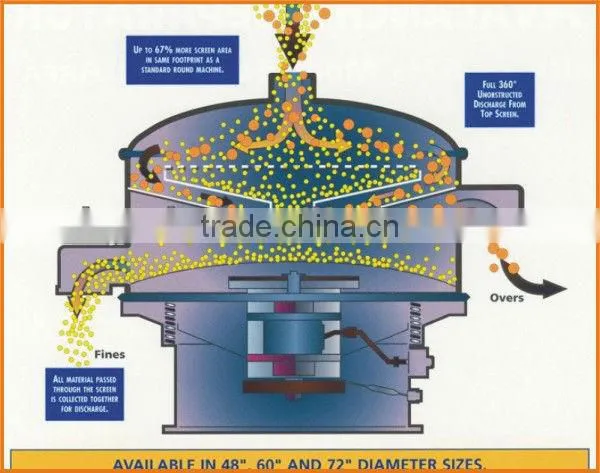

Structure China stainless steel icing sugar vibrating sieve machine
Function China stainless steel icing sugar vibrating sieve machine

Spare parts and machine pictures

China stainless steel icing sugar vibrating sieve machine

China stainless steel icing sugar vibrating sieve machine

China stainless steel icing sugar vibrating sieve machine

Main market China stainless steel icing sugar vibrating sieve machine
Other products  China stainless steel icing sugar vibrating sieve machine
Certificates China stainless steel icing sugar vibrating sieve machine

Which models of vibrating sieve machine are suitable for you?

China stainless steel icing sugar vibrating sieve machine

By telling us the following information to learn which models of round separator equipment

are suitable for you?



1. The name and feature of your raw material?

2. Aim of using: get rid of impurity, filtration or grading?

3. Handling capacity: kg /h, L/h?
4. Wire screen mesh size: (mesh or mm)?



We can design the round vibrating sieve machine according to your requirement,

Contact us now.

China stainless steel icing sugar vibrating sieve machine
