Flour sieves

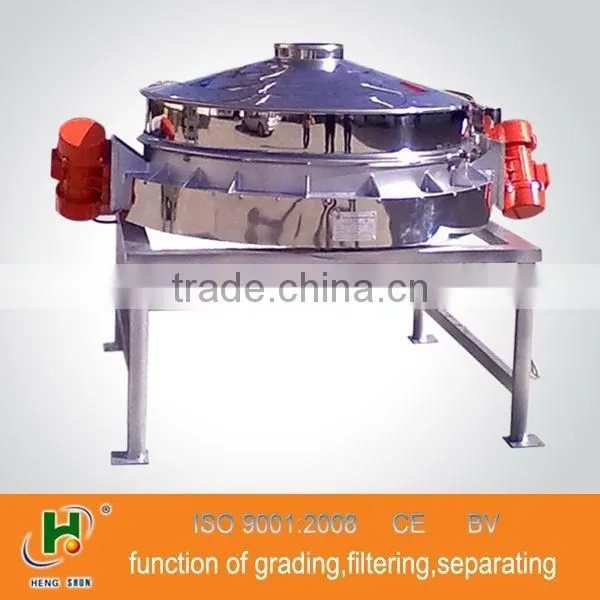

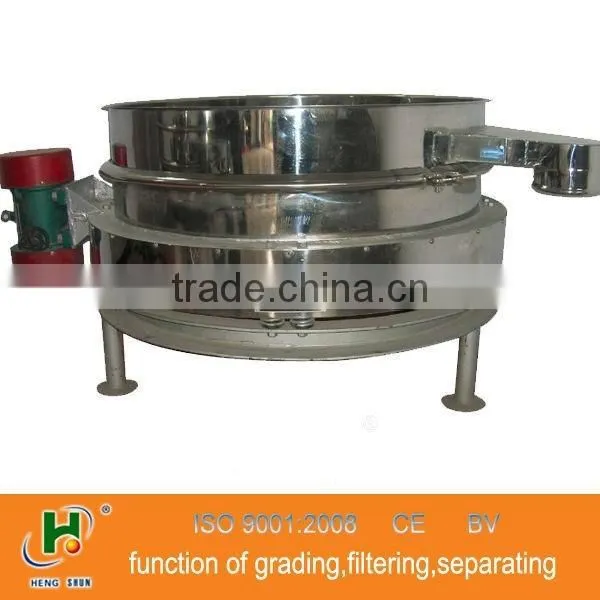

Hengyu low profile circular sieve model Hengshun has central outlet and is designed for control sieving.
It separates granular products, powder and liquid into particle sizes ranging from 51 mm to 0,033 mm (400 mesh).
The Hengshun is assembled with two vibratory motors on opposite sides of the exterior lower deck. This allows the bottom outlet to be positioned directly below the top inlet, minimizing height requirements and enables material to fall vertically through the screens at high rates.
Standard model range are in diameter size from 440 mm to 1800 mm
ADVANTAGES
Screens are easily and quickly changed the screens can be equipped with various cleaning system as: balls, kleeners and the our innovative ultrasonic cleaning system.
The separator can be built to customer specification using carbon steel, stainless steel AISI 304, stainless steel AISI 316.
All product contact areas can be polished to meet with Sanitary Standards.
Compact design, high level of efficiency and reliability allow Hengshun model to be adapted easily into product lines.
Features of low profile circular separator
- High efficiency, elegant design & durable, available for any powder and viscous liquid.
- Easy to operate, easy to change the screen cloth, easy to clean.
- Versatile for all meshes under 400. Anti-blinding devices keep the screen clean during all operations.
- Auto discharge gate available and facilitates impure and rough materials. "on-demand" system allows use at operator's request only.
- Seven popular sizes to fit any requirement, space-saving thru high volume.
- All material contact parts are "stainless-steel" only.
- We manufacture single deck up through five deck units (four screen maximum per unit).
- Quick-change screen capability allows easy screen changes in less than 5 minutes.
Principle of operation of circular flour sifter
The round separator is driven by vertical electric motor. An upper and lower adjustable eccentric weighted arm controls the motion of the unit. These weights can be adjusted to suit nearly every need required by the industrial screening market place.
Our separator can be adjusted to take advantage of three motions simultaneously, vertical motion, horizontal motion and inclinational motion.

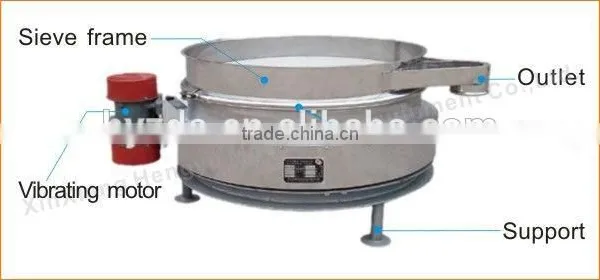

Functions as per the picture
Main sectors of application:
Food industry
Dairy farming
Chemical
Pharmaceutical
Cosmetics
Recycling and environmental
Plastic materials
Agriculture
Confectionery industry
Spices and herbs
Cement and sand
Metal processing industry
Diamond cutting and grinding tools
Liquid and powder paintings.
Mining
Abrasives
Wood
Technical parameters:
In addition, our company can provide linear vibrating screen, vertical discharge vibrating screen, ultrasonic vibrating screen, testing screen etc.For many year, we can design and manufacture vibrating screening equipment according to customer’s special demands. Any questions, please contact us!
