Specifications
1.Single layer or as request2.Stainless steel material
3.Mature technology
4.Easy to install and maintain
5.CE, BV & ISO
Let’s know more information for Vibrating Mud Screen
HY series "BA DAO" slurry vibrating screen is my factory independent research and development of the utility
model patent product. It has been constantly up-dated through to reaching its present high level of reliability and performance.
Adoptability:
The discharge ports could be rotated and are most adoptable to your process needs.
Longer Screen Life:
The screen cloth is held taut uniformly by tension rings. This arrangement enables clean screening, less screen wear and longer screen life.
Low on Power and Maintain:
The design enables to utilize the vibratory force generated by the motor to the optimum and very few moving parts reduce the maintenance to minimum.

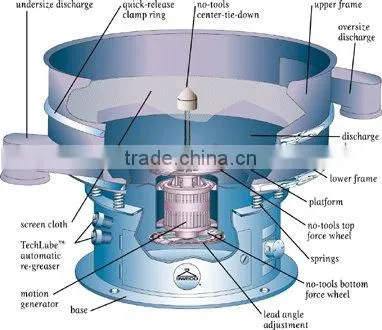

Structure of “BADAO” slurry vibrating screen
Technical Parameter
Model |
Power(KW) |
Effective diameter |
Largest vibration force |
Layer |
|
HY-800 |
-1S |
0.37 0.55 |
800 mm |
8000 N |
1 |
-2S |
2 |
||||
HY-1000 |
-1S |
0.40 0.55 |
1000 mm |
10000 N |
1 |
-2S |
2 |
||||
HY-1200 |
-1S |
0.45 0.75 |
1130 mm |
15000 N |
1 |
-2S |
2 |
||||

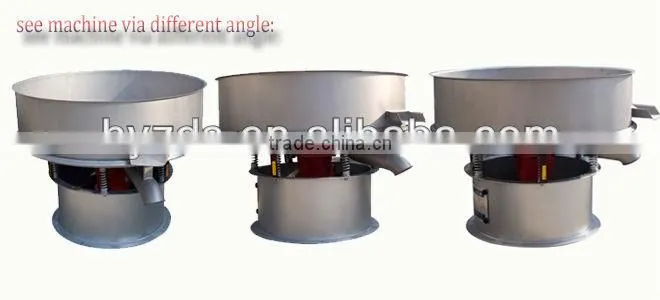

Photos of the model as follows:

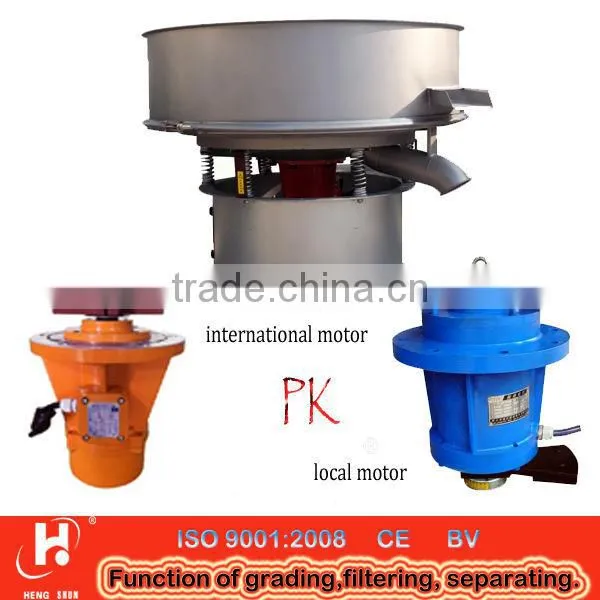

International motor

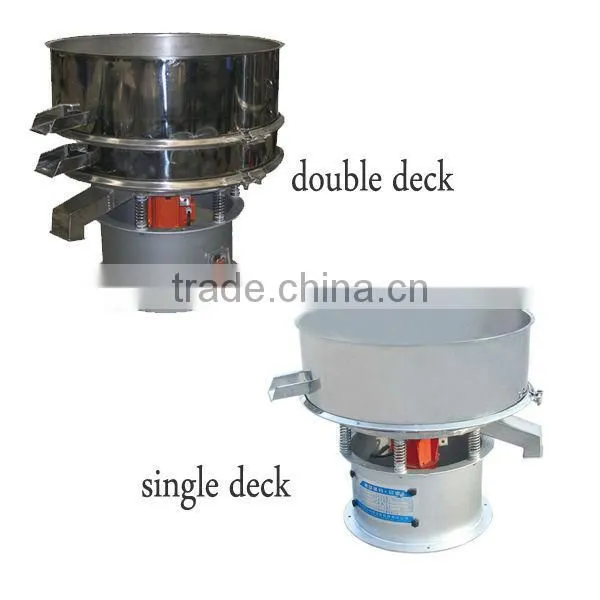

Deck: single deck & double deck

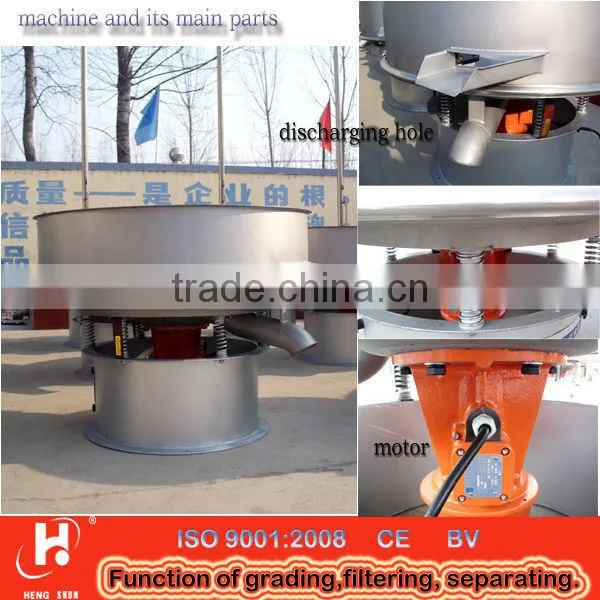

Pictures of product’s parts as follows:
Application industry of vibrating mud screen
HY- 800 type slurry vibrating screen is generally used in Ceramic Industry, Printing Ink Industry, Paint Industry,
Paper Industry, Pharmaceutical industry, Food Industry, Brewery Industry, Rubber Industry, Abrasive Industry,
and Chemical Industry and so on.
Choose us, you can get......
1.Improve you product quality
2.Increase your product productivity
3.Operator friendly
4.Reduce your costs
