Specifications
1. Used in super fine powder2. Level,upright,and incline movement make screening be more easy
3. Passed ISO 9001:2008 & CE
|

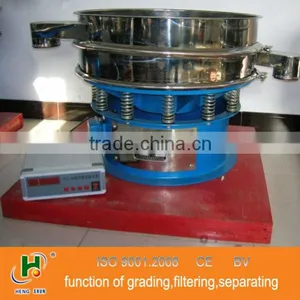

Xinxiang Ultrasonic Vibrating Screen for Minuteness Powder
Xinxiang Ultrasonic Vibrating Screen for Minuteness Powder is an important breakthrough in the screening frequency, the machine adopted the advanced techniques and was called high sophisticated screening equipment. It was added to the intelligent vibrating ultrasonic controller, which improves the screening precision. This design is truly realizing the reasonable combination of ultrasonic function and vibration sieve, which reached the international highest level.
More Features
1. In achieving high precision and high mesh screening at the same time, control of a narrow size range. 2. Single or multilayer together screening, with a smart ultrasonic generator at the same time make use of one transducers. 3. Ensure that the processing characteristics of the material unchanged. 4. Real solution to strong absorption, easy to join, high static, highprecision, high density, light weight and other screening problems. 5. Thoroughly screen self-cleaning function: greater than 500 mesh sieve, mesh-free jam, no attenuation of screening efficiency. 6.1-70% can increase screening accuracy, output can be increased 0.5-10 times.
How does Ultrasonic Vibrating Screen work ???
1.The Ultrasonic Vibrating Screen system components are ultrasonic power source ,electric transducer and syntonic ring.
2.The transducer transfer the high frequency electric vibration produced ultrasonic control device to high frequency sine style lengthways vibration wave----36000 times / second !
3.It passes the vibration wave to the syntonic ring in order to produce sympathetic vibration,and pass the vibration onto the screen surface average.
At the same time of the materials on the surface are doing low frequency vibration,add the ultrasonic vibration ,the screen block will be avoid successfully and improve the capacity and productivity.
Main applications
Xinxiang Ultrasonic Vibrating Screen for Minuteness Powder applied in electromagnetic powder,cathode materials,laser powder,carbon powder, coating powder, alloy powder, molybdenum powder, stainless steel powder, wolfram powder,cobalt powder,nickel powder,quartz powder, malt powder, spore powder,etc.
Technical Parameters

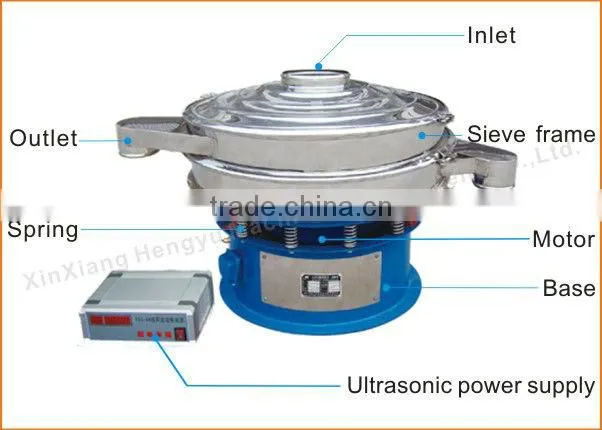

Structure of Ultrasonic Vibrating Screen
Pictures of Ultrasonic Vibrating Screen
Ultrasonic vibrating screen certified ISO, CE, BV
Quality assurance is the process of verifying or determining whether products or services meet or exceed customer expectations. We use the following methods to ensure the quality of our products: A. Experienced staff B. Quality Control Department C. Third-party supervision Our products passed the ISO9001:2008 and CE certificate
Our service will be offered
The best way to be sure which machine is the best suits for your application, just need for telling four questions:
If you are interested in our Minuteness Powder Ultrasonic Vibrating Screen, pls email or call us.
|
