Rotary Ultrasonic Screening Equipement With Sus 304 Material

Rotary Ultrasonic Screening Equipement With Sus 304 Material photo-1
US$ 1,000 - 3,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Separating Plant, Circular
Product Type:
Other, separating machine
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other, Separating Plant, Circular
Product Type Other, separating machine
Place of Origin Henan, China
Brand Name HENG YU
Model Number HY-1000
Voltage 110V~415V
Power(W) 0.75kw
Weight 260kg
Dimension(L*W*H) 1160X1160X1050mm
Certification CE&ISO9001:2008, CE & ISO9001:2008
Warranty 12 month
After-sales Service Provided Engineers available to service machinery overseas

Stainless Steel Ultrasonic Sieve Shaker



Product's informaion

rotary ultrasonic screening equipement with sus 304 material

Main function: For Remove the impurity

The ultrasonic sieve shaker can quickly separate a few oversize or undersized particles from a quantity

materials.



Show some features

1. Superior accurate separation efficiency.

2.Mesh is not blocked, the powder does not fly, can be screened to 500 mesh

and above.

3. Suitable for screening any fine powder, easy adhesion or electrostatic materials.

4. Stainless steel screen mesh that guarantees a longer screen service life.

5. Automatic discharge of impurities and coarse materials, continuous operation can be achieved

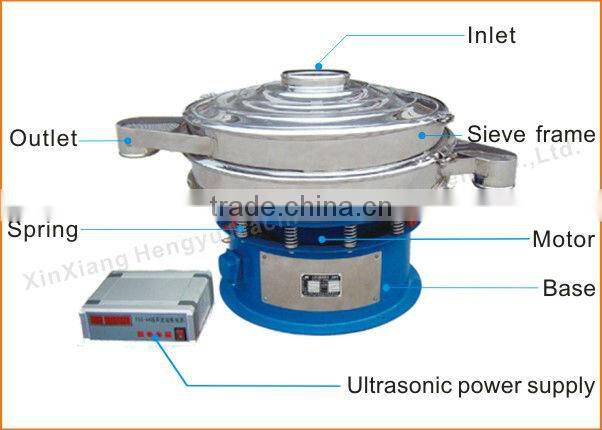

Structure

rotary ultrasonic screening equipement with sus 304 material



Technical parameters

Model

Effective sieving area

(m 2 )

Screen size

Layer

Powder (KW )

Vibration motor

Common motor

HY-600

0.2461

100-500 mesh

1-2

0.25

0.75

HY-800

0.4534

0.55

1.1

HY-1000

0.6789

1.1

1.5

HY-1200

1.0023

1.1

1.5

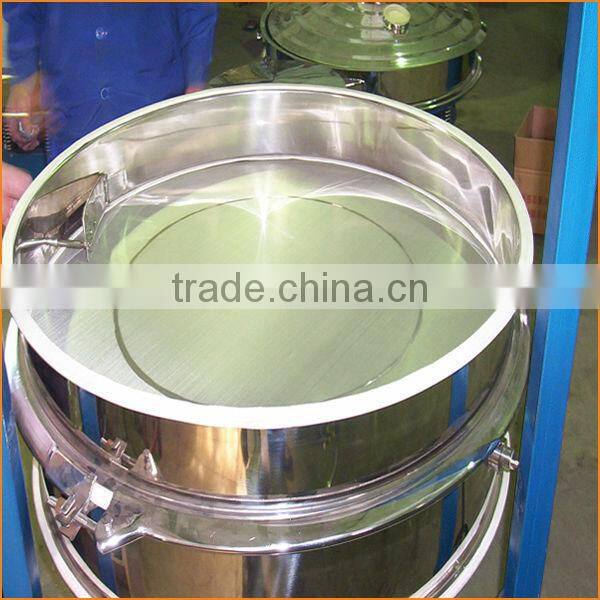

Show some pictures of the model

rotary ultrasonic screening equipement with sus 304 material

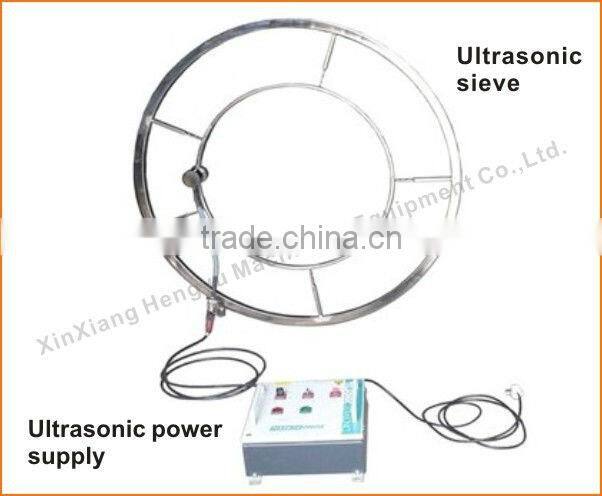

ultrasonic sieves and generator

rotary ultrasonic screening equipement with sus 304 material

rotary ultrasonic screening equipement with sus 304 material

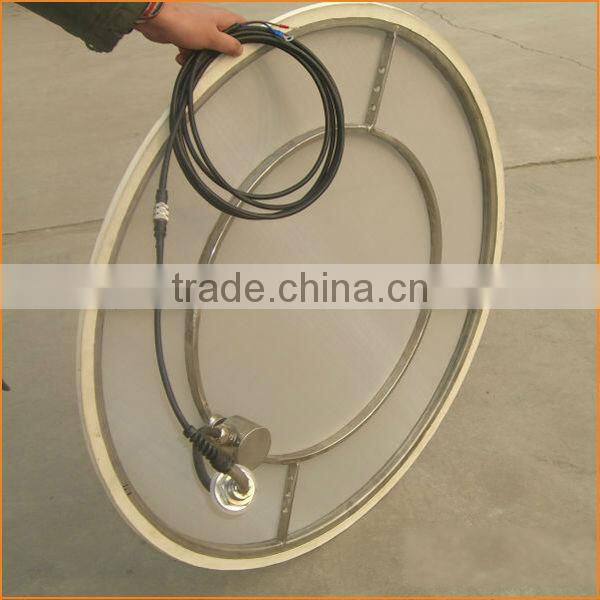

Part's picture

rotary ultrasonic screening equipement with sus 304 material

rotary ultrasonic screening equipement with sus 304 material



 Why choose us?

rotary ultrasonic screening equipement with sus 304 material

1.With 8 years production of screening
2.More than 20 countries clients loves our products.
3.The Chinese leading screening products provider and the technology design center.

4.Quality assurance is the process of verifying or determining whether products or services meet or exceed

customer expectations.We use the following methods to ensure the quality of our products:

a. Experienced staff
b. Quality control department
c. Third-party supervision

Our products passed the ISO9001:2008 and CE certification, please check it as follows:

rotary ultrasonic screening equipement with sus 304 material



 5. Sweet serevice for customers

 rotary ultrasonic screening equipement with sus 304 material



For choose the suitable model?

rotary ultrasonic screening equipement with sus 304 material

In order to choose the suitable mode for you, please provide us the following information:

1. The name and feature of the raw material?
2. Aim of using: get rid of impurity, filtration or grading?
3. Handling capacity: kg /h, L/h?
4. Wire screen mesh size: (mesh or mm)?
