Xinxiang Hengyu Small Volume Vibration Filter Sieve

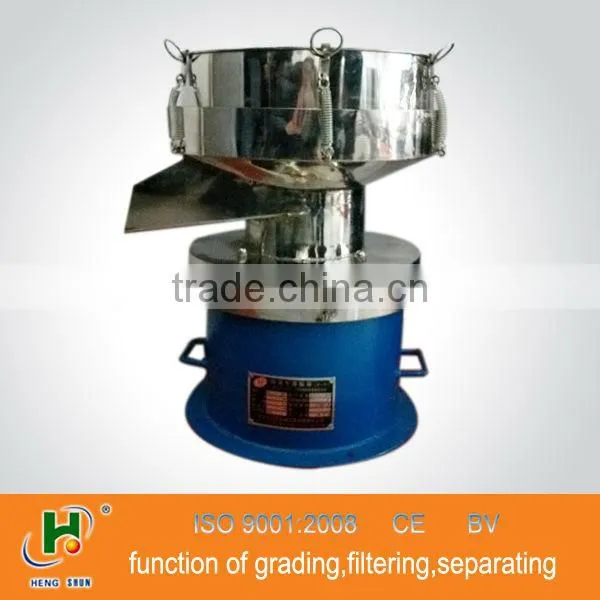

Xinxiang Hengyu Small Volume Vibration Filter Sieve photo-1
US$ 500 - 4,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Circular
Application:
Other, vibration filter sieve, granule, powder, mucus
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Circular
Application Other, vibration filter sieve, granule, powder, mucus
Place of Origin Henan, China
Brand Name HENGSHUN
Model Number HY-450-1S
Voltage 220v, 380v,415v or as your local power
Power(W) 0.18kw
Dimension(L*W*H) 460*550*665mm
Weight 52kgs
Certification ISO9001:2008, CE, BV certificate
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.Small volume vibration filter sieve
2.Rapidly replace the screen
3.CE certification,ISO 9001:2008
4.Simple operation





-----------------------------------Vibration filter sieve---------------------------



Xinxiang hengyu small volume vibration filter sieve





Summary description

Xinxiang hengyu small volume vibration filter sieve

HY-450 vibration filter sieve with high efficiency for sieving and filtration, suitable for any granule, powder and mucilage.

Screen mesh never clog, no powder fly up, the minimum size for sieving is 300 mesh. Small appearance, light weight, move at random ,less room to occupy.



What advantage vibration filter sieve will bring?

Xinxiang hengyu small volume vibration filter sieve

1: High efficiency, retained design, any powders and mucilage are suitable for using.

2: Small volume, low noise, easy to operate and move, design with movable wheel.

3: Supplied with many kinds of screen frame design. Easy to change and clean.

4: Handing flour up to about 700kg/h with 30 mesh screen.

5: Special apparatus for not blocking of mesh screen
6: Automatic discharge of impurities and coarse materials, and operation can be automated
7: According with ISO9001:2008 and CE, BV Certification.



Technical parameters

Xinxiang hengyu small volume vibration filter sieve

Product Name

vibration filter sieve

Model

HY-450

Sieve

1 layer

Sieve Size

0.038-3 mm

Effective Screen Surface Diameter

400mm

Frequency

1460 R/min

Power

0.18KW

Voltage

380V

Material

Stainless steel (304) or Carbon steel

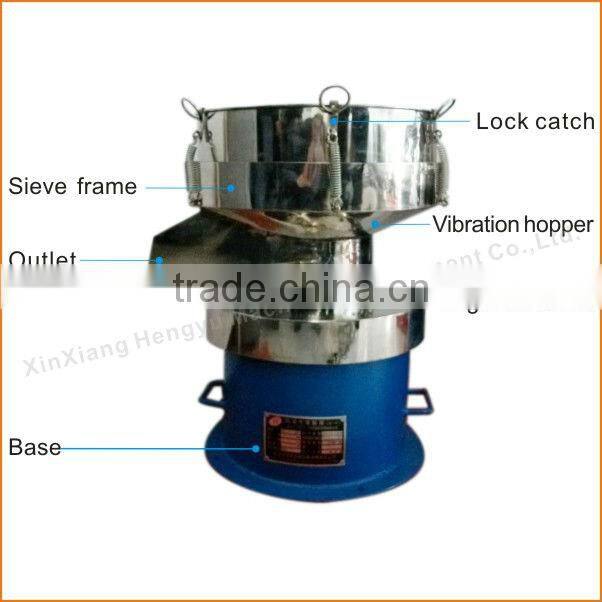

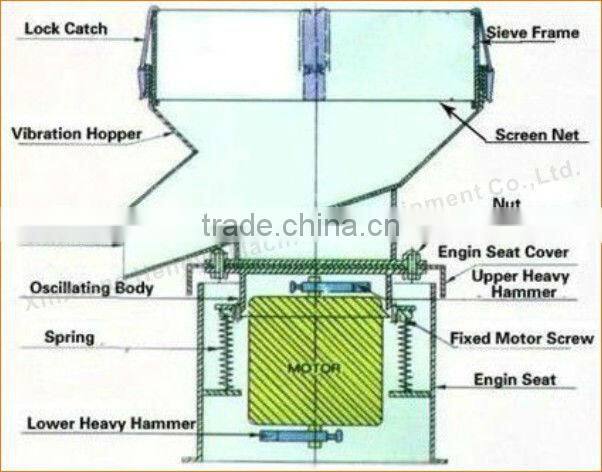

Structure of vibration filter sieve

Xinxiang hengyu small volume vibration filter sieve

Xinxiang hengyu small volume vibration filter sieve



Vibration filter sieve applied in

Xinxiang hengyu small volume vibration filter sieve

Food - Food ingredients, confectionery, chocolate, fruit juice, milk, etc.
Chemicals - Chemical powders or liquids.
Metals - Metal powders, alloys, etc.
Pharmaceuticals - Pharmacy powders, active powders, etc.
Ceramics - Ceramic powders, kaolin clay, etc.
Environment - Treating wastewater for clean disposal, etc.

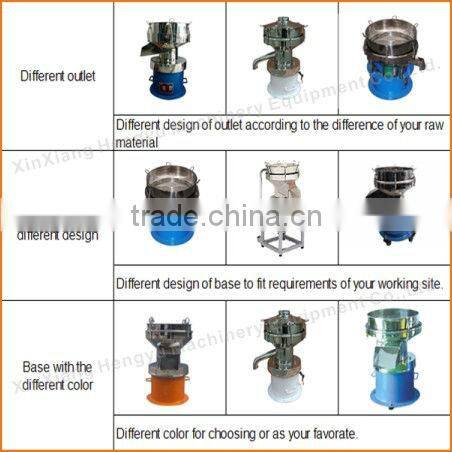

Picture of vibration filter sieve

Xinxiang hengyu small volume vibration filter sieve

Xinxiang hengyu small volume vibration filter sieve



----------------------------Hengyu Culture and Service----------------------



1. Our company have over 9 years' experience in vibrating screen line

2. Our product can be designed according to your requirements

3. Our price is also competitive



Xinxiang hengyu small volume vibration filter sieve

Xinxiang hengyu small volume vibration filter sieve

Xinxiang hengyu small volume vibration filter sieve

Xinxiang hengyu small volume vibration filter sieve



-----------------------------------Selection guidelines--------------------------



Before selecting the right model of vibration filter sieve, please inform us the following information:
1. Material to be processed?
2. Granule size of the materials (Mesh size)?
3. Moisture content, density?
4. Granule size proportions if possible, the number of lays?
5. Production capacity (tons or kg per hour)?
6. Local power supply (voltage and frequency)?



Your inquiry will be answered within 24 hours. Please feel free to contact us.

  Xinxiang hengyu small volume vibration filter sieve
