Teff Vibratory Screen in China

Teff Vibratory Screen in China thumbnail-1
Teff Vibratory Screen in China thumbnail-2
Teff Vibratory Screen in China thumbnail-3
Teff Vibratory Screen in China thumbnail-4
Teff Vibratory Screen in China thumbnail-5
Teff Vibratory Screen in China photo-1

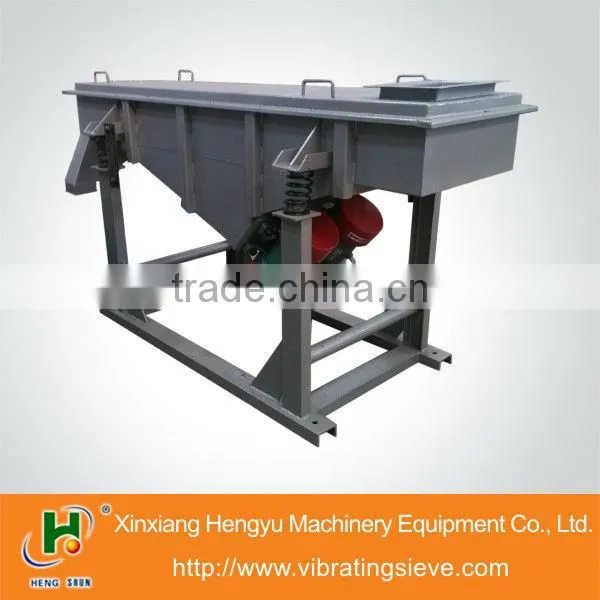

Teff Vibratory Screen in China photo-2

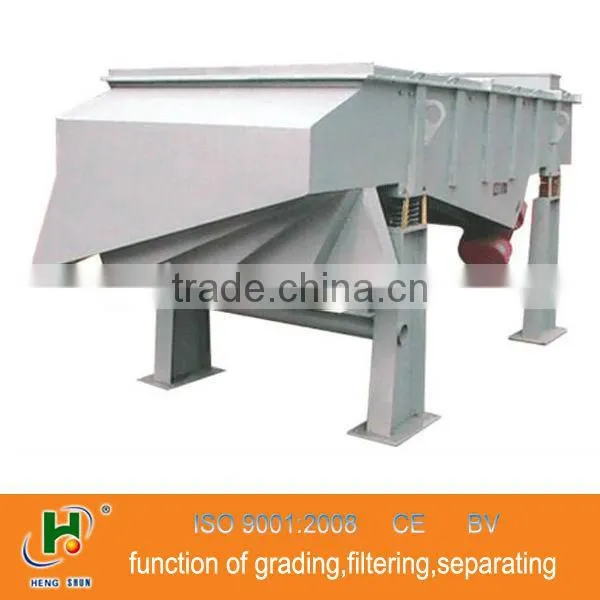

Teff Vibratory Screen in China photo-3

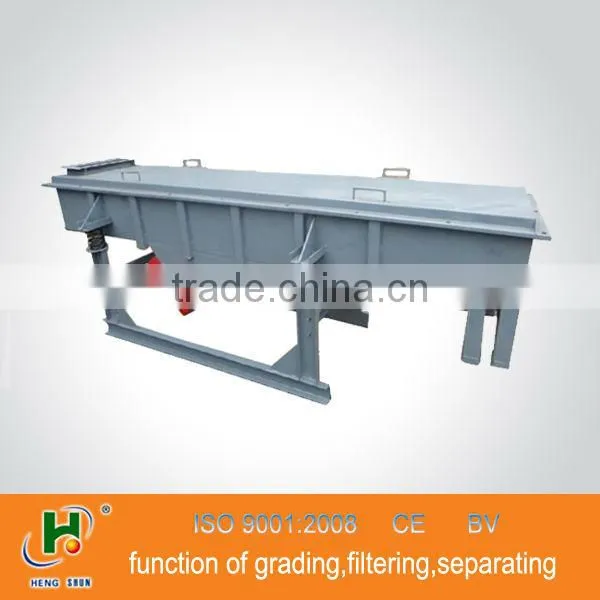

Teff Vibratory Screen in China photo-4

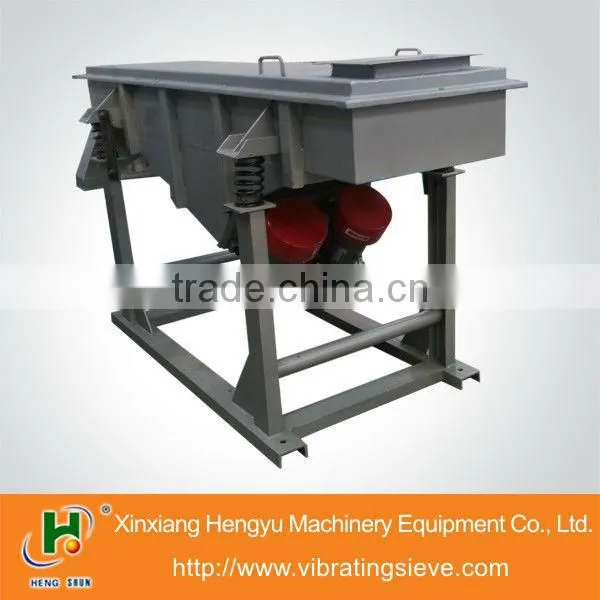

Teff Vibratory Screen in China photo-5
US$ 1,200 - 16,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Linear
Application:
Other, screening, sieving, sorting
Contact Supplier Request Quote Chat Now
Xinxiang Hengyu Machinery Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao or request
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Linear
Application Other, screening, sieving, sorting
Place of Origin Henan, China
Brand Name HENG SHUN
Model Number HY-1030
Voltage 380V, Or as you request
Power(W) 2x(0.55~1.10)KW
Dimension(L*W*H) 3000x1000x1500mm
Weight depends on the model
Certification CE, BV
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

xxsx hot vibratory screen in china for teff

Full Technical support and Spares Service to keep your Lines Running.

  linear vibration screen from Hengyu
     • CE Certificate
     • OEM and Very Reasonable Price
     • Sieve from 5mm-75 Micro
     • 365 days warranty



teff vibratory screen in china



linear vibration screen  - Advantages:

  • Material closer to the surface, not completely thrown forward
  • Noise from general linear sieve is greatly reduced
  • Materials in net surface longer trips
  • Screen tension more easily, and longer life
  • Have a reasonable network device
  • Can choose stainless steel structure
  • Can choose to add ultrasound screening system

linear vibration screen  - technial parameters

Model

HY-520

HY-525

HY-1020

HY-1025

Appearance dimension (mm)

500×2000

500×2500

1000×2000

1000×2500

Material granularity (mm)

0.074-10

0.074-10

0.074-10

0.074-10

Angle

1°- 7°

1°- 7°

1°- 7°

1°- 7°

Amplitude

3-4.5

3-4.5

3-4.5

3-4.5

Layer

1-6

1-6

1-6

1-6

Power(Kw)

2*(0.37-5)

2 *(0.37-0.75)

2 *(0.55-1.10)

2 * (0.55-1.10)

The above metioned is our standard model size, we are able to design for you according to your working site, production capacity, your aim and materials features, just feel free to contact us today, let's sovle screening problems together!!

Picture's show

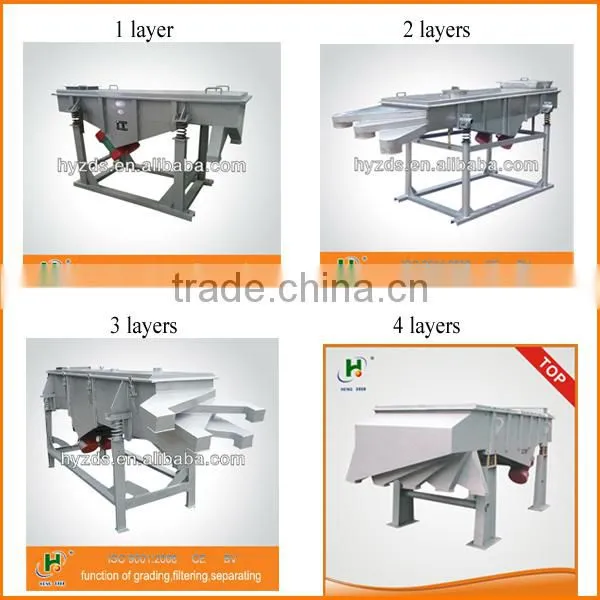

A. multilayer grading sieve

teff vibratory screen in china

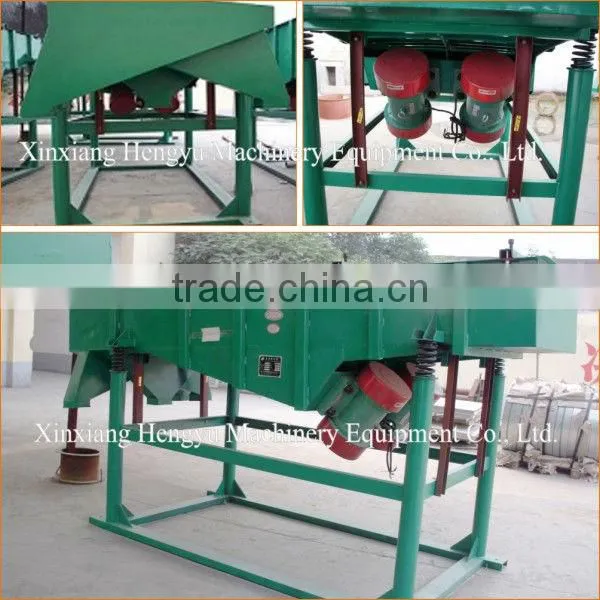

B. parts of grading sieveteff vibratory screen in china

teff vibratory screen in china





C. How to delivery

D. Other vibrating screen for your reference



E. certificates

teff vibratory screen in china

F.  Exhibition Pictures

teff vibratory screen in china



Why us

1. How can I get you best offer before the order placing?

The more product request you provide, the more precise offer you will get.

Basic factors for an offer should have(including but no limitation):

material name material density capacity screen size you need, etc.



2. What it does?

a:Separate solids from liquids or segregate dry materials into various sizes.



3. How it works?
 Vibration is accomplished by eccentric weights on the upper and lower ends of the motion-generator shaft. and The angle of lead given the lower weight with relation to the upper weight provides variable control of the spiral screening pattern.



4. Any self-cleaning devices on the sieving machine?
Yeah, Bouncing ball or Ultrasonic system could be installed.



5. How many kinds of material are supported?
A. All stainless steel (201, 304, 316L)
B. All carbon steel Q235A
C. Contact part Stainless steel.



6. About the phase and the voltage?
0.12-0.55 kw single phase and three phase are both supported.
0.55-2.2 kw Three phase is just supported.
110V, 220V, 380V, 415V, 450V, 480V are supported. (50HZ OR 60 HZ).



7. How long is the warranty?
The warranty is 12 month(except the wearing parts includes sealing strip, bounce ball and sieve mesh, etc.).

Because different usage, the wearing parts will have different life.



8. OEM order and labeling services are supported?
Yeah, OEM order and labeling services are supported. And we seek global partners.



9. Whether the factory visits is supported or not?
Yeah, factory visits will be highly welcome. Airport picking up and hotel booking are both supported.

One hour to both Xinzheng International Airport.



For more detail, please Contact us !

According to your different requirements including processing capacity, features of screened material, screening aim and so on, our team will suggest suitable screening plan to you, email or phone us now.
