Hot Selling Carbon Steel Linear Sand Gravel Screen With CE

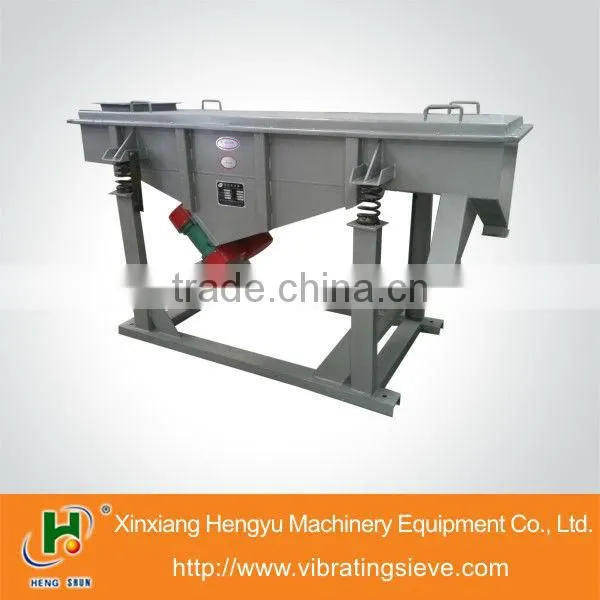

Hot Selling Carbon Steel Linear Sand Gravel Screen With CE photo-1
US$ 2,000 - 6,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Linear
Application:
Other, powder screening machine
Payment & Shipping
Payment Methods:
Port of Shipment:
any port in China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Linear
Application Other, powder screening machine
Place of Origin Henan, China
Brand Name HENG SHUN
Model Number HY-1020-2S
Voltage 220v, 380v,415v or as your request
Power(W) 0.55kw
Dimension(L*W*H) 2230x1390x1720mm
Weight 890kg
Certification BV, CE, ISO9001:2008
Warranty 12 month
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.Hot selling carbon steel linear sand gravel screen with CE
2.Strong violent vibrating force
3.Passed ISO,CE,BV
4.OEM:accept



Hot selling carbon steel linear sand gravel screen with CE

 Hot selling carbon steel linear sand gravel screen with CE



Introduction

Hot selling carbon steel linear sand gravel screen with CE

Hot selling carbon steel linear sand gravel screen with CE be supplied of different sizes

depending upon capacity required.They can also handle slightly wet material. Inlets, outlets and

legs can be custom fit to your installation requirements.



Technical parameters

Hot selling carbon steel linear sand gravel screen with CE

Model

HY-520

HY-525

HY-1020

HY-1025

HY-1030

Appearance Dimension

500×2000

500×2500

1000×2000

1000×2500

1000×3000

Material  Granularity

0.074-10

0.074-10

0.074-10

0.074-10

0.074-10

Angle

1°-7°

1°-7°

1°-7°

1°-7°

1°-7°

Amplitude

3-5

3-5

3-5

3-5

3-5

Layer

1-6

1-6

1-6

1-6

1-6

Power

2× (0.37-0.75)

2×(0.37-0.75)

2× (0.55-1.1)

2× (0.55-1.1)

2× (0.55-1.1)



Feature of hot selling carbon steel linear sand gravel screen with CE

Hot selling carbon steel linear sand gravel screen with CE

1. Simple and rational tensioning mode of screen, easy to replace.

2. Exciting force of vibrating motor can be changed by adjust the relative angle of eccentric block

on the both sides of motors. That means capacity of linear vibrating screen machinery would

be adjusted to meet different production requirement. .

3. High sieving efficiency, high utilization ratio of screen, with bouncing balls set under the screen which eliminates mesh blockage, increasing precision of sieving.

4. High quality springs can considerably reduce running noise and that improve the labors' working

environment.

5. High screen accuracy and efficiency. It can be used for powder and granular classification.



Structure of hot selling carbon steel linear sand gravel screen with CE

Hot selling carbon steel linear sand gravel screen with CE

Hot selling carbon steel linear sand gravel screen with CE



Application industry

Hot selling carbon steel linear sand gravel screen with CE

It is suitable for screening all of dry material (from 0.074mm--20 mm). It is best that the largest

particle is not more than 20mm. Large processing capacity linear quartz sand vibratory sieve machine is widely used for screening, grading and filtering. Such as

chemical, medical powder and particle, coating, pigment, cosmetic, grease, resin, ceramic sauce,

slurry, quicklime,fireproofing powder, metallurgy powder, starch, flour,rice flour, carbon powder,

graphite powder, manganese powder, sewage, waste oil, dung, etc.

Hot selling carbon steel linear sand gravel screen with CE



Product procedure

Hot selling carbon steel linear sand gravel screen with CE

Hot selling carbon steel linear sand gravel screen with CE



Notice

Hot selling carbon steel linear sand gravel screen with CE

In order to choose the suitable mode for you, please provide us the following information:
1. The name and feature of the raw material?
2. Aim of using: get rid of impurity, filtration or grading?
3. Handling capacity: kg /h, L/h?
4. Wire screen mesh size: (mesh or mm)?



Believe in us, best quality of hot selling carbon steel linear sand gravel screen with CE will be offered to you; here please send us your e-mails now. Hot selling carbon steel linear sand gravel screen with CE
