Home > Manufacturing & Processing Machinery > Sorting Machine > Vibrating Screen > China Supply Excellent Quality Industrial Vibratory Screen

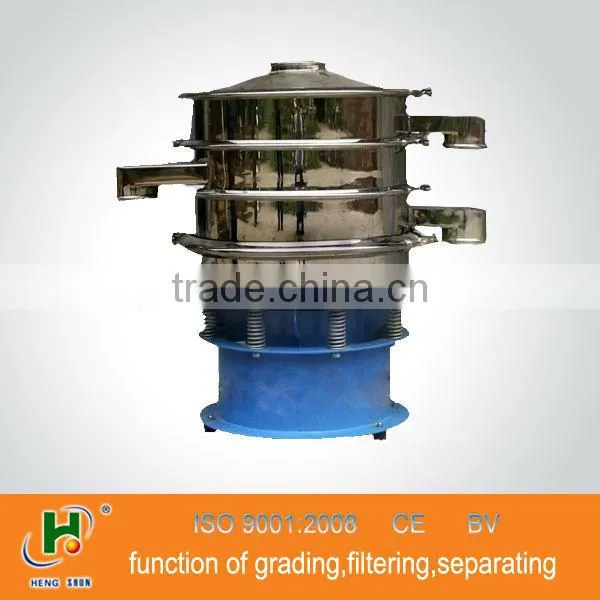

China Supply Excellent Quality Industrial Vibratory Screen

China Supply Excellent Quality Industrial Vibratory Screen photo-1
US$ 1,000 - 6,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Circular
Application:
Ore
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai China or depends on your request
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Circular
Application Ore
Place of Origin Henan, China
Brand Name HENG SHUN
Model Number HY-1000-3S
Voltage 220V/380V/415V, 50/60HZ
Power(W) 1.5 KW
Dimension(L*W*H) 1160*1160*1090
Weight 330 KGS
Certification ISO 9001:2008, CE, BV certificates
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas



Introduction

China supply excellent quality industrial vibratory screen

China excellent quality industrial vibratory screen has absorbed advanced producing

and processing technology, which designed to grading material into different levelsThe machine is enjoying a good reputation from our customers, and special

customization is accepted, If you need more information,

please do not hesitate to contact me!



Features,

China supply excellent quality industrial vibratory screen

1. Sieving machines can reach 5 layers, it is recommended to use 4 layers

2. Easy to change the different sieves.

3. High screening efficiency- do not mesh plug and powder fly.

4.  Impurities, coarse automatic discharge, it can be a continuous operation.

5. Skilled technology, stable structure, high performance at a good price.



Functions,

China supply excellent quality industrial vibratory screen

China supply excellent quality industrial vibratory screen

1. Grading
The Multi—layer type can screen and separate five groups of different particles at a time.

It is suitable for dry materials.
2. Remove the impurity
The vibratory screen can quickly separate a few oversize or undersized particles

from a quantity of materials.
3. Solid-liquid separation
The mixture of solid and liquid can be separated effectively by single or multi—layer type into different grade materials.



Applications,

China supply excellent quality industrial vibratory screen

China supply excellent quality industrial vibratory screen



Technical parameters

China supply excellent quality industrial vibratory screen



Model

Diameter

Screen surface

Screen opening

Power

Deck

(mm)

Diameter

Area

(kw)

(mm)

(m2)

HY-400

400

360

0.1017

2-600 mesh

0.18

1-4

HY-600

600

560

0.2461

0.25-0.55

1-4

HY-800

800

760

0.4534

0.55-0.75

1-4

HY-1000

1000

930

0.6789

0.75-1.5

1-4

HY-1200

1200

1130

1.0023

1.10-1.75

1-4

HY-1500

1500

1430

1.6052

1.50-2.20

1-4

HY-1800

1800

1730

2.3494

2.20-3.0

1



According to your capacity, different layers of our

vibratory screen can be recommended to you,

China supply excellent quality industrial vibratory screen

China supply excellent quality industrial vibratory screen



Different raw materials, three material of vibratory screen can be offered,

China supply excellent quality industrial vibratory screen

China supply excellent quality industrial vibratory screen



Processing technology,

China supply excellent quality industrial vibratory screen

China supply excellent quality industrial vibratory screen



Special customization is accepted, action!

Tell us three questions, best models machine offered for you,



1. The specific name of your material ?

2. The wire screen mesh sizes you needed ??

3. The production capacity per hour you wanted ??



 We can offer the best machine and service for you,

let us know your detailed requirements firstly by phone or email, please.

   China supply excellent quality industrial vibratory screen
