Xinxiang Factory Multi-layer Rotary Grading Screen Machine

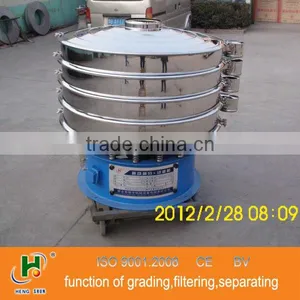

Xinxiang Factory Multi-layer Rotary Grading Screen Machine photo-1
US$ 500 - 4,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Circular
Application:
Other, Xinxiang Factory multi-layer rotary grading screen machine
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao or request
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Circular
Application Other, Xinxiang Factory multi-layer rotary grading screen machine
Place of Origin Henan, China
Brand Name HENG SHUN
Model Number HY-1000-3S
Voltage 220/380/415V, 50/60HZ
Power(W) 1.5KW
Dimension(L*W*H) 1160*1160*1090
Weight 290KGS
Certification ISO 9001:2008, CE, BV Reports
Warranty 12 Months
After-sales Service Provided Engineers available to service machinery overseas

Xinxiang Factory multi-layer rotary grading screen machine

Xinxiang Factory multi-layer rotary grading screen machine

Xinxiang Factory multi-layer rotary grading screen machine

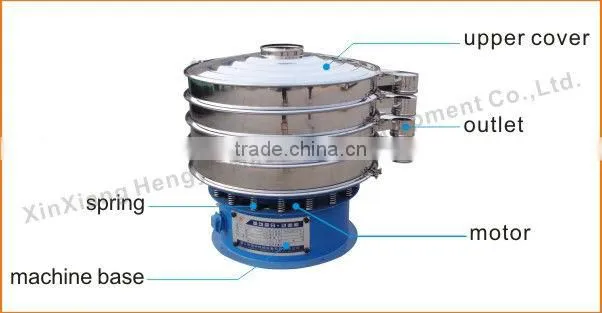

Introduction

Xinxiang Factory multi-layer rotary grading screen machine

Xinxiang Factory multi-layer rotary grading screen machine is used for remove

impurities from powder, grading particles into 2 different levels and filter liquidSeven

years of modifications and technical updates, the wide range available, accessories

and reliability make the machine is well received in home and aboard.

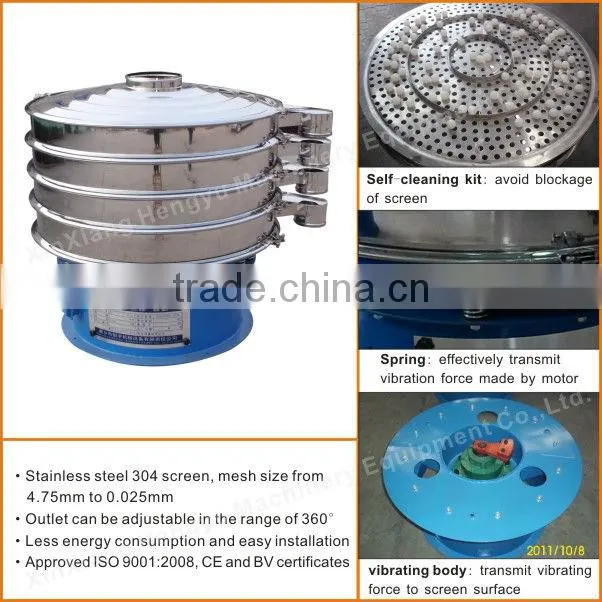

What features of our machine owns?

Xinxiang Factory multi-layer rotary grading screen machine

1. Easy to keep in good repair without mechanical movement.

2. Screen is easy to clean and replace.

3. Mesh is not blocked, can be screened to 500 meshes or 0.028mm

4. Suitable for wet or dry applications

5. Available with carbon steel or stainless steel base



Mainly functions of our grading screen machine

Xinxiang Factory multi-layer rotary grading screen machine

Xinxiang Factory multi-layer rotary grading screen machine

1. Size classification: separation of particles into groups of comparable size

from the materials.
2. Gravity filtering: removal of solids from liquids and slurries.
3. Product reclamation: removal of the solids from waste product or clarification of waste liquid for further use.
4. Screening: separation of a few oversize particles from a quantity of materials.
5. Liquid cleaning: cleaning of wastewater or removing the solids from

recalculating liquid.



The Industries of grading screen machine can be applied to?

Xinxiang Factory multi-layer rotary grading screen machine

Xinxiang Factory multi-layer rotary grading screen machine



Technical parameters

Xinxiang Factory multi-layer rotary grading screen machine

Model

Diameter

Screen surface

Screen opening

Power

Deck

(mm)

Diameter

Area

(kw)

(mm)

(m2)

HY-400

400

360

0.1017

2-600 mesh

0.18

1-4

HY-600

600

560

0.2461

0.25-0.55

1-4

HY-800

800

760

0.4534

0.55-0.75

1-4

HY-1000

1000

930

0.6789

0.75-1.5

1-4

HY-1200

1200

1130

1.0023

1.10-1.75

1-4

HY-1500

1500

1430

1.6052

1.50-2.20

1-4

HY-1800

1800

1730

2.3494

2.20-3.0

1-4



Spare parts and grading screen machine pictures show

Xinxiang Factory multi-layer rotary grading screen machine

Xinxiang Factory multi-layer rotary grading screen machine

Xinxiang Factory multi-layer rotary grading screen machine

Xinxiang Factory multi-layer rotary grading screen machine



Certificates of our grading screen machine achieved



Xinxiang Factory multi-layer rotary grading screen machine



By telling us the following information to learn which models of grading screen machine are suitable for you?



1. Material’s name, the density, water content (%)?
2. The necessary capacity you required (per hour)?
3. The wire screen mesh sizes you need?
4. Machine material. Pls choose from the following 3 options:
   A. Carbon steel
   B. The contacting part is SUS304, the other parts is carbon steel.
   C. Full SUS304 or SUS316.



Send e-mail to us today, we are always at your service.

Your Special customization is accepted.

Xinxiang Factory multi-layer rotary grading screen machine
