Home > Manufacturing & Processing Machinery > Crane > Tower Crane > 5 Ton Self Erecting Tower Crane

5 Ton Self Erecting Tower Crane

Name: 5 Ton Self Erecting Tower Crane
Brand: UNIQUE
SKU: 138878131
Availability: InStock

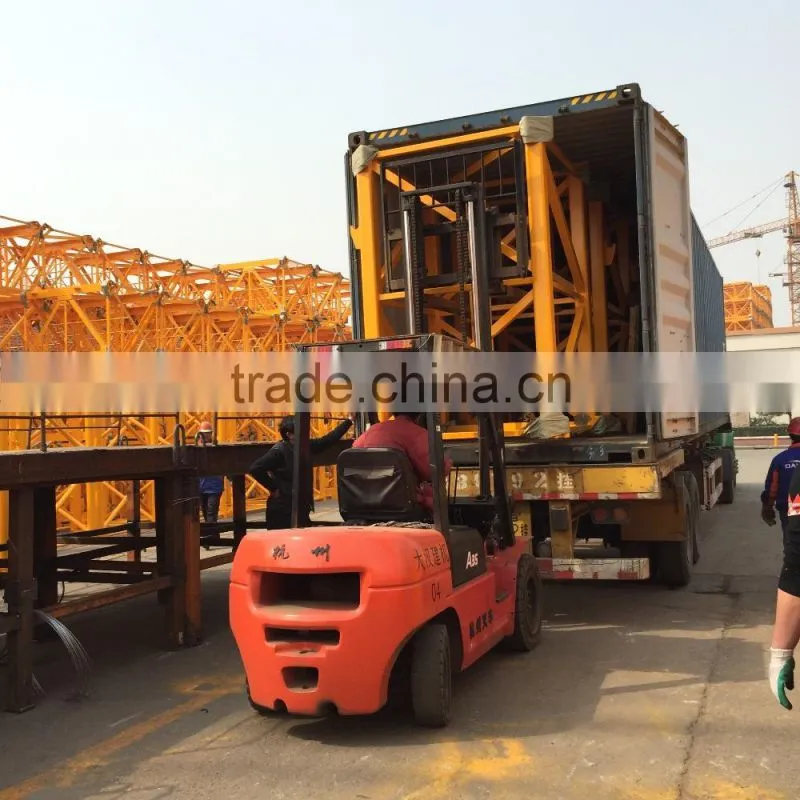

5 Ton Self Erecting Tower Crane thumbnail-1

US$ 20,000 - 30,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Application:

all construction buildings

Rated Loading Capacity:

1T~6T

Contact Supplier Request Quote Chat Now

Zhengzhou Unique Industrial Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Application all construction buildings

Rated Loading Capacity 1T~6T

Rated Lifting Moment 600kn.m

Max. Lifting Load 1T~6T

Max. Lifting Height 140M

Span 60M

Place of Origin Henan, China

Brand Name UNIQUE

Model Number QTZ80

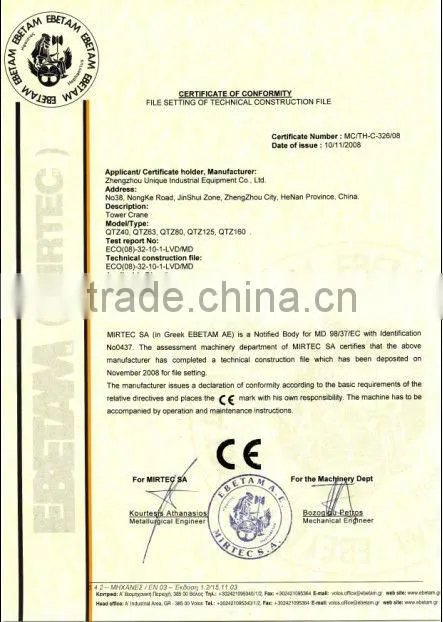

Certification CE CCC ISO

China manufacrurer Self-erecting Tower Crane 6 tons max loading capacity

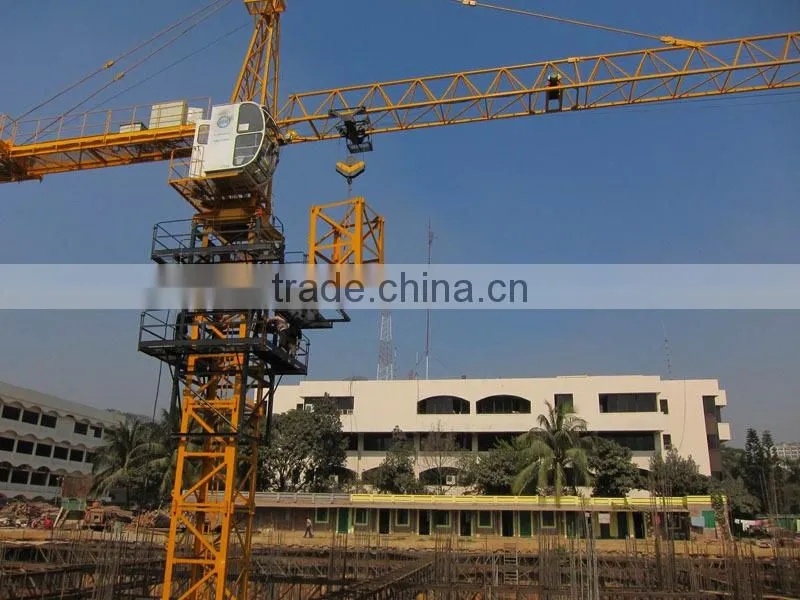

Introduction of QTZ China manufacture self-erecting tower crane :

This series of tower cranes, ranging from QTZ31.5 to QTZ315 has a horizontal jib frame, a jib-trolley radius-changing mechanism and a hydraulic self-raising mechanism. It is original in design, reliable in operation and satisfactory in shape. Equipped with all necessary safety devices, these cranes show a good speed-control capacity, satisfactory operating stability and high work efficiency. They can be widely used for the construction of high-rise hotels, residential buildings, high-rise industrial buildings, large-span factory buildings and tower-like buildings like tall chimneys.

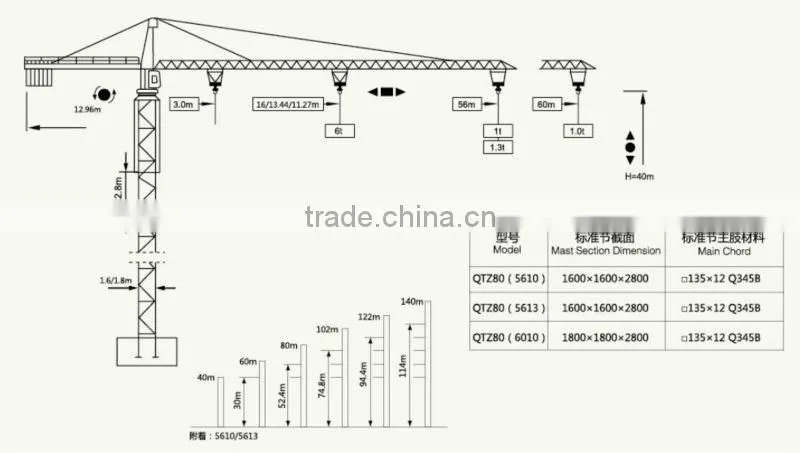

Technical parameters of China manufacture self-erecting tower crane :

mechanism		Hoisting mechanism											M5
		Slewing mechanism											M4
		Trolley travelling mechanism											M4
		Travelling mechanism											M3
Hoisting height (m)		Multiplying	travelling				Undercarriage stationary			Attached			Inside climbing
		a=2	57				53			301			301
		a=4	57				53			200			200
		a=6	57				53			101			101
Max. hoisting capacity (t)		16
Radius (m)		Max. radius							70
		Min. radius							2.7
Hoisting mechanism	Multiplying	a=2				a=4						a=6
	hoisting capacity(t)	2.5		5		5			10			8		16
	(m/min) Speed (m/min)	0~120		0~60		0~60			0~30			0~40		0~20
	(KW) Power (kW)	65
Trolley travelling mechanism	(m/min) Speed (m/min)	0~80
	(N.m) Moment (N.m)	95
Slewing mechanism	(r/min) Speed (r/min)	0~0.7
	(N.m) Moment (N.m)	2×95
Travelling mechanism	(m/min) Speed (m/min)	20
	(KW) Power (kW)	4×7.5
Climbing mechanism	(m/min) Speed (m/min)	0.46
	(kw) Power (kW)	11(15)
	(Mpa) Rated working pressure for hydraulic system (Mpa)	30(Outside climbing) 35(Inside climbing)
Counter-weight	Jib length(m)	45			52.5			60			65				70
	(m) Counter-jib length(m)	16			16			20			20				20
	(t) Counter-weight	25.95			27.75			24.6			25.95				27.75
(KW) Total power(KW)	117.5
(m) Wheel×axle gauge(m)	6.5×6.5
(C) Operating temperature(C)	-20~+40
