Home > Products > Small Concrete Mixer > JZC350 Benton Portable Concrete Mixer
JZC350 Benton Portable Concrete Mixer
- QingDao
- T/T Credit Card
You May Like
Product Details
| Condition | New | Place of Origin | Henan, China | |
| Brand Name | UNIQUE | Model Number | JZC | |
| Motor Power | 12.5KW | Mixing Power | 12.5KW | |
| Charging Capacity | 500L | Reclaiming capacity | 350L | |
| Speed of Mixing Drum | 27 | Working Cycle Period | 60S | |
| Discharge Way | Reverse discharge |
Product Description
Specifications
Benton Portable Concrete Mixer is the movable conrete mixer ,it also can make the high quality concrete .JZC350 Benton Portable Concrete Mixer
Descriptions of JZC, JZM Concrete Mixer:

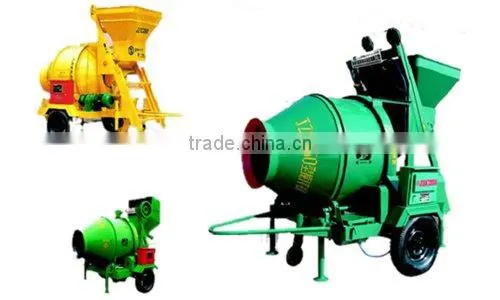

JZC, JZM series mixer is a gravity type of double-conic reversing drum concrete mixer, the drum transit by gear or friction wheel, the drum rotates clockwise during mixing and anti-clockwise during discharging. It is portable and movable. The mixer can mix plasticity and damp half-dry concrete. These mixer services for ordinary construction site, roads, bridge projects and precast plant.
Technical Parameters of JZC, JZM Concrete Mixer:
Model | JZC350 | JZC500 | JZM500 | JZM750 |
Discharge volume | 350L | 500L | 500L | 750L |
Charging volume | 560L | 800L | 800L | 1200L |
Capacity | 10~14 m3/h | 18~20 m3/h | 25~30 m3/h | 30~35 m3/h |
Aggregate sizes | ≤60m | ≤60mm | ≤70mm | ≤80mm |
Rotating speed | 14 r/min | 13 r/min | 13 r/min | 12.26 r/min |
Max. drag speed | 20km/h | 20km/h | / | / |
Mixing motor | 5.5kw | 7.5kw | 7.5kw | 11kw |
Lifting motor | 4.5KW | 5.5kw | 5.5kw | 7.5kw |
Pump motor | 0.55kw | 0.55kw | 0.75kw | 0.75kw |
Weight | 1950kg | 2400kg | 3000kg | 4000kg |
Dimensions (L x W x H)mm | 2766x2140x3000 | 3500x2200x3200 | 5200x2065x3200 | 5650x2065x3535 |
