Specifications
Wheels Concrete Mixer1.CE&ISO certificated
2.reasonable structure,excellent mixing quality&ability,high production efficiency

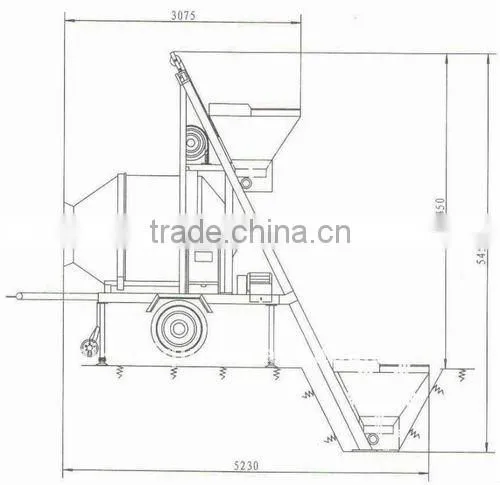

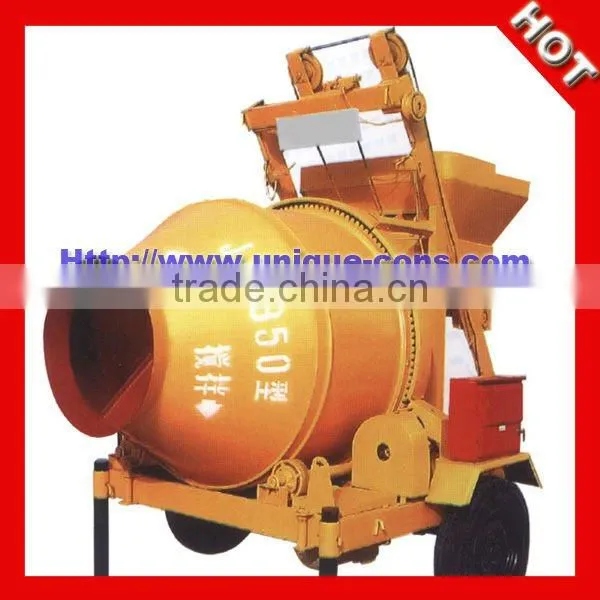

Convenient Moving Wheels Concrete Mixer
Description of Wheels Concrete Mixer:
Wheels concrete mixer down the gate type bipyramid reversal discharging concrete mixer, mixing tube by the ring gear drive, the work is being transferred stirring, reverse out the material, can be semi-rigid plastic and concrete mixing. Applicable to general construction sites, roads, bridges, hydroelectric and other projects and medium-sized concrete structure factory.
Wheels concrete mixer according to GB/T9142-2000 performance of quasi-set manufacturing, reasonable structure, and have the drive and reliable, light weight, energy consumption, compact structure, stable operation, simple operation, mixing good quality, high efficiency of production . Is a more advanced models.
The department includesJZC350,250,300,350B five main models, whichJZC750 is fixed,the rest are mobile tire traction.
Wheels Concrete Mixer Models:
Model |
JZC250 |
JZC350 |
JZC500 |
JZC750 |
JZM350 |
JZM500 |
JZM750 |
Discharge volume |
250L |
350L |
500L |
750L |
350L |
500L |
750L |
Charging volume |
320L |
560L |
800L |
1200L |
560L |
800L |
1200L |
Capacity |
6~8 m3/h |
10~14 m3/h |
18~20 m3/h |
30-35m3/h |
10~14 m3/h |
25~30 m3/h |
30~35 m3/h |
Rotating speed |
17 r/min |
14 r/min |
13 r/min |
12.26r/min |
15 r/min |
13 r/min |
12.26 r/min |
Mixing motor |
4kw |
5.5kw |
7.5kw |
11kw |
5.5kw |
7.5kw |
11kw |
Hoisting motor |
4KW |
4.5KW |
5.5kw |
7.5kw |
4.5KW |
5.5kw |
7.5kw |
Pump motor |
0.55kw |
0.55kw |
0.55kw |
0.55kw |
0.75kw |
0.75kw |
0.75kw |
Weight |
1500kg |
1950kg |
2400kg |
4000kg |
2000kg |
3000kg |
4000kg |
Dimensions (L x W x H) |
2260x1990x2750 mm |
2766x2140x3000 mm |
3500x2200x3200 mm |
3680x3065x3565 mm |
2766x2140x3000 mm |
5200x2065x3200 mm |
5650x2065x3535 mm |
