Specifications
Mobile Concrete Mixing Plant1.Twin-shaft concrete mixer
2.Concrete Mixing Plant
3.High Efficiency
UTM-50 Mobile Concrete Mixching Plant
Descriptions of Mobile UTM-50 Mobile Concrete Mixching Plant:

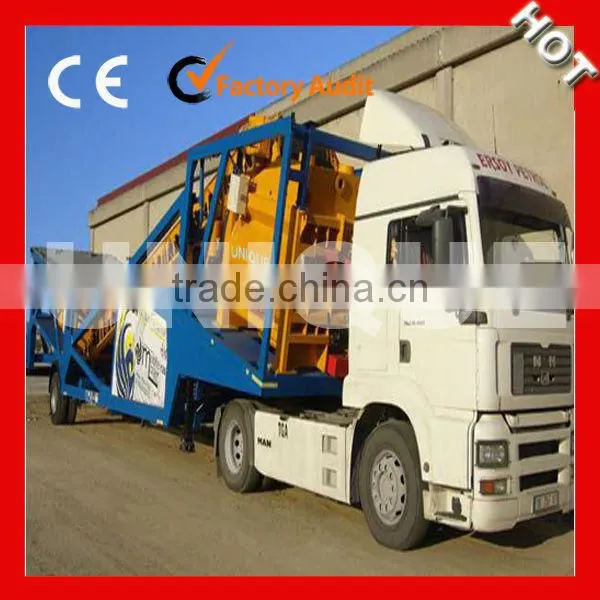

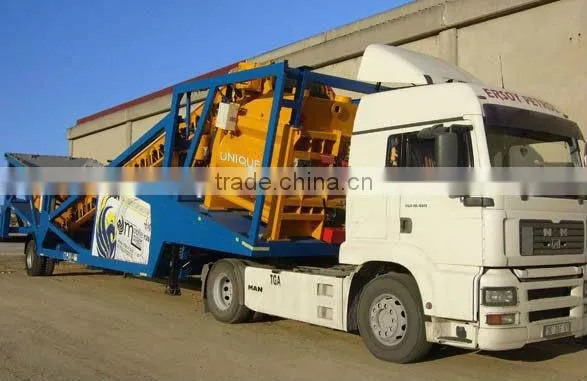

This series of mixing plant adopts the semi-pulling structure with running system and standard coupling pin included. It can be dragged by trailer. Without foundation and commissioning enables convenient transportation, the mixing plant can be divided into several standard modules, and then be packed into containers.
General Information of UTM-50 Mobile Concrete Mixching Plant:
Capacity: 50m3/h
Mixing Time: 60 S
Max Aggregate Size: 60/80 mm
Discharging Height: 3800 mm
Total Power: 85kw
Total Weight: 20 Ton
Total Dimensions: 18850×4150×8079 mm
Transportation: Double Axle Chassis
Technical Parameters of UTM-50 Mobile Concrete Mixching Plant:
1. MIXING SYSTEM

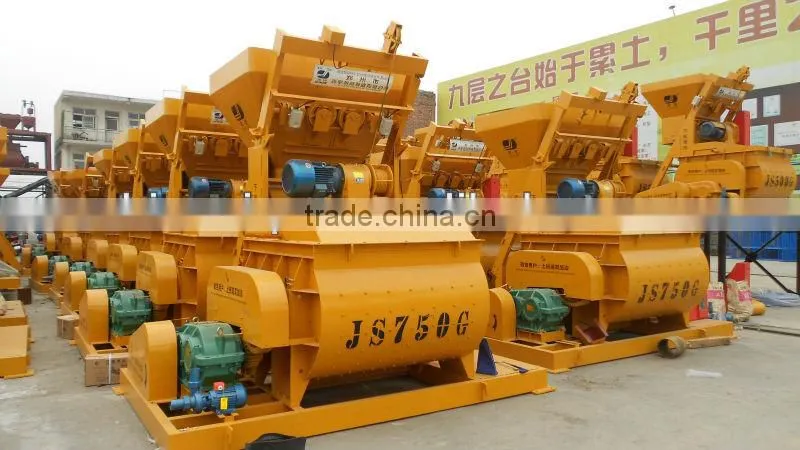

Twin Shaft Concrete Mixer: JS1000
Volume: 1600 L
Capacity: 1000 L
2. AGGREGATE SYSTEM
2.1Aggregate Batcher PLD1600
Volume: 4×8m3=32
Sort of aggregate: 4
2.2. Aggregate Belt Conveyor 1 unit
Width800 mm
Length: 18456mm
3. CEMENT SYSTEM
Cement Silo: 30 Ton
Cement Screw Feeder: 2 units
4. ADDITIVE SYSTEM
Additive silo capacity: 1 m3
5. WATER SYSTEM
6. AIR SYSTEM
Air Compressor: 1 unit
7. WEIGHING SYSTEM:
7.1 Aggregate weighing 1 unit
7.2 Cement weighing 1 unit
7.3 Water Weighing 1 unit
7.4 Additive Weighing 1 unit
8. CONTROL SYSTEM:
PLC command and control operation
Main electrical components: Schneider
17’’ colorful computer
Manuel and Auto Control is freely changeable

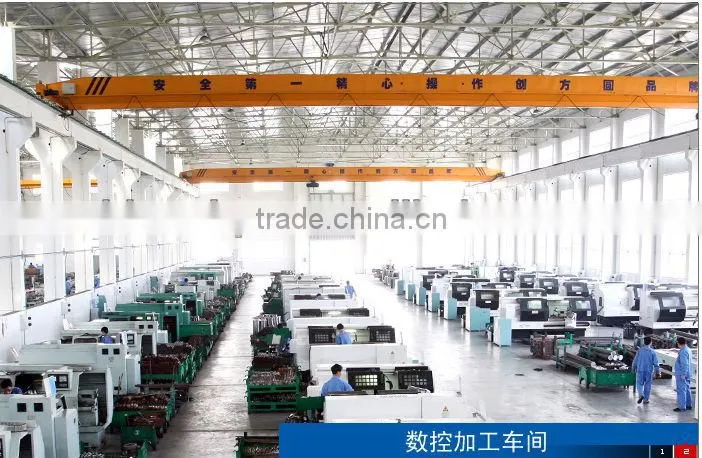

Our factory:
Our cetifications:
Welcome your inquiry.
