Specifications
UTM-75 Mobile Cement Mixing Batching Plant:1.High efficiency and low cost
2.Strong mixing quality
3.Short mixing time
General Information of UTM-75 Mobile Cement Mixing Batching Plant :
Item |
UTM-75 |
Parameter Model | |
Capacity |
75 m3/h |
Mixing Time |
60 S |
Max Aggregate Size |
60/80 mm |
Discharging Height |
3800 mm |
Total Power |
100 kw |
Total Weight |
30 Ton |
Total Dimensions |
200000×4200×8300 mm |
Transportation |
Double Axle Chassis |
Technical Parameters of UTM-75 Mobile Cement Mixing Batching Plant :

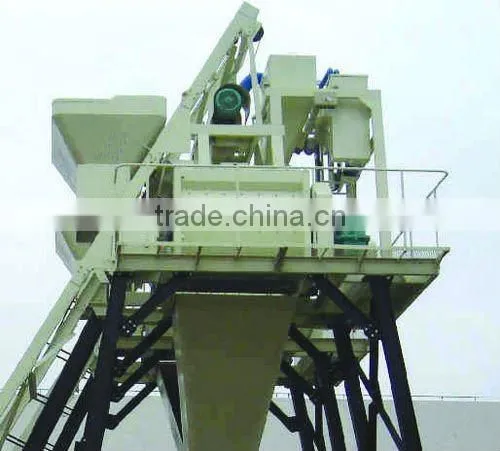

1. MIXING SYSTEM
Twin Shaft Concrete Mixer: JS1500
Volume: 2400 L
Capacity: 1500 L
Paddle quantity: 20pieces
Paddle Speed: 26 r/min
Mixing Motor: 2×30 kw
2. AGGREGATE SYSTEM

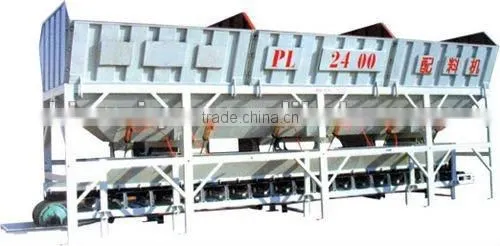

Aggregate Batcher PLD2400
Volume: 4×10m3=32
Sort of aggregate: 4
Capacity: 110 m3/h
Power: 11 kw
Sand vibrator: 0.37kw×2
Aggregate Belt Conveyor 1 unit
Width: 1000 mm
Length: 20000mm
Speed: 1.6 m/s
Motor: 11 kw
3. CEMENT SYSTEM
Cement Silo: 30 Ton
Cement Screw Feeder: 2 units
Diameter: Φ219mm
Length: 11.8 m
4. ADDITIVE SYSTEM
Additive silo capacity: 1 m3
Pneumatic valve: Φ50 mm
Pump: 3kw
5. WATER SYSTEM
Submersible pump: 3kw
Water pump: 0.75kw
Water tank: 3 m3
6. AIR SYSTEM
Air Compressor: 1 unit
Power: 7.5kw
Pressure: 0.7 Mpa
Airflew: 0.8 m3/min
7. WEIGHING SYSTEM:
Aggregate weighing 1 unit
Weighing Capacity: 1.6 m3
Precision: ±2%
Cement weighing 1 unit
Weighing Capacity: 1m3
Precision: ±1%
Water Weighing 1 unit
Weighing Capacity: 150 kg
Precision: ±1%
Additive Weighing 1 unit
Weighing Capacity: 40 kg

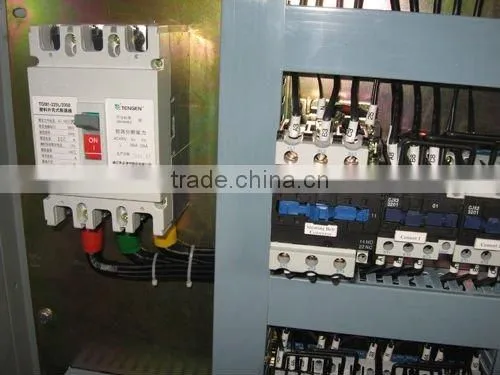

8. CONTROL SYSTEM:
PLC command and control operation
Main electrical components: Schneider
17’’ colorful computer
Manuel and Auto Control is freely changeable
The photos:

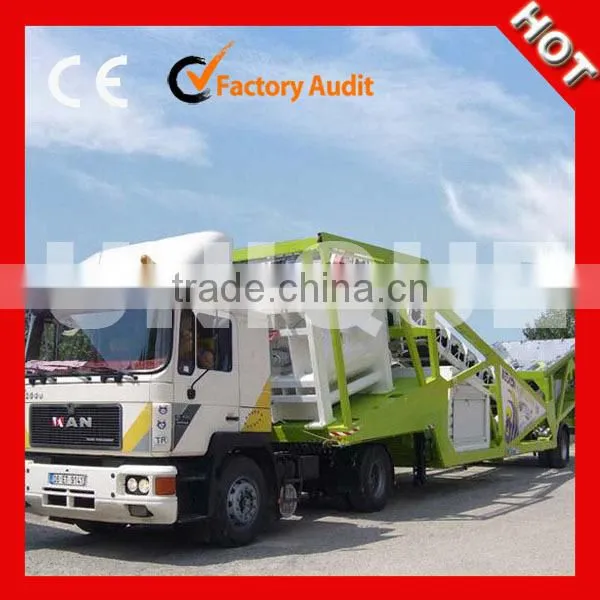

Hauling Mobile Mixing Plant:
Type |
UTM-25 |
UTM-35 |
UTM-50 |
UTM-75 |
Theoretical(m3/h) |
25 |
35 |
50 |
75 |
Mixer |
JS500 |
JS750 |
JS1000 |
JS1500 |
Aggregate batcher |
PLD800 |
PLD1200 |
PLD1600 |
PLD2400 |
Discharging Height |
3800mm |
3800mm |
3800mm |
3800mm |

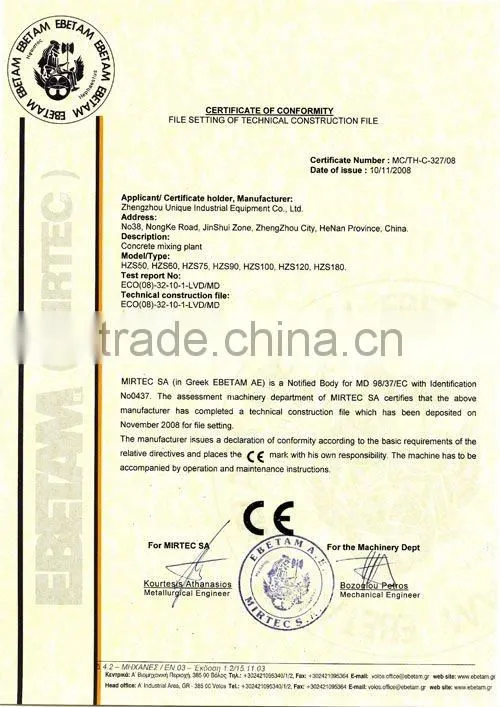

The certificate:
