Specifications
KG930 Bore Hole Drilling Rig Manufacturer1. Commins Engine
2. Reliable hydraulic system
3. Dig depth: 20-25 m

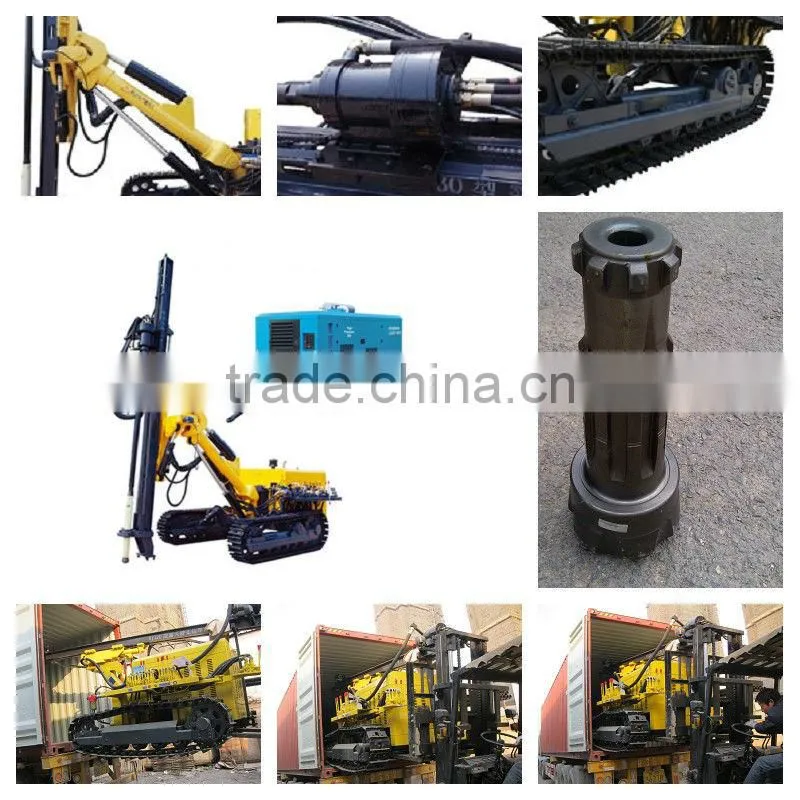

CN KG930 Bore Hole Drilling Rig Manufacturer
High Wind Pressure air Pneumatic Bore Hole Drilling Rig
Safe and Stable Travelling System of KG930 Bore Hole Drilling Rig
This machine has low gravity center and big ground clearance, and can easily travel on bumpy road. It is driven by special wheel motor. That brings it strong grade-ability and low failure rate.
Equipped with advanced auto-balance and brake system, makes the crawler rock drill travel stably and also greatly reduce its impact force to ensure the drive safety.
Special anti-lock device greatly improves the crawler rock drill’s reliability.
Vehicle-mounted diesel engine provides strong power, so the crawler rock drill can freely travel without air compressor.
Powerful and reliable engine of KG930 Bore Hole Drilling Rig
Adopt famous 4-cylinder diesel engine as driving force which has advantages of large power, small volume, small vibration and reliable operation.
Adopt patent diesel engine air inlet regulating device (Patent No. : 200820087606.3) and desert air filter three-stage filter. That strengthens the crawler rock drill’s adaptability to severe environment and lengthened the diesel engine’s service life.
New Drilling Boom of KG930 Bore Hole Drilling Rig
Optimally designed luffing mechanism and round drilling boom with the advantages of neoteric structure and easy maintenance greatly improves the drilling hole’s coverage area. That also makes low-order horizontal hole drilling available.
Powerful feed mechanism and rotating system of KG930 Bore Hole Drilling Rig
The new rotating system is composed of orbit hydraulic motor and planetary gearbox. That provides the crawler rock drill with strong torque reserve and reduce the sticking drilling rate.
The feed mechanism driven by high power hydraulic motor can generate 20 KN lifting power. Adjust the pressure regulating valve on the control valve can got the favorable driving power which is required by the working condition.
Specification of KG930 Bore Hole Drilling Rig
|
Model
Specification |
KG930 |
Improved by: |
KY130 |
Rock hardness |
F=6-20 |
Hole diameter(mm) |
80-125 |
Drill depth(m) |
25 |
Pressure (Mpa) |
1.0-2.4 |
Air consumption (M3/min) |
9-18 |
Rotating speed (Km/h) |
0-70 |
Lifting capacity (KN) |
18 |
Drill rod specification(mm) |
76×3000 /89×3000 |
Gradeability |
30° |
|
Ground clearance(mm) |
320 |
Walking speed (km/h) |
2.0 |
Drill arm rising angles (°) |
-15~+50 |
Drill arm swing angle (°) |
±45 |
Carriage swing angle(°) |
±50 |
Carriage pitch angle (°) |
180 |
Carriage Compensation(mm) |
1200 |
|
Overall Dimension (L*W*H)(mm) |
5600×2340 ×2550 |
Total Weight (Kg) |
5500 |
Note: |
Pneumatic-hydraulic |
Comparison between KY130 and KG930 Bore Hole Drill Bore Hole Drilling Rig ing Rig
|
KY130 |
KG 930 |
Advantages |
Drill boom |
|
New type drills boom |
Simultaneously drill horizontal hole and vertical hole |
Hydraulic system |
19.2 pump |
30pump, big diameters, new type valve groups, new type joint. |
Flow is increased, resistance is reduced. |
Carriage parts |
Channel Steel Carriage |
thick plate reinforced carriage, pressing plate |
Rigidity is increased, Abrasion is reduced |
Air control system |
Ball valve |
side valve type concussion relief valve |
Easy operation |
Oil pump |
28.2 |
32 |
Flow is increased |
Rotation speed |
60 r/min(1700) |
90 r/min (diesel engine 1700r/min) 120 r/min(diesel engine 2200 r/min) |
Improved by 50% |
Advance speed |
530mm/s |
580mm/s |
Improved by 10% |
Specification of Mobile Screw Air Compressor
Model |
Work pressure |
Capacity |
Diesel engine (hp) |
Weight |
Dimension |
LGCY-12/10 |
1.0 |
12 |
YuChai |
3500 |
3600*1900*2200 |
LGCY-13/13 |
1.3 |
13 |
Cummins |
3500 |
3600*1900*2200 |
LGCY-15/13 |
1.5 |
15 |
YuChai |
3500 |
3600*1900*2200 |
LGCY-18/17 |
1.7 |
17 |
Cummins |
3500 |
3600*1900*2200 |

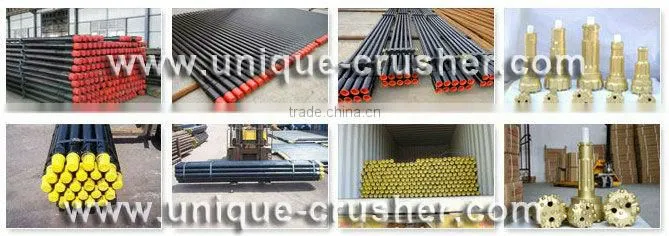

PARTS OF Portable Drilling Rig

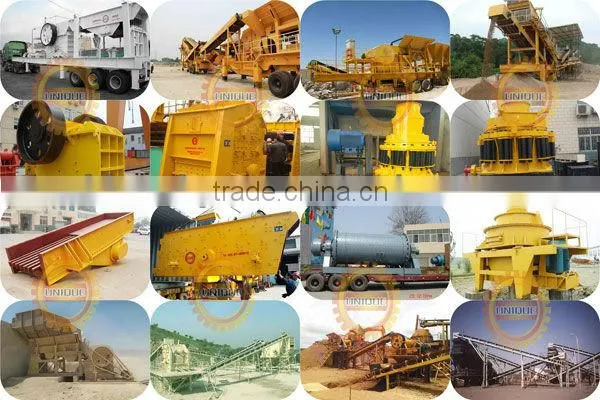

OUR PRODUCT SCOPE:
1. Mobile Crusher: portable jaw crusher, portable impact crusher, portable cone crusher, portable construction waste crushing plant
2. Stone Crusher: jaw crusher, impact crusher, Symons cone crusher, spring cone crusher, sand making machine, hammer crusher, ball mill etc.
3. Auxiliary equipment: vibrating feeder, vibrating screen, belt conveyor, crawler rock drill
More information about our Bore Hole Drilling Rig, please feel free to contact with us by phone or e-mail at any time, we will try our best to cooperate with you!
