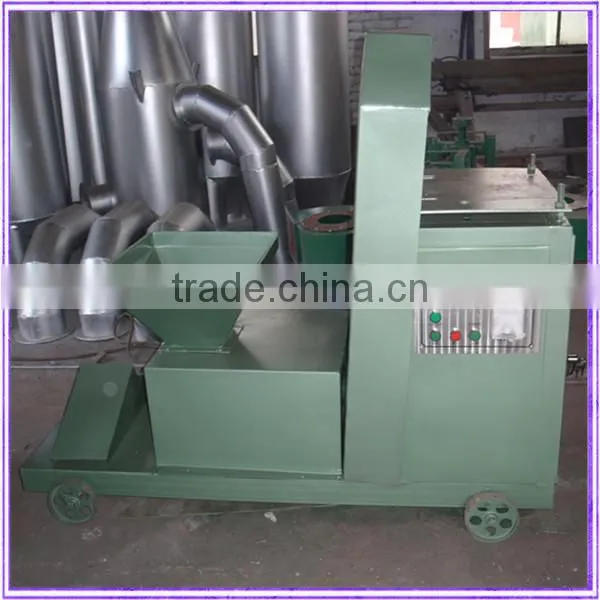

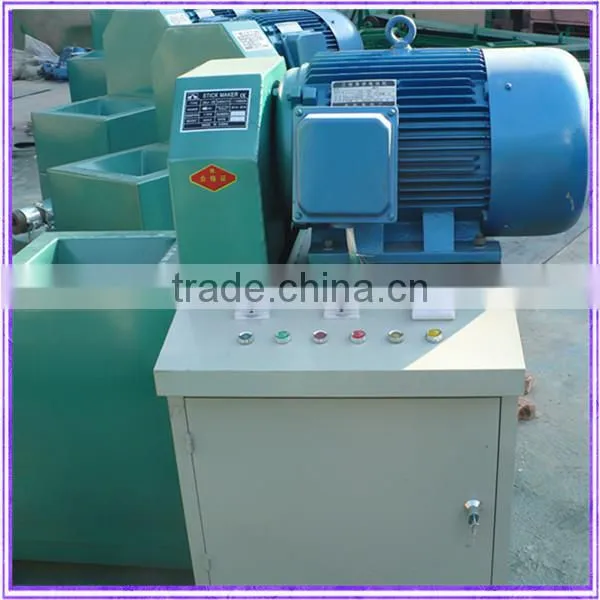

wood briquette machine /sawdust briquette machine /rice husk briquetting machine
- 500 Set / Sets per Month
- shanghai qingdao
- T/T Credit Card
- Cheap Charcoal Briquette Machine(86-15978436639)
- Wholesale Price Charcoal Briquette Machine(86-15978436639)
- Ball Charcoal Briquette Machine(86-15978436639)
- Charcoal Briquette Making Plant(86-15978436639)
- Small Scale Charcoal Briquette Machine(0086-15978436639)
- Charcoal Briquette Machine Small(0086-15978436639)
Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | HYPH |
Model Number: | ZBJ-II wood briquetting machine | Voltage: | 380v | Power(W): | 18.5kw |
Weight: | 700kg | Dimension(L*W*H): | 1.7x0.65x1.3m | Certification: | CE,SGS,ISO |
Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Introduction of rice husk briquetting machine
1.Briquettes are made by grinding Biomass and sawdust into a homogeneous pulp and forming this into a briquette under very high pressure. High pressure & pressing releases one of the natural components of wood - lignin which has the property of becoming liquid at high pressure (temperature) and, as it subsequently cools, it binds the wood together in its new form Briquettes.
2.After the processing of drying, compressing under the high pressure and temperature, the biomass briquette is characterized by high density, small in size
Raw Materials of wood briquetting machine
Any types of forestry waste and forest waste can be used for make briquettes Such as maize stalks, soybean stalks, broomcorn stalks, cotton stalks, rape stalks, peanut plants, sunflower stalks, bamboo sawdust, bagasse , wood chips, rice husk, coffee husk, coir pith, jute sticks, groundnut shells, Bamboo, wood, straw dust, Mustard stalk and cotton stalks ,nutshell, coconut shell ,etc
The process for wood briquetting machine
1. Crush the raw material into small pieces (diameter is about 3-5mm)
2. Dry the material by machine or dried it in the sun , till the moisture is less than 12%
3. Put the material into feed let of briquette machine
4. Produce the briquette stick from biomass material without any additive
4. Carbonized the briquette stick
Main data for wood briquette machine
Model | ZBJ-III | ZBJ-II | ZBJ-I |
Output kg/h | 300-350 | 200-300 | 150-200 |
Motor Power (kw) | 18.5 | 15 | 11 |
Electric heater (kw) | 3*2.2 | 3*1.5 | 3*1.5 |
Size of products (mm) | Ø80 | Ø50 | Ø50 |
Size (mm) | 1920*630*1550 | 1680*550*1280 | 1650*530*1250 |
Weight (kg) | 850 | 780 | 720 |
