Specifications
Wood Charcoal briquette Making Line1.straw briquette making line
2.briquette diameter:50-80mm
3.use sawdust,biomass straw
2014 Hot Sell Wood Charcoal briquette Making Line
Introduction
1) Without adding any adhersive and harmful chemicals;
2) Moisture content of raw materials is within 8%-12%;
3) Application of advanced hot air drying system, with excellent drying results;
4) Carbonization equipment through the dry distillation purification, the smoke can convert the semi-finished bars to smoke free, tasteless, non-toxic cleaning charcoal, with professional technical support and risk free.
Main materials
Groundnut shell, sugarcane biogases, caster shell/stalk, sawdust, coffee husk, paddy straw, sunflower stalk, cotton stalk,
tobacco waste mustard stalk, jute waste, bamboo dust, tea waste, wheat straw, palm husk, soybean husk, coir pitch bark/straw,
rice husk, forestry waste, wood chips and many other agricultural waste.
Main Machines for Wood Charcoal briquette Making Line

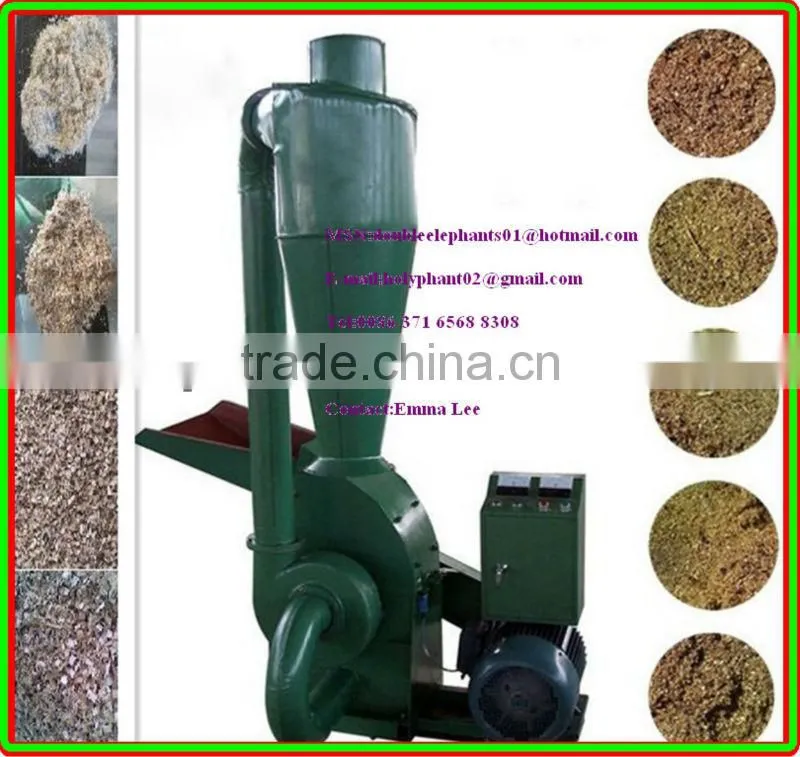

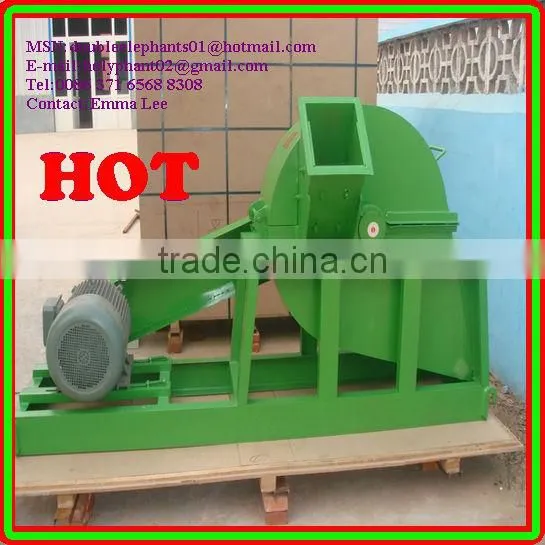

crusher, screener, dryer, briquetter, carbon bar furnace, conveyor, power box, charcoal packager, etc.
a. Crush the raw material into small pieces (diameter is about 3-5mm)

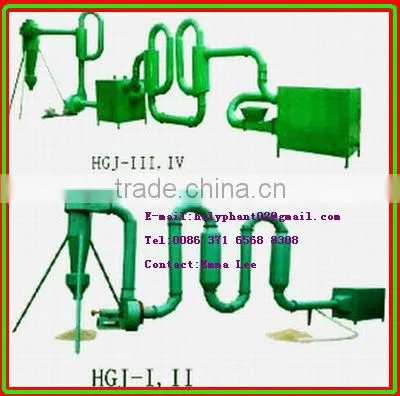

b. Dry the material by machine or dried it in the sun, till the moisture is less than 12%
c. Put the material into feed let of briquette machine

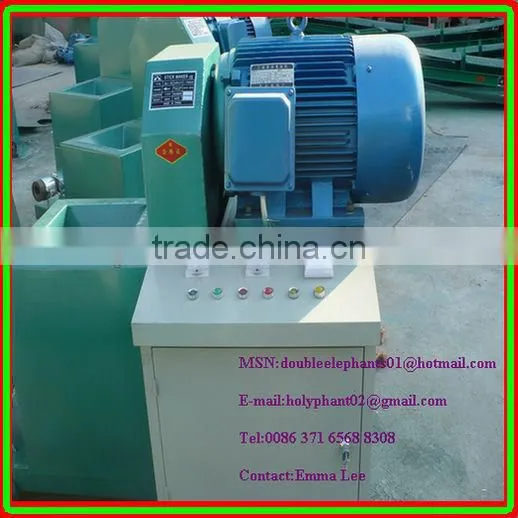

d. Produce the briquette stick from biomass material without any additive

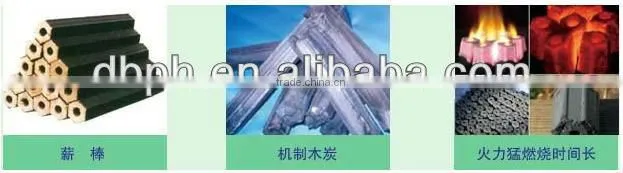

e. Carbonized the briquette stick

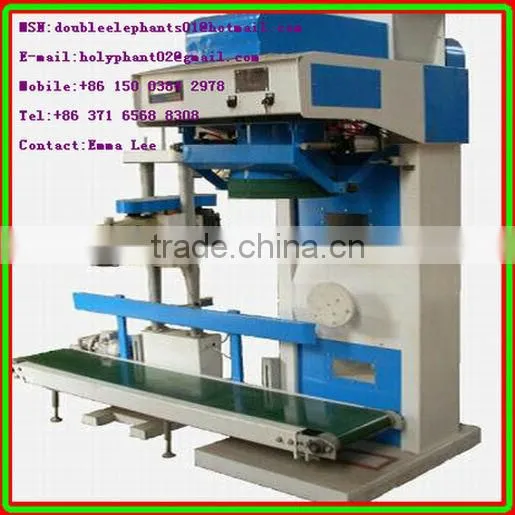

f. Packed charcoal briquette
Main capacity: 0.3-10t/d
Main data
2.5t raw materials could get one ton wood charcoal.
Lab report of finished charcoal made from normal sawdust:
Name of test |
Charcoal |
Moisture content (% wt) |
7.11 |
Ash content (% wt) |
15 |
Fixed carbon (% wt) |
70 |
Calorific value kcal/kg |
6500 |
Volatile matter (%) |
9.2 |
smell |
Acceptable |
smoke |
Burning without smoke |
hardness |
normal |
Sulphur (%) |
0.061 |
