Home > Industrial Equipment & Components > Power Transmission Parts > Transmission Chain > LH-BL Series Leaf Chain
LH-BL Series Leaf Chain
US$ 1 - 300
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Type:
Other, Leaf Chain, LH0822.LH0823.LH0834...
Material:
Other, Alloy, Alloy
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Standard or Nonstandard
Standard
Type
Other, Leaf Chain, LH0822.LH0823.LH0834...
Material
Other, Alloy, Alloy
Tensile Strength
Ultimate tensile strength:22.2-1734.8/min
Place of Origin
Zhejiang, China
Brand Name
DALON
Model Number
Leaf Chain, Leaf Chain
Specifications
LH-BL series leaf chain1)Leaf Chain:Alloy
2)QS:DIN / JIS / GB
3)QM:ISO 9001:2000
Product Description

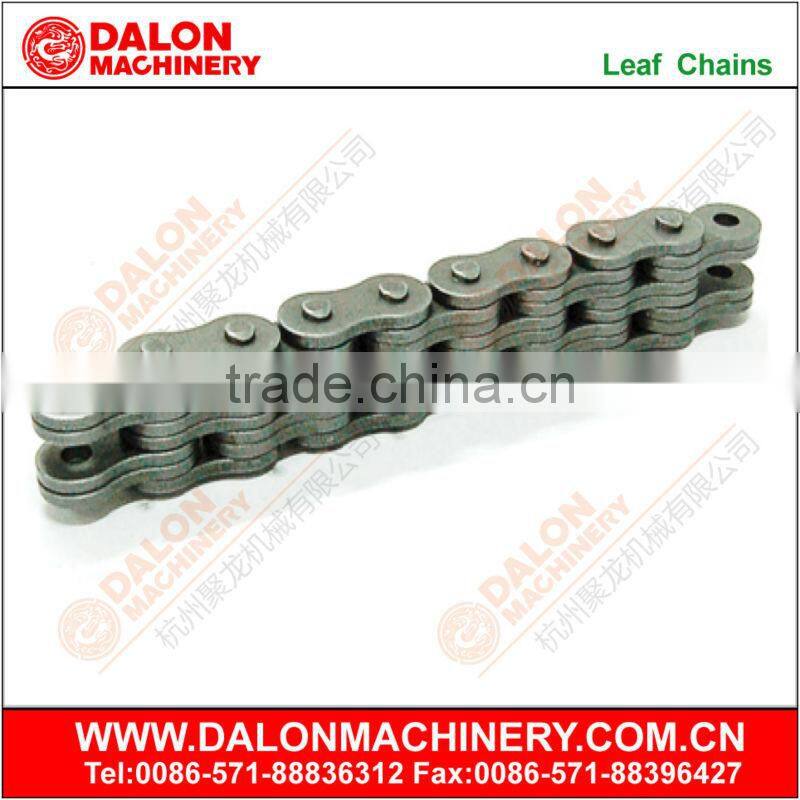

Leaf Chain
LH-BL series leaf chain
We always focus on quality as you are .....

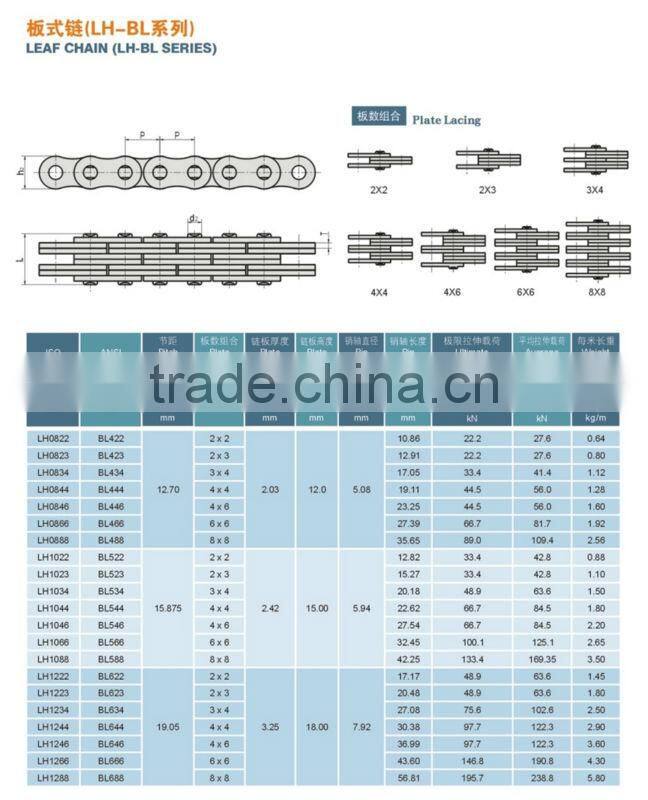

| DIN/ISO CHAIN NO. | ANSI CHAIN NO. | PITCH | PLATE LACING | PIN DIAMETER | PIN LENGTH | PLATE DEPTH | PLATE THICKNESS | ULTIMATE TENSILE STRENGTH | AVERAGE TENSILE STRENGTH |
| p | d2 max | L max | h2 max | T max | Q min | Qa | |||
| mm | mm | mm | mm | mm | kN | kN | |||
| LH0822 | BL422 | 12.70 | 2X2 | 5.08 | 10.86 | 12.0 | 2.03 | 22.2 | 27.6 |
| LH0823 | BL423 | 2X3 | 12.91 | 22.2 | 27.6 | ||||
| LH0834 | BL434 | 3X4 | 17.05 | 33.4 | 41.4 | ||||
| LH0844 | BL444 | 4X4 | 19.11 | 44.5 | 56.0 | ||||
| LH0846 | BL446 | 4X6 | 23.25 | 44.5 | 56.0 |
Our Services
We can produce roller chain,leaf chain,motorcycle chain and so on...
In addition to the existing product specifications, we also can produce according to the drawings provided by customers.
Packaging & Shipping
Packing:plastic bag/carton box/wooden case
Shipping:by sea
FAQ
We accept L/C D/P T/T.
Company Information
Facility Overvierw:
DALON MACHINERY CO.,LIMITED
Top Choice of Industrual solution......
Add: #403-405 ZeZhu Mansion, No.368 HuShu Road (S),
Hangzhou,Zhejiang Province,China 310006
Tel:+86-571-88836312 (8lines) ; +86-571-88365029 ; Fax: +86-571-88396427
