Home > Industrial Equipment & Components > Power Transmission Parts > Transmission Chain > Other Simplex Roller Chain
Other Simplex Roller Chain
US$ 1 - 300
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Type:
Other, Roller Chain, 08A-1,10A-1,12A-1...
Material:
Other, Alloy, Alloy
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Heavy-duty Series Cottered Type Roller ChainUS$ 1 - 300MOQ: 100 Pieces -
B Series Straight Plate Roller ChainUS$ 1 - 300MOQ: 100 Pieces
-
A Series Straight Plate Roller ChainUS$ 1 - 300MOQ: 100 Pieces
-
B Series Double-strand Roller Chain and Bushing ChainUS$ 1 - 300MOQ: 100 Pieces
-
B Series Single-strand Roller Chain and Bushing ChainUS$ 1 - 300MOQ: 100 Pieces
Standard or Nonstandard
Standard
Type
Other, Roller Chain, 08A-1,10A-1,12A-1...
Material
Other, Alloy, Alloy
Tensile Strength
Ultimate tensile strength:16.90-110/min
Place of Origin
Zhejiang, China
Brand Name
DALON
Model Number
Roller Chain, Roller Chain
Specifications

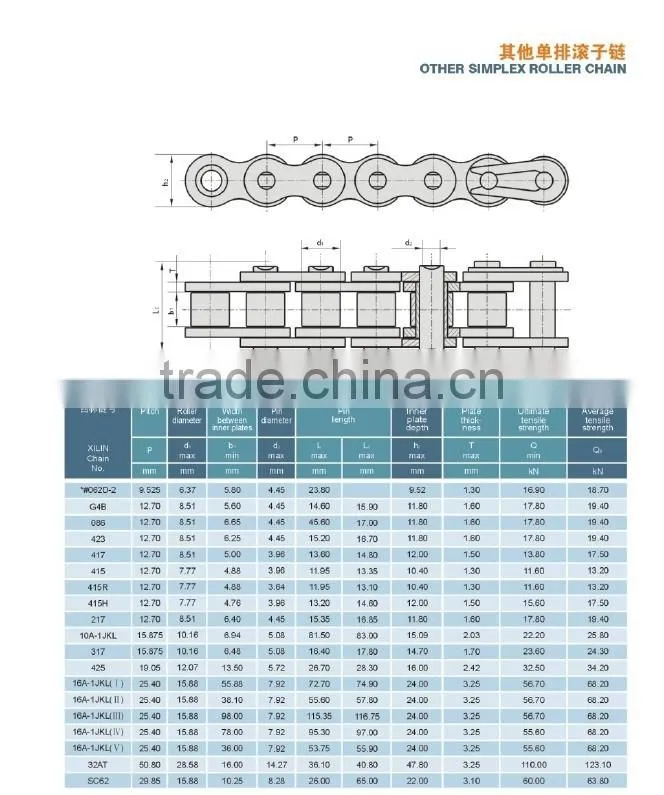

other simplex roller chain1)Roller Chain:Alloy
2)QS:DIN / JIS / GB
3)QM:ISO 9001:2000
Product Description
Roller Chain
other simplex roller chain
We always focus on quality as you are .....
| DIN/ISO CHAIN NO. | PITCH | ROLLER DIAMETER | WIDTH BETWEEN INNER PLATES | PIN DIAMETER | PIN LENGTH | INNER PLATE DEPTH | PLATE THICKNESS | ULTIMATE TENSILE STRENGTH | AVERAGE TENSILE STRENGTH | |
| p | d1 max | b1 min | d2 max | L max | Lc max | h2 max | T max | Q min | Qa | |
| mm | mm | mm | mm | mm | mm | mm | mm | kN | kN | |
| *#062D-2 | 9.525 | 6.37 | 5.80 | 4.45 | 23.80 | 9.52 | 1.30 | 16.90 | 18.70 | |
| G4B | 12.700 | 8.51 | 5.60 | 4.45 | 14.60 | 15.90 | 11.80 | 1.60 | 17.80 | 19.40 |
| 086 | 12.700 | 8.51 | 6.65 | 4.45 | 45.60 | 17.00 | 11.80 | 1.60 | 17.80 | 19.40 |
| 423 | 12.700 | 8.51 | 6.25 | 4.45 | 15.20 | 16.70 | 11.80 | 1.60 | 17.80 | 19.40 |
| 417 | 12.700 | 8.51 | 5.00 | 3.96 | 13.60 | 14.80 | 12.00 | 1.50 | 13.80 | 17.50 |
Our Services
We can produce roller chain,leaf chain,motorcycle chain and so on...
In addition to the existing product specifications, we also can produce according to the drawings provided by customers.
Packaging & Shipping
Packing:plastic bag/carton box/wooden case
Shipping:by sea
FAQ
We accept L/C D/P T/T.
Company Information
Facility Overvierw:
DALON MACHINERY CO.,LIMITED
Top Choice of Industrual solution......
Add: #403-405 ZeZhu Mansion, No.368 HuShu Road (S),
Hangzhou,Zhejiang Province,China 310006
Tel:+86-571-88836312 (8lines) ; +86-571-88365029 ; Fax: +86-571-88396427
Send Inquiry to This Supplier
Business Type
Trading Company
Year Established
2002
Factory Size
Below 1,000 square meters
Total Employees
11 - 50 People
