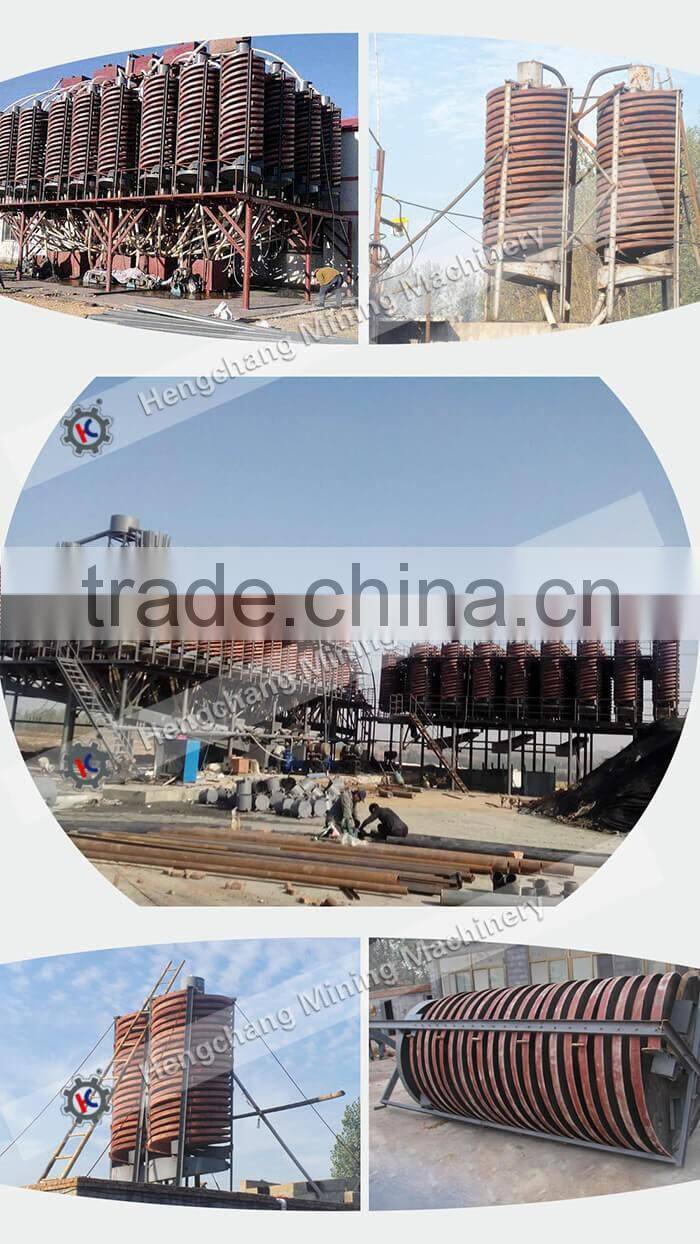

Spiral concentrator is our company's concentrating experienced scientific product, which is the best concentrating equipment, especially for concentrating sand ore in beach, riverside, seashore and stream.
The product is made of the fiberglass lined with wear-resistant polyurethane and corundum cover; The advantages are light, moisture proof, anti-rust, wear proof, anti corrosion and no noise, properly suitable for the different feeding particle sizes and grades. It is the domestic advanced level, the new highly effective equipment.
Working principle
Spiral Chute is working under the the force of water flow, gravity, inertial centrifuge and friction. Slurry is pumped to the top of the spiral , and it enters a feed distributor that evenly distributes the feed to each spiral concentrator. The design and shape of the spiral make it work, when combined with gravitational acceleration. As the slurry travels the spiraling path down the spiral, mineral grains settle and start sorting according to size, density and to a lesser extend shape. Low density particles are carried with the bulk of the water towards the outside of the spiral , while particles with the greatest density migrate towards the inside of the spiral.
Main Features of Rotary Spiral Chute
1. Reasonable structure and small occupation area
2. High recovery, high efficiency
3.Precise separation
4. Non-required power
5. Light in weight, anti corrosion, rust and wear resistant
6. Simple installation and Minimal maintenance requirements
7. Low operating cost and long working life
8. Reliable running with minimal operator attention
9. Strong adaptability to fluctuation of feeding amount, density, size and grade
10.The surface of corundum forms strong friction the concentration effect surpass plastic surface

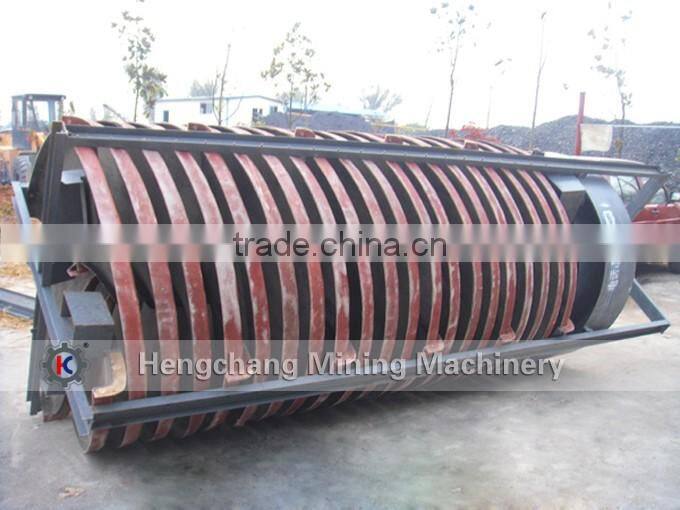

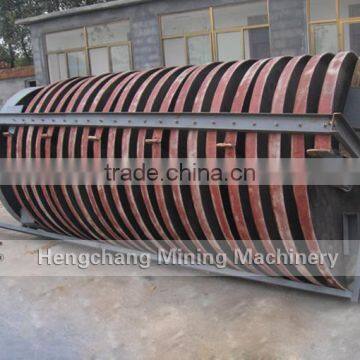

Machine Parts
Name: Rotary Spiral Chute
Brand: Hengchang Rotary Spiral Chute
Original: Jiangxi, China (Mainland)
Main Features
Name: Rotary Spiral Chute
Material:Iron
Capacity:2.4-3t/h
Ore Concentration(%):25-55
Certification:ISO and CE
Screw picth:500mm
Heads number:2
Feeding size:0.05-0.6mm
Motor power:0.8kw
Dimension:1150x1150x3100
Weight:863kg
Pre-Sales Service
*sample testing support.
* View our Factory.Inquiry and consulting support. Many domestic and overseas customers visited our factory every year.
* We offer on-site of testing and training.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Warranty period :For the whole using life
Q:Are you the manufacturer?
A:Yes,we are Manufacturer ,not Dealer.Direct factory sale makes price more competitive.Q: Can I visit your factory?
A: Yes. Many domestic and international customers are always visit our factory every year.
Q: How long is the warranty of your equipment?
A: Our warranty period is one year generally.
Q: Do you provide after-sale service?
A: Yes, after sale service for the whole using life.
Q: Do you provide equipment testing and training?
A: Yes. we offer testing and traning on-site andwe can also send professional engineers to the working site for equipment installation, adjustment, and operation training.
Q: Do you provide product installation flow chart?
A: Yes. Our experienced engineers are provide product installation drawings.en an unknown printer took a galley of type and scrambled it to make a type specimen book.
