Gold jig concentrator
Description of gold jig
Our Saw-tooth wave jigger is a new type of energy saving and high efficient gravity separation equipment and developed based on the traditional Sine gold equipment. The difference between Saw-tooth Wave Ladder Jig and Sine Wave Jig is that the pulsation curve for Mineral separation jigging machine is saw-tooth wave shape, with speedy upward flow and slow downward flow. Bed layer is elevated integrally and slowly dropped with a long effective loose time, allowing significant increase of handling capacity for unit screen surface, decrease of lower limit of grain size recovery and large save of make-up water for undersize fraction.
Industrial tests carried our of Saw-tooth Wave Ladder Jig and Sine Wave Jig for comparison showed that the recovery rate for operation of Saw-tooth Wave Ladder Jig is raised by Sn:3.01%, W:5.5%, Pb:1.63%, Zn:2.04%; The water consumption reduces 30%-40% with water consumption being decreased by 30-40%. The area reduces 1/3 and the stroke may adjust also.
Application of Gold Jig:
Saw-tooth wave jigger is capable of handling almost full sizes of mineral materials other than very fine material. It features simple process operation, heavy duty equipment handling capacity with final products being obtained through one time separation. They can achieve a good result in processing such as placer gold, tantalum, niobium, titanium, tungsten, iron, tin, hematite, copper, coal, manganese, barite, zirconium and chrome etc.
Technical Specification of Gold Jig:
Model |
JT1-1 |
JT2-2 |
JT3-1 |
JT4-2 |
JT5-2 |
|
|
Jigging Chamber
|
Shape |
trapezoidal |
rectangular |
trapezoidal |
rectangular |
trapezoidal |
Length(mm) |
450~900 |
1070 |
960~2000 |
1510 |
1200~2000 |
|
Width(mm) |
1500 |
1070 |
1950 |
1510 |
3150 |
|
Column Number |
single |
single |
single |
single |
single |
|
|
Chamber Number(one) |
1 |
2 |
1 |
2 |
2 |
|
Single Area(m2) |
1 |
1.14 |
3.3 |
2.28 |
2.12(single) 2.77(double) |
|
Aggregate Area(m2) |
1 |
2.28 |
3.3 |
4.56 |
5 |
|
Feeding Particle Size(mm) |
5 |
5 |
<20 |
8 |
8 |
|
Processing Capacity(t/h) |
2~3 |
7.5~15 |
10~15 |
12~16 |
10~20 |
|
Water consumption(m3/h) |
1~2 |
1~2 |
1~2 |
1~2 |
1~2 |
|
Diaphragm |
stroke(mm) |
15,20,25 |
12,17 |
10~47 |
6.5~26 |
15,20,25 |
frequency(min-1) |
80,100,120 |
60~200 |
80~100 |
80~150 |
80~110 |
|
Motor |
model |
YCT160-4A |
YCT32-4 |
YCT-4B |
YCT160-4B |
YCT200-4A |
power(kw) |
2.2 |
3 |
5.5 |
7.5 |
7.5 |
|
Dimensions(mm) |
2270×1110×1890 |
3225×1550×2050 |
2745×2000×3030 |
4240×1990×2750 |
3600×2000×2600 |
|
Weight(kg) |
900 |
1640 |
3260 |
3500 |
4500 |
|
Features & Benefits our gold jig concentrator
1. Compact structure and small occupation area
2. Energy saving and continuous working
3. High recovery, high unit throughput and low water consumption
4. Simple installation and Minimal maintenance requirements
5. Stroke and frequency of stroke can be easily adjusted

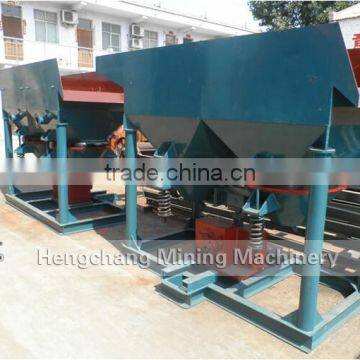

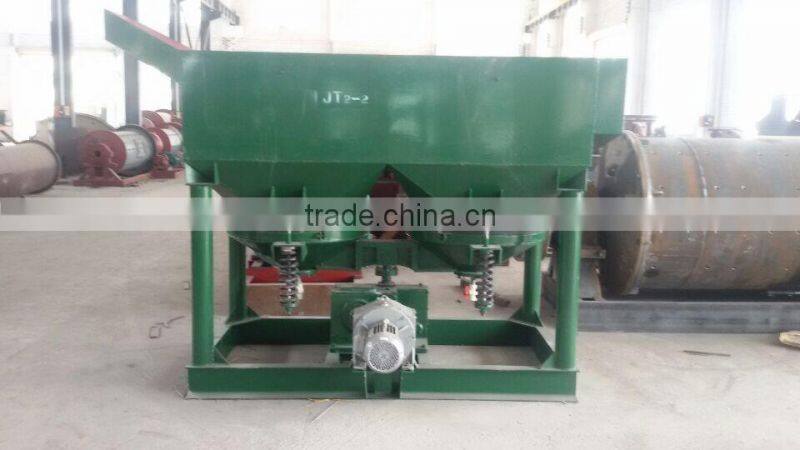

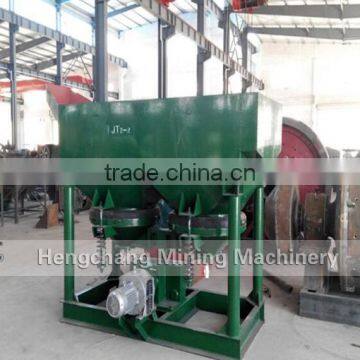

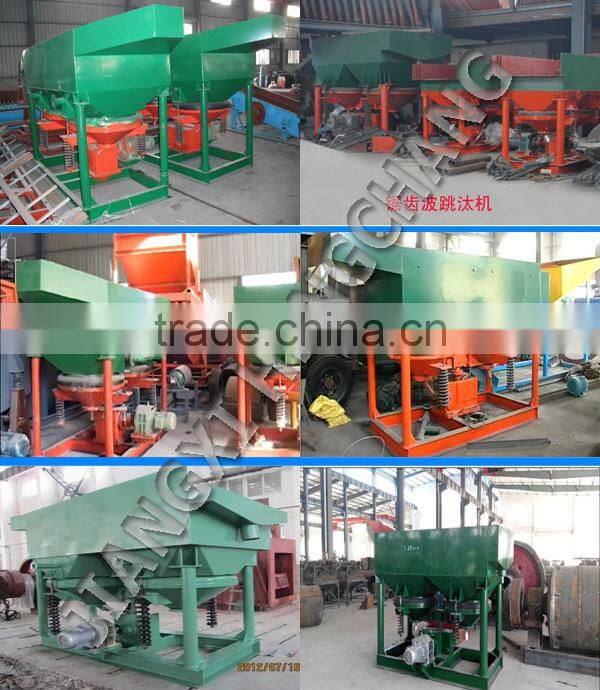

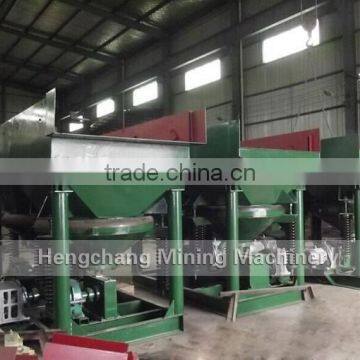

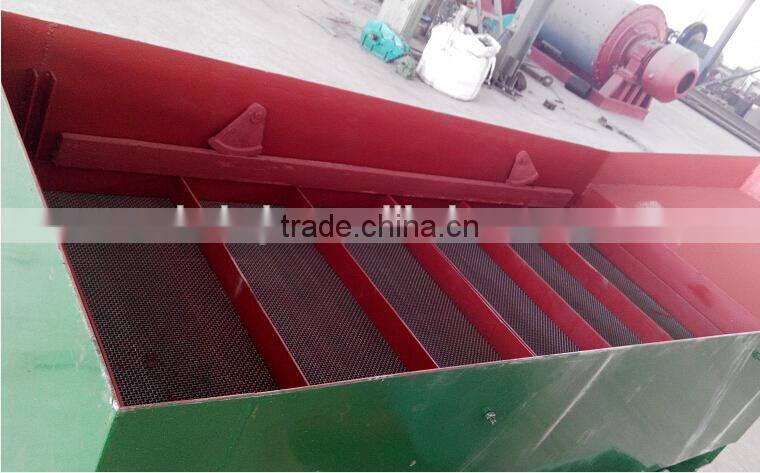

Pictures show that gold jig concentrator in our workshop

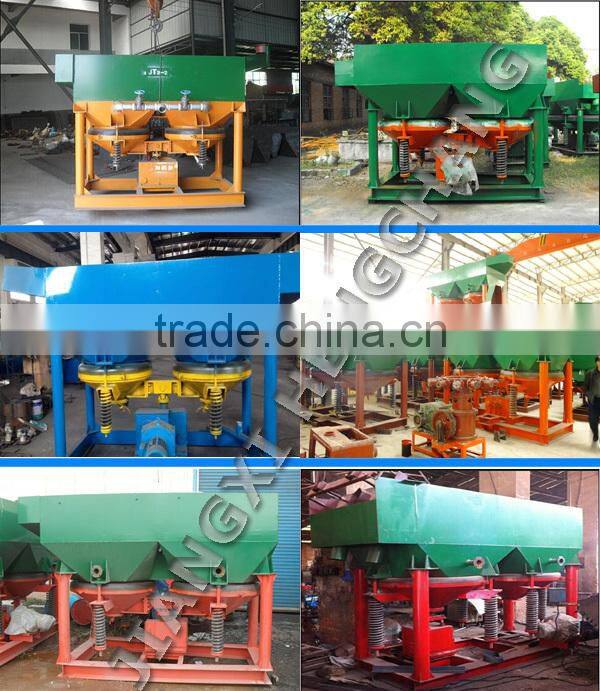

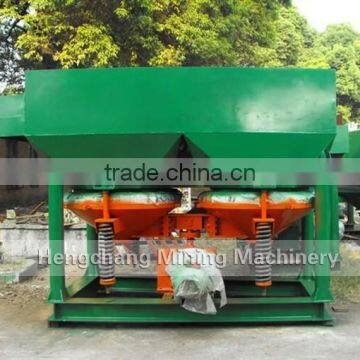

Delivery pictures of machine for gold jig concentrator :

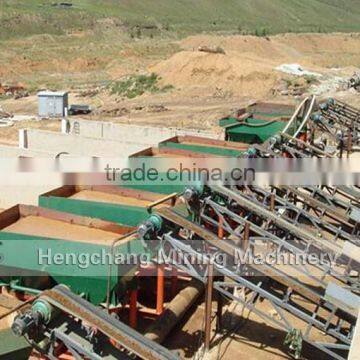

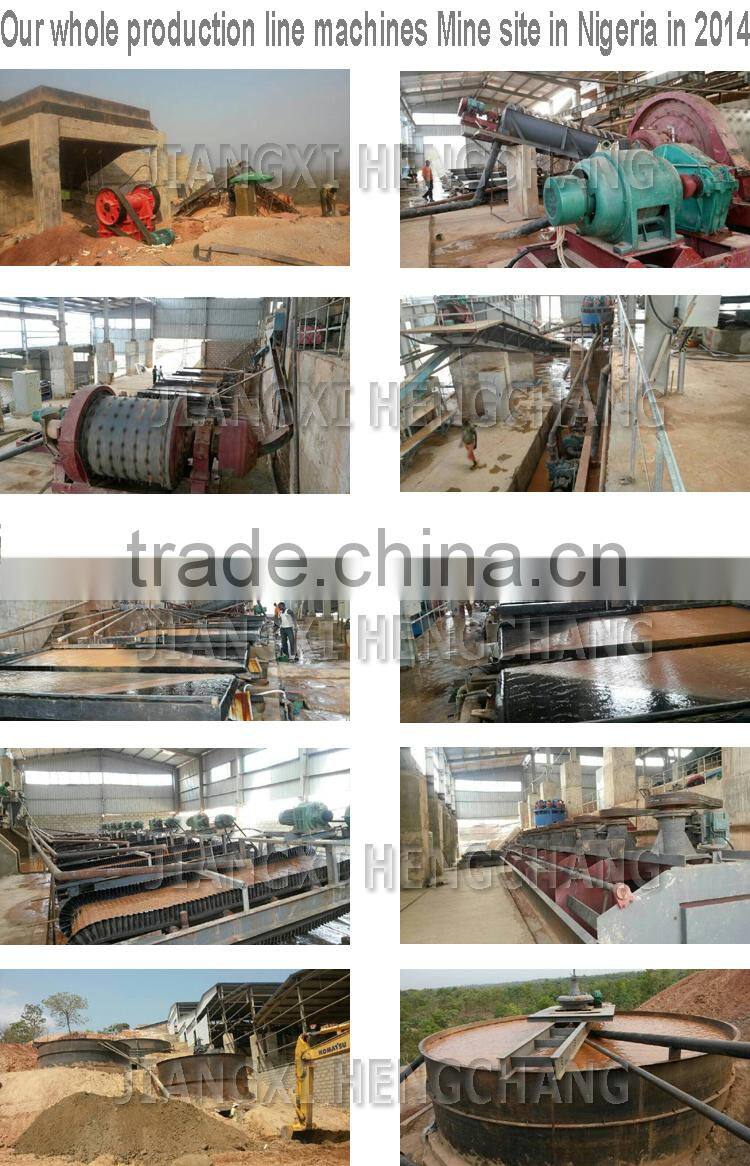

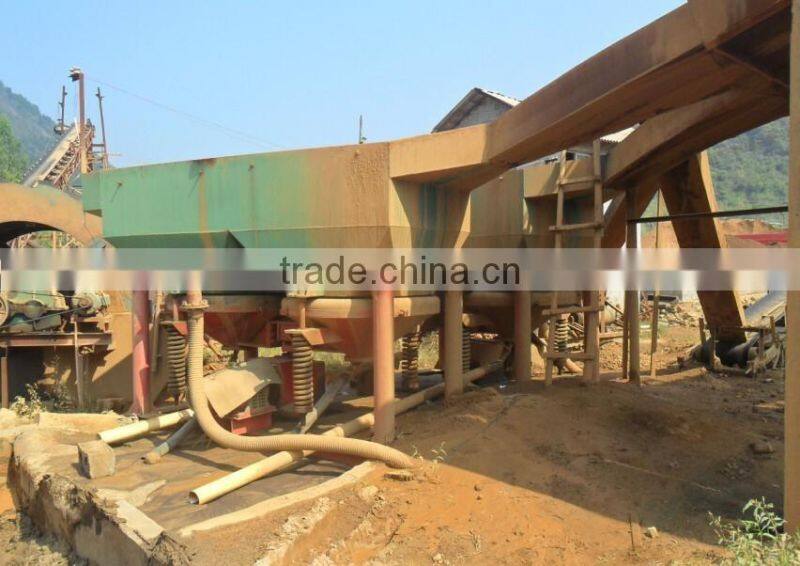

Pictures show that gold jig concentrator in our mine site
