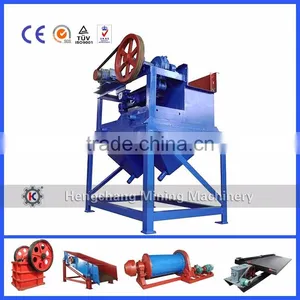

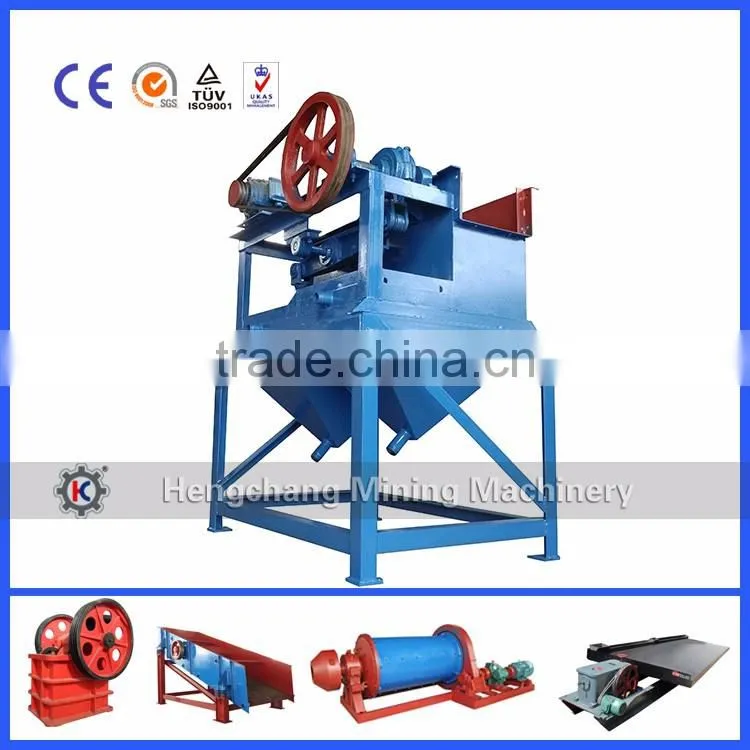

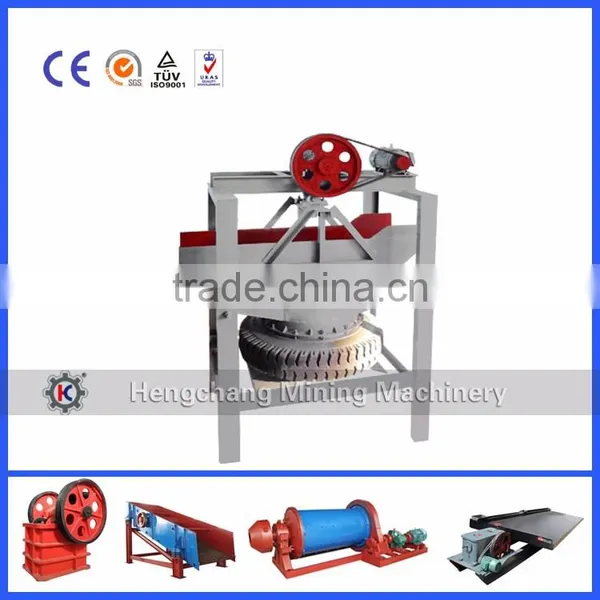

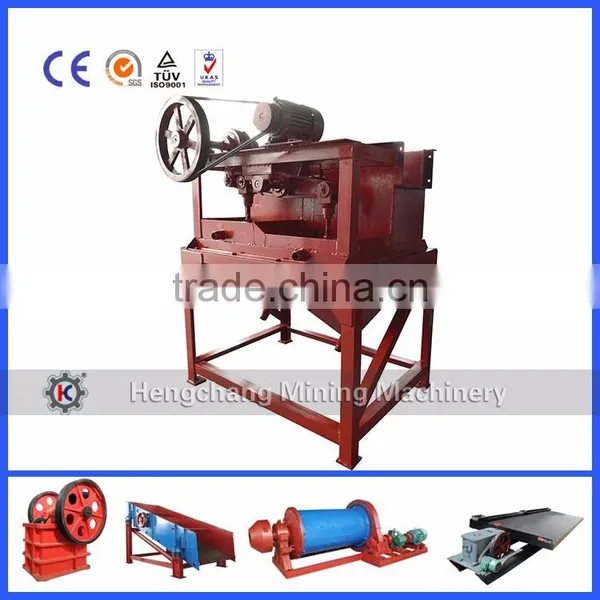

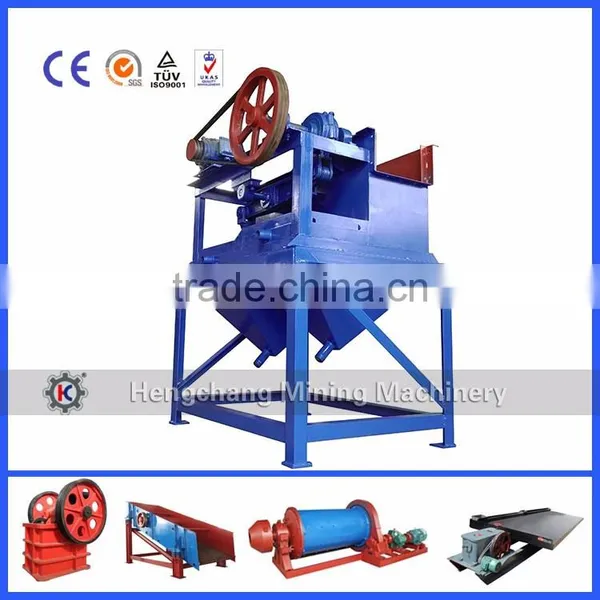

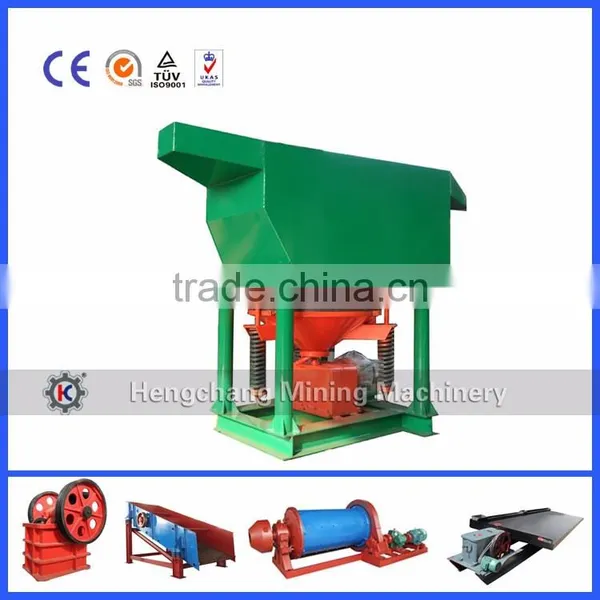

Hot sale high efficient gold jig separator for nugget collecting
- 100 Set / Sets per Month
- Xiamen Guangzhou Shenzhen
- Credit Card
- Hot sale best price metal ore crusher,metal ore crusher with CE
- Hot Selling jaw stone crusher jaw grinder and crusher manufacturer
- Hot Selling jaw stone crusher jaw crusher capacity 110-250tons congo
- Hot sale New type sand making plant in india for sale with low price
- High quality crushed stone processing and pulverized mineral processing
- Zenith construction sand making plant,construction sand making plant price
Product Details
Condition: | New | Type: | Gravity Separator | Production Capacity: | 98% |
Place of Origin: | Jiangxi, China | Brand Name: | Hengchang | Model Number: | JT |
Voltage: | 380V or as your request | Power(W): | 3kw | Dimension(L*W*H): | Depend on the model |
Weight: | 320-4600kg | Certification: | ISO9001:2008, CE, SGS | Warranty: | 1 Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Hot sale high efficient gold jig separator for nugget collecting
Gold separator introduction.
Jig machine is widely used in gravity concentration of tin, tungsten, placer gold, hematite ore, manganese, titanium, antimony, lead, tantalum, niobium and other minerals.
It belongs to deep trough separation operations(gravity jig equipment), using water as processing media, it depends on the difference of specific gravity between the minerals select and gangue to separate mine, the stroke and time of stroke is adjustable depend on different specific gravity of minerals.
Gold separator working principle.
Sawtooth wave jig is revised and manufactured, based on the stratified theory and the adequate analysis of other conventional jigs. The jigging pulsation curve----produced by sawtooth wave jig----is in the shape of sawtooth wave which makes upward water flow quicker than downward water flow. The feature that upward time is shorter than downward time solves the problem that time and action of upward/downward water flows. This breakthrough dramatically amplifies the loose degree and mitigates suction action, which facilitates precipitation of coarse ores and improves ore recovery rate.
Gold separator application.
This jig machine is a kind of gravity jig separator for gold and other mineral materials concentration. It can be widely used to select Tungsten, tin, gold, red iron, brown iron, manganese, titanium, antimony, lead, tantalum, niobium and other minerals.
There are many applications where the jig machine of particular value and cannot be equaled for economical and efficient performance. They are effective in processing precious and base metal, rare metal and non-metallic minerals.
Model | Area | Feeding size | Water added | Water pressure | Capacity | Motor power | Dimension(mm) | Weight(kg) |
JT0.57-1 | 0.57m2 | 0-6mm | 1-3m³/t | ≥0.05Mpa | 1-2.5t/h | 1.5kw | 1550*780*1530 | 610 |
JT1-1 | 1.04m2 | 0-10mm | 1-3m³/t | ≥0.05Mpa | 2-4t/h | 2.2kw | 2270*1110*1890 | 900 |
JT2-2 | 2.28m2 | 0-10mm | 1-3m³/t | ≥0.05Mpa | 4-8t/h | 3kw | 3225*1550*2050 | 1640 |
JT3-1 | 3.3m2 | 0-10mm | 1-3m³/t | ≥0.05Mpa | 6-10t/h | 5.5kw | 3180*2000*3030 | 3260 |
JT4-2 | 4.33m2 | 0-30mm | 1-2m³/t | ≥0.05Mpa | 10-15t/h | 7.5kw | 3600*1850*2600 | 4600 |
JT5-2 | 4.86m2 | 0-10mm | 1-3m³/t | ≥0.05Mpa | 10-15t/h | 7.5kw | 3600*2000*2600 | 4500 |
Jiangxi Hengchang Mining Machinery Manufacturing Co.,Ltd. is engaged in the mineral processing equipment research,development ,design and production for many years history, has accumulated rich experience in design and production. Enterprise in mineral processing equipment industry has had a positive effect, set up the good reputation.
And mainly the manufacture of the products like as shaking table, flotation equipment, crushing equipment, magnetic separator, screening equipment, classifying equipment, agitation tank, feeding equipment, gravity separation equipment, wet separation equipment, spiral chute, saw-tooth wave jig and diaphragm jig, grinding equipment, ball mill, slurry pump, centrifugal pump, conveying equipment.
