Reliable Energy Saving Small Rock Pulverizer

Small rock pulverizer introduction.

Ball mill is suitable for grinding all kinds of ores and other materials, no matter wet grinding or dry grinding. Besides, it is the key equipment that pulverizes the materials after they are crushed and it is widely used in the manufacturing industries, such as cement, silicate, new building materials, refractory materials and fertilizers.

Hengchang Machinery is a professional ball mill manufacturer, and our ball mill is of high quality and high technology. Our ball mill can satisfy different requirements and have good features such as low energy consumption, high capacity per hour, no pollution to the environment around and easy to be repaired.

Small rock pulverizer working principle.

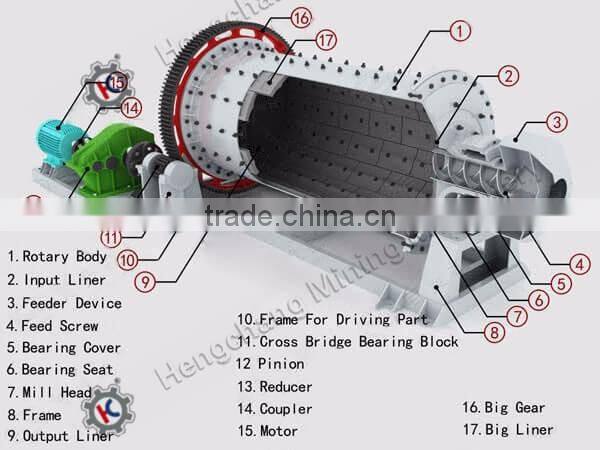

The main part of cylindrical energy saving grid ball mill is cylinder with small diameter and large length rotating slowly by the transmission device. The material is fed from the cylinder inlet and grinded by the impact of steel ball and ore and self-grinding. Due to the continuously feeding material, the pressure pushes material to the outlet and the grinded material is discharged from the cylinder outlet. In wet grinding, material is taken out; in dry grinding, the material is taken out by air. The grid installed in the outlet of mill is relied for forced discharge. Low pulp surface in cylinder reduces the ore over-grinding, and prevent the steel ball out. Under the same production conditions, production capacity of grid mill is larger than overflow mill’s. Both ends of the cylinder body adopt rolling bearing instead of the sliding bearing, which is more energy-saving.
