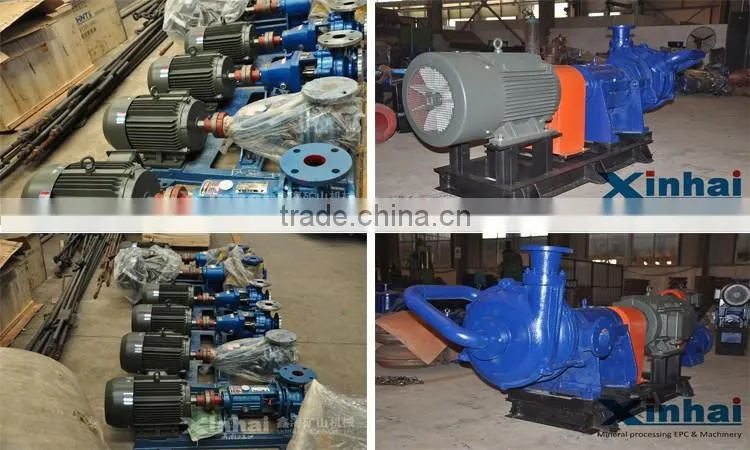

Standard or Nonstandard and Single-stage Pump Structure vertical spindle slurry pump
Alloy Slurry Pump— Product Introduction
A slurry pump with wear and corrosive resistance
Alloy Slurry Pump— Product Improvement
Slurry pump with resistance to wear, corrosion and impact is made of high hardness alloy cast iron
Alloy Slurry Pump— Advantages
Xinhai alloy slurry pump has cantilever type and horizontal type, and the main working parts are impeller and casing. Impeller device in casing is located on shaft, and connects with the prime motor.
In addition, double choices of high-chromium alloy and wear-resistant liners; double choice of packing sealing and centrifugal sealing
Alloy Slurry Pump— Product Principle
Xinhai alloy slurry pump achieves to increase pressure for conveying medium by centrifugal force. This is actually a process of energy transfer and conversion. The mechanical energy of high-speed rotation motor is transferred to pressure energy and kinetic energy of pumping the liquid by the pump vanes.
Alloy Slurry Pump— Application
Alloy slurry pump can be widely used in mining, metallurgy, electric power, coal, chemical industry, building materials industry etc. for conveying corrosive and high concentration slurry.
Alloy Slurry Pump/mining slurry pump — Technical Parameters
| Model | Flow | Head | Rotation Speed | Maximum Power | Maximum Efficiency | Impeller Diameter |
| m3/h | m | rpm | Kw | % | cm | |
| 50XPC | 12-111 | 7.7-94 | 700-1480 | 55 | 44.7 | 3346 |
| 80XPC | 43-204 | 8-70.4 | 700-1480 | 75 | 67.6 | 33363942 |
| 100XPC | 61-331 | 9.7-84.8 | 700-1480 | 132 | 71 | 33363942 |
| 150XPC | 111-582 | 8.7-71.1 | 490-980 | 185 | 75.8 | 48555863 |
| 200XPC | 199-948 | 13-97.5 | 490-980 | 355 | 82.5 | 58636873 |
| 250XPC | 272-1374 | 14.4-92.4 | 490-980 | 500 | 76.5 | 63687390 |
| 300XPC | 477-2333 | 13.8-79.9 | 490-980 | 630 | 80.4 | 65708590 |
Xinhai mining was established in 1993.And was the pioneer of China beneficiation industry.Our company could provide mining machine more than 600,and have the most equipment in China.At present,Xinhai business includes Mineral Processing EPC,Wear-Resistant Rubber,LFC Machinery,and Mining Investment.
this is our factory and our office building.
this is our laboratory and laboratory data.
Our customers come from all over the world, such as Xinhai EPC project ,Africa Mail 800t/d gold; Xinhai Transformation Project, Indonesia PT.NEM Gold Mine as so on. We have a lot of successful cases in America, Russia and Africa .Also we have Zimbabwe Office,Sudan Office and Indonesia Office. We will give you the best service.
this is our project in Africa.
Q:Hi, are you mining machinery manufacturer?
A:Yes, we can also provide amples test, mine design, equipment manufacture, after-sale service, etc.
Q:which country have your products been exported?
A:Many country, such as India, Ethiopia and so on. And our company has agencies in Zimbabwe, Sudan and Tanzania.
Q:Can you do mineral processing test?
A:Yes, not only can do it in your country, also can back to our company
How To Contact Us?
You can tell us the kind of ore that you want to process and the capacity that you need. We will give you the most suitable models.
