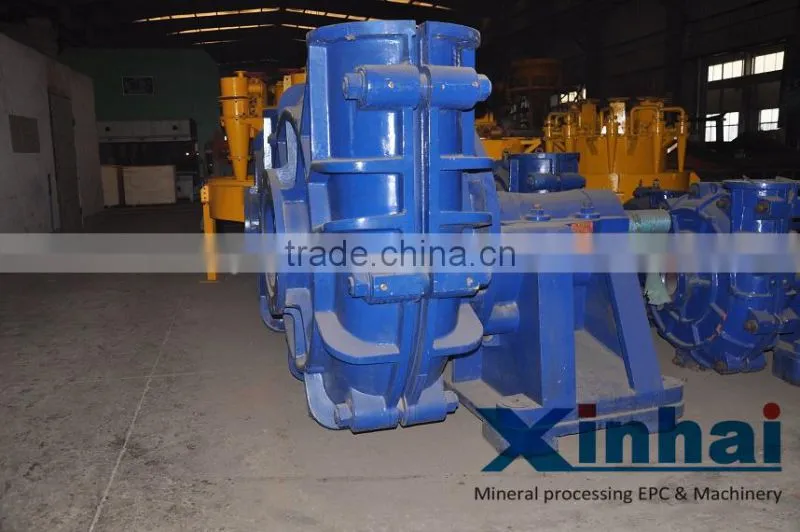

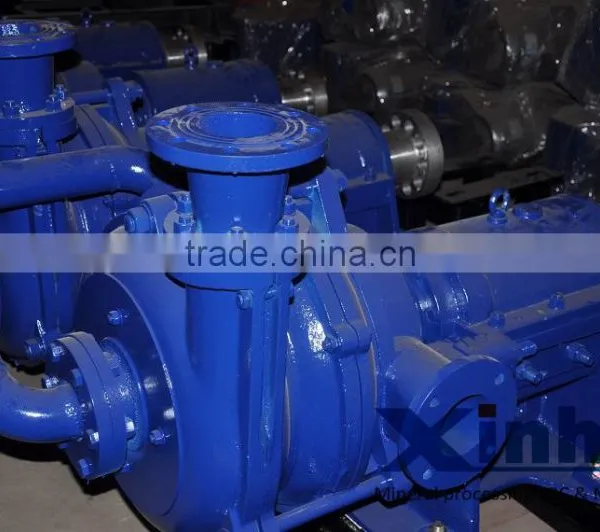

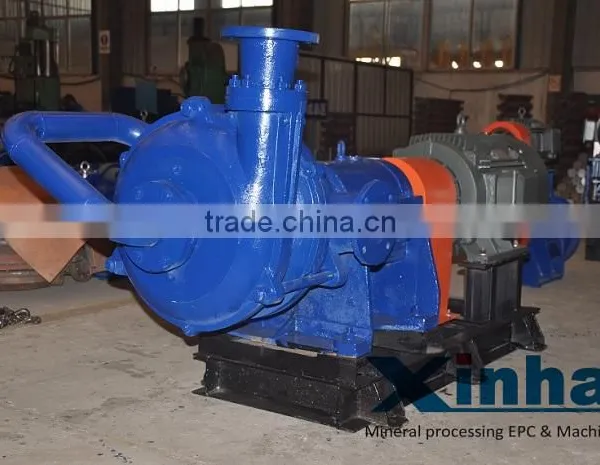

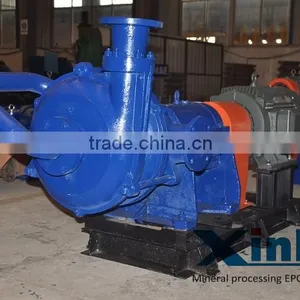

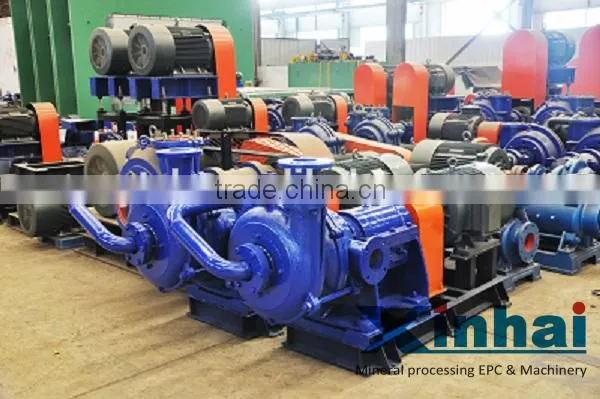

professional design gold sludge pump
gold sludge pump— Product Introduction
A slurry pump with wear and corrosive resistance
gold sludge pump— Product Improvement
Slurry pump with resistance to wear, corrosion and impact is made of high hardness alloy cast iron
gold sludge pump— Advantages

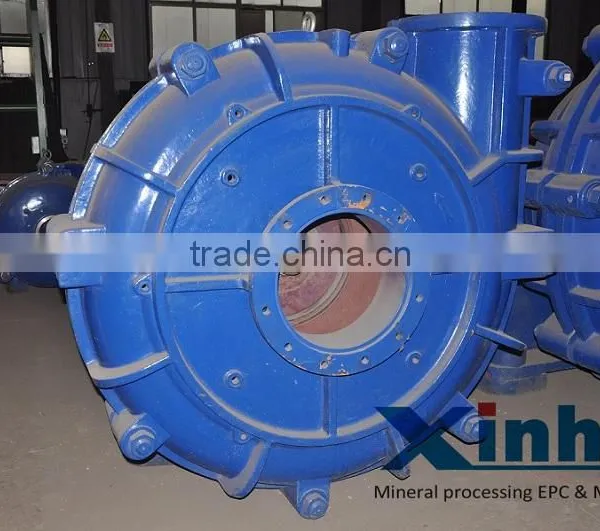

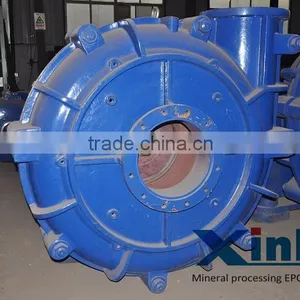

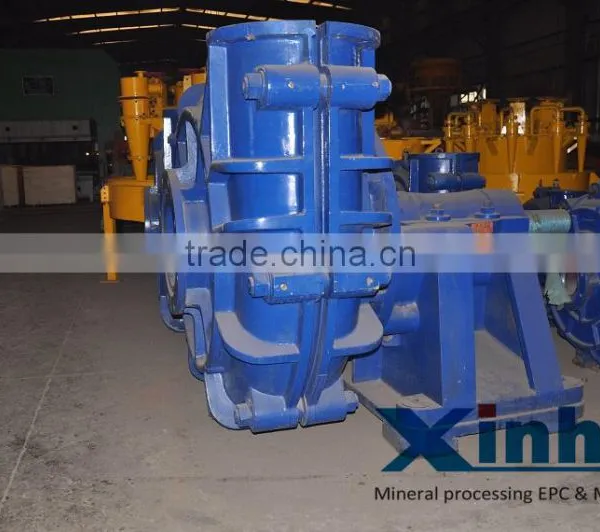

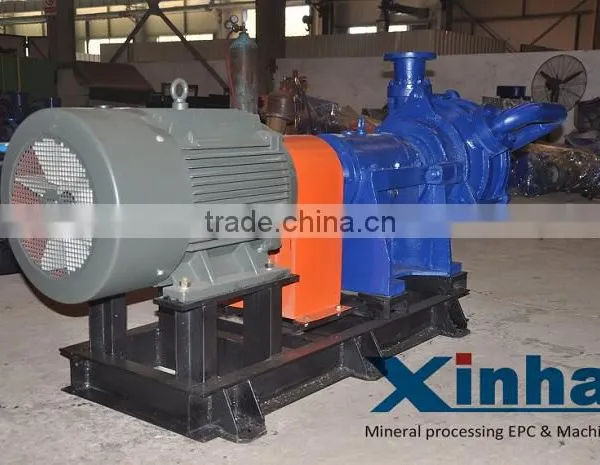

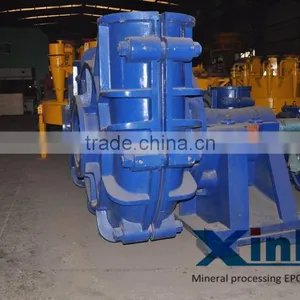

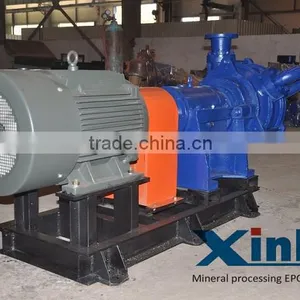

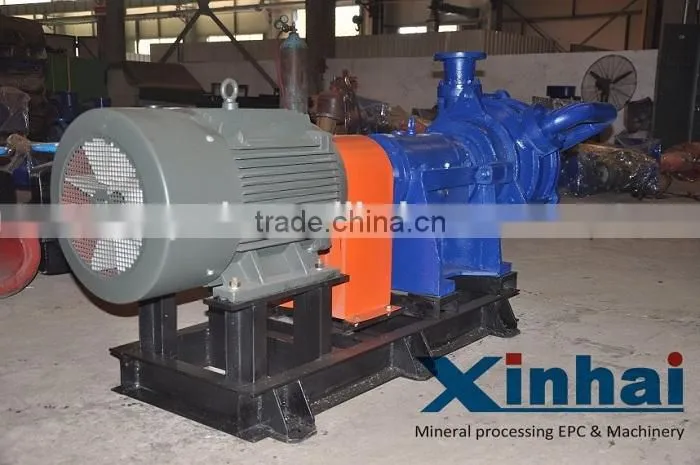

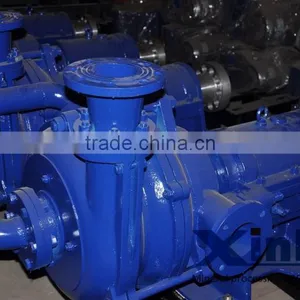

Xinhai alloy slurry pump has cantilever type and horizontal type, and the main working parts are impeller and casing. Impeller device in casing is located on shaft, and connects with the prime motor.
In addition, double choices of high-chromium alloy and wear-resistant liners; double choice of packing sealing and centrifugal sealing
gold sludge pump— Product Principle
Xinhai alloy slurry pump achieves to increase pressure for conveying medium by centrifugal force. This is actually a process of energy transfer and conversion. The mechanical energy of high-speed rotation motor is transferred to pressure energy and kinetic energy of pumping the liquid by the pump vanes.
gold sludge pump— Application
Alloy slurry pump can be widely used in mining, metallurgy, electric power, coal, chemical industry, building materials industry etc. for conveying corrosive and high concentration slurry.
gold sludge pump— Technical Parameters
| Model | Flow | Head | Rotation Speed | Maximum Power | Maximum Efficiency | Impeller Diameter |
| m3/h | m | rpm | Kw | % | cm | |
| 50XPC | 12-111 | 7.7-94 | 700-1480 | 55 | 44.7 | 3346 |
| 80XPC | 43-204 | 8-70.4 | 700-1480 | 75 | 67.6 | 33363942 |
| 100XPC | 61-331 | 9.7-84.8 | 700-1480 | 132 | 71 | 33363942 |
| 150XPC | 111-582 | 8.7-71.1 | 490-980 | 185 | 75.8 | 48555863 |
| 200XPC | 199-948 | 13-97.5 | 490-980 | 355 | 82.5 | 58636873 |
| 250XPC | 272-1374 | 14.4-92.4 | 490-980 | 500 | 76.5 | 63687390 |
| 300XPC | 477-2333 | 13.8-79.9 | 490-980 | 630 | 80.4 | 65708590 |
Group Introduction
Xinhai Group founded in 1993 has grown into the industry group involving mineral processing, wearable rubber, mining investment and LFC Machinery after twenty years development. We have been always committed to providing customers with professional, perfect, efficient equipment and solutions. The whole solution we provide for you with the core of reliable & efficient mineral processing schemes and environmental-protection & energy-saving tailings dry stacking, makes us stand up in every EPC bid.
