Specifications
Gold Loaded Carbon Desorption Electro-wining Device1.good experience
2.low investment
3. high recovery rate
4.ISO 90012000

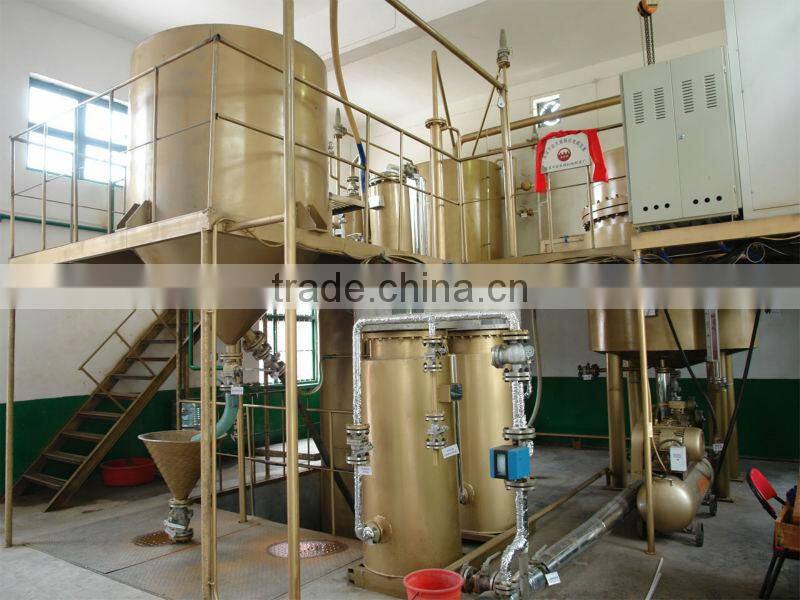

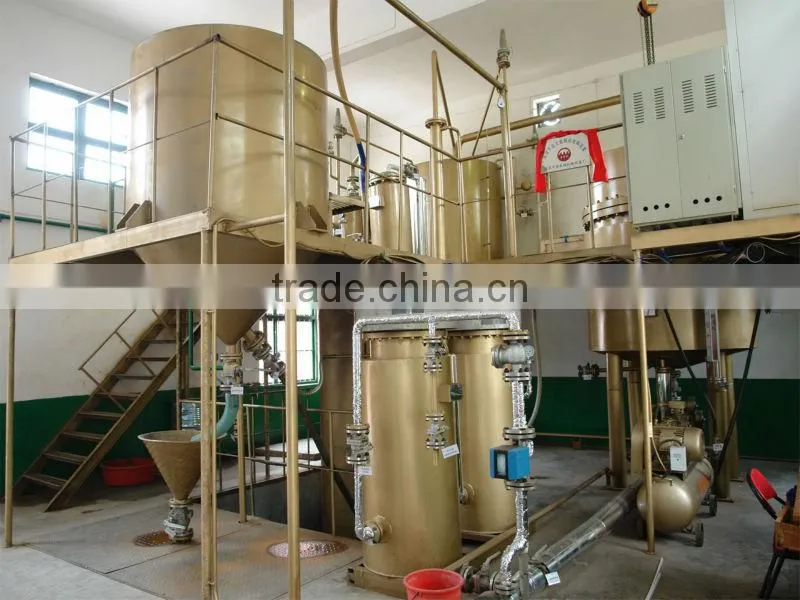

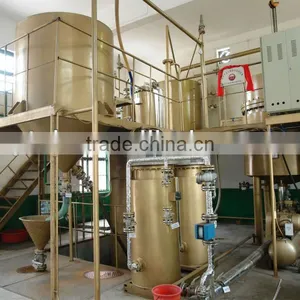

Gold Loaded Carbon Desorption Electro-wining Device
Introduction
Desorption electrolysis system is applied to recover solid gold from carbons in the cyaniding process. It is equipped with liquid-level controlling system, temperature controlling system and automatic controlling system.

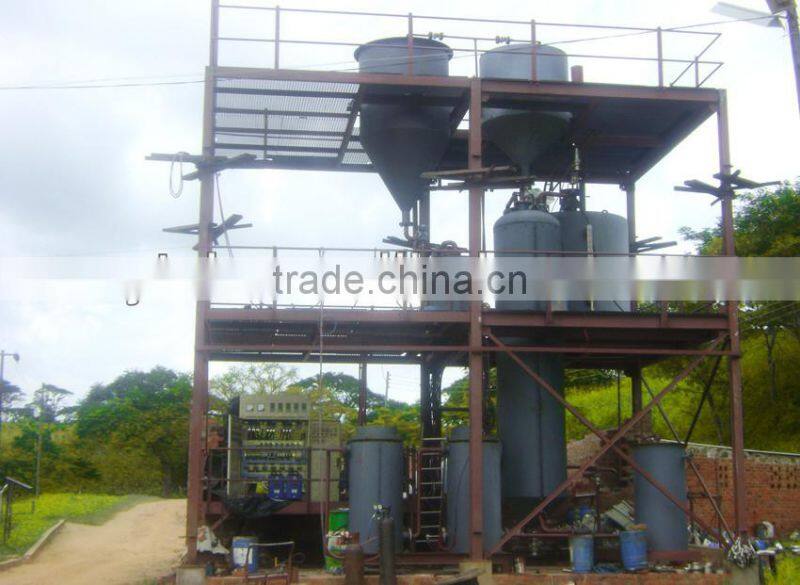

The 1500kg/batch electrowinning device in Zimbabwe
Features
- High-efficiency: when the grade of loaded carbon reaches 3000g/t, the desorption rate can reach more than 96%, the barren carbon tenor with this equipment comparing with that of normal desorption electrowinning equipment will reduce to its one/ fourth.
- Rapid: the temperature of desorption electrowinning can reach as high as 150°C(generally 30-55°C higher than in other kind system), and the working pressure of system can reach as high as 0.5 Mpa (generally 0.2-0.5 Mpa higher than in other kind system), so the desorption electrowinning is rapid with 12 hours typically(50%-60 % time shorted).
- Low consumption: the same temperature for desorption, no need of heat-exchanging, working speed is rapid, power consumption is 1/2-1/4 of normal system.
Application
Desorption electrolysis system is applied to recover solid gold from carbons in the cyaniding process.
Working principle

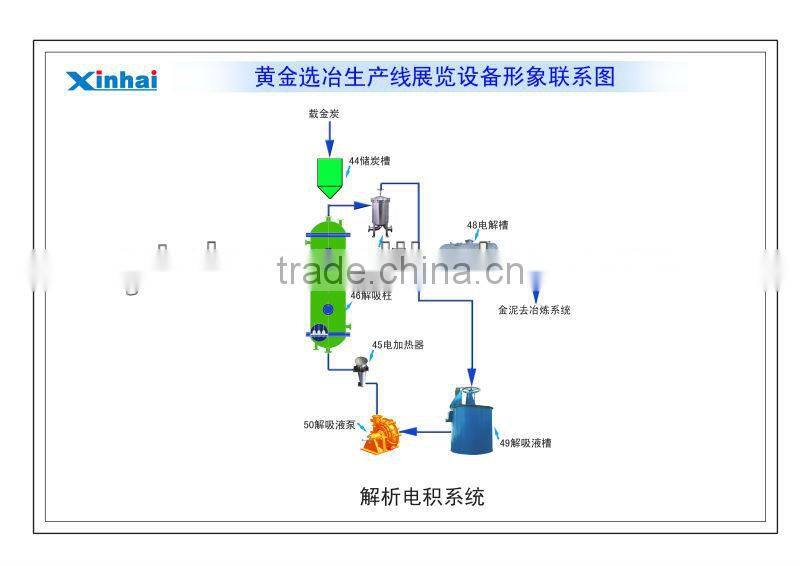

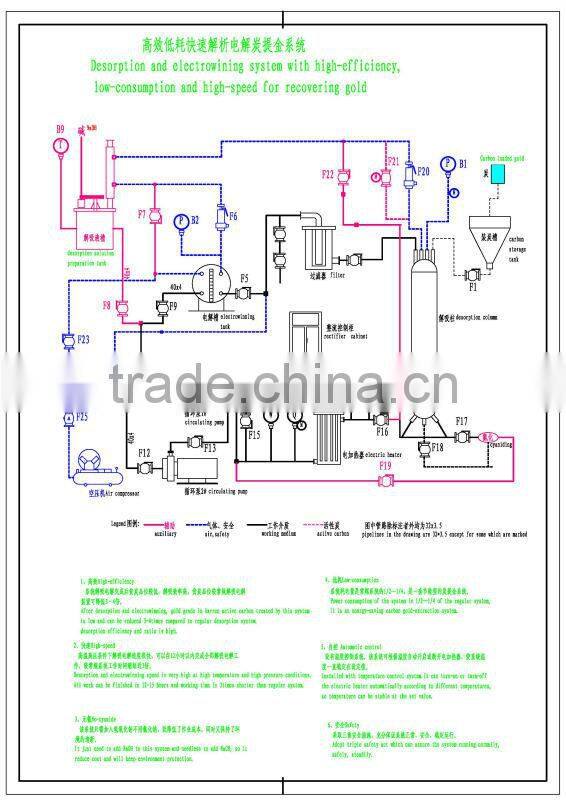

When the desorption system is added with anions which are more easily absorbed by activated carbons, Au(CN)2 is replaced by anion and the gold desorption is achieved. After the carbons loaded with gold are desorbed, pregnant solution is process via ionization. At last, solid gold is attained.
Technical parameters
Model |
Applicable scale |
Detail of system equipment |
System instrument detail |
Operating Parameters |
|
scale of mine (t/d) |
ore grade(g/t) |
|
|
|
|
GKJD-200 |
<150 |
2-8 |
JXZ Desorption column |
resistance diaphragm pressure gauge |
Temperature:150±2OC |
GKJD-300 |
150-300 |
||||
GKJD-500 |
300-500 |
||||
GKJD-700 |
500-750 |
||||
GKJD-900 |
750-1000 |
||||
GKJD-1000 |
1000-1500 |
||||
GKJD-1200 |
1000-1500 |
||||
GKJD-1500 |
>1500 |
||||
We also can manufacture other kinds of gold mining machinery as follows:
ore feeder
jaw crusher
cone crusher
vibrating screen
belt conveyors
ball mill
spiral classifier
hydrocyclone
jigger
shaking table
centrifugal concentrator
flotation machine
desorption and electrowinning device
gold smelting oven
thickener
filter press
