Home > Products > gold smelting equipment > Hot Selling! Gold Electrowinning and Desorption Device

Hot Selling! Gold Electrowinning and Desorption Device

Name: Hot Selling! Gold Electrowinning and Desorption Device
Brand: xinhai
Availability: InStock

FOB Price

USD $1,000 - $5,000 / Set

1 Set(Min.Order)

Supply Ability 50 Set / Sets per Month
Port Qingdao
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	xinhai
Model Number	10tpd -2000tpd	Condition	New
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

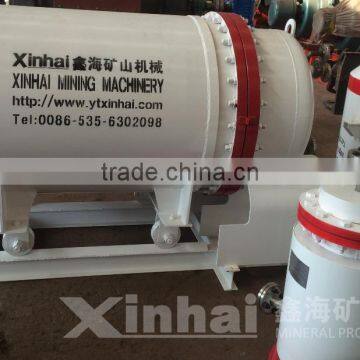

Shandong Yantai Gold Electrowinning and Desorption Device

Product Description

Gold Electrowinning —Introduction

Desorption electrolysis system is applied to recover solid gold from carbons in the cyaniding process. It is equipped with liquid-level controlling system, temperature controlling system and automatic controlling system.

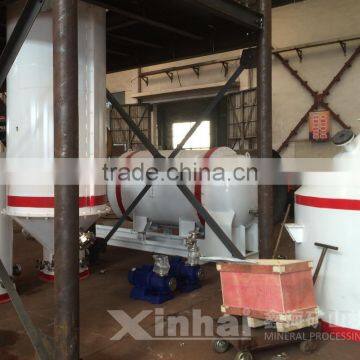

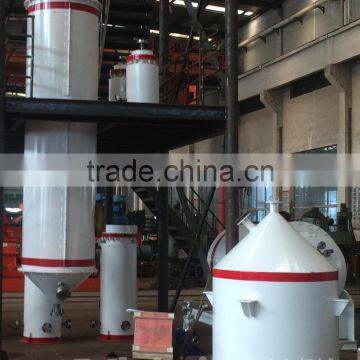

The 1500kg/batch electrowinning device in Zimbabwe

Product Feature

Gold Electrowinning — Features

High-efficiency: when the grade of loaded carbon reaches 3000g/t, the desorption rate can reach more than 96%, the barren carbon tenor with this equipment comparing with that of normal desorption electrowinning equipment will reduce to its one/ fourth.

Rapid: the temperature of desorption electrowinning can reach as high as 150°C(generally 30-55°C higher than in other kind system), and the working pressure of system can reach as high as 0.5 Mpa (generally 0.2-0.5 Mpa higher than in other kind system), so the desorption electrowinning is rapid with 12 hours typically(50%-60 % time shorted).

Low consumption: the same temperature for desorption, no need of heat-exchanging, working speed is rapid, power consumption is 1/2-1/4 of normal system.

Application

Gold Electrowinning — Application

Desorption electrolysis system is applied to recover solid gold from carbons in the cyaniding process.

Work Principle

Gold Electrowinning — Working principle

When the desorption system is added with anions which are more easily absorbed by activated carbons, Au(CN)2 is replaced by anion and the gold desorption is achieved. After the carbons loaded with gold are desorbed, pregnant solution is process via ionization. At last, solid gold is attained.

Technical Parameters

Gold Electrowinning — Technical parameters

Model	Applicable scale		Detail of system equipment	System instrument detail	Operating Parameters
Model	scale of mine (t/d)	ore grade(g/t)
GKJD-200	<150	2-8	JXZ Desorption column GLQ filter DJC electrolytic cell CQ circulating pump DRQ electric heater Wair compressor PYC Desorption liquid trough XL control cabinet GDF Rectifier cabinet	resistance diaphragm pressure gauge Pressure indicating controller Diaphragm pressure gauge Vortex flow meter Flow totalizer thermal thermometer Temperature sensor for liquid level meter Temperature indicating regulator	Temperature:150±2OC PH:≥13.5 Flow:2.4m3/h Current:300±100A Decomposition voltage:2-4V Installed power:75.6(KW) Desorption trough pressure :0.5-0.57 (Mpa) Cell pressure:0.45-0.52 (Mpa)
GKJD-300	150-300
GKJD-500	300-500
GKJD-700	500-750
GKJD-900	750-1000
GKJD-1000	1000-1500
GKJD-1200	1000-1500
GKJD-1500	>1500
