20 years experience rotary kiln for sludge drying, sawdust drying
The indirect heat transfer dryer made by our company can be used in building materials, metallurgy, chemical industry, cement plant for drying of limestone slag, coal powder, slag, clay stone. This dryer is formed of rotary body, lifting blade, driving device, supporting device and sealing ring.
The rotary dryer is mainly composed by the revolving body, lifting plate, driving device, supporting device, sealing ring and other components. So it has the advantages of reasonable structure, perfect in workmanship, high yield, low energy consumption, convenient to operate.
Q&A
1. What the rotary dryer can be used for ?
This dryer can dry many kinds of materials which contain moisture, such as coal, coal slurry, slag, industrial waste, and clay stone. They are widely used in building materials, metallurgy, and chemical industry.
2. what the rotary dryer consist of?

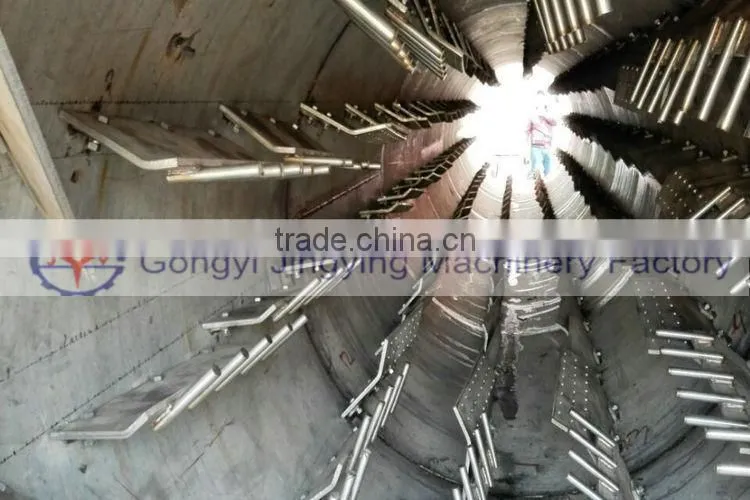

the dryer is formed by rotary body, lifting blade, driving device, supporting device and sealing ring.
3. Can I use the coal or gas as the heating source?
Yea, you can use coal, gas, electricity, oil and wind power to heat the dryer machine.
4. How the rotary dryer to work?

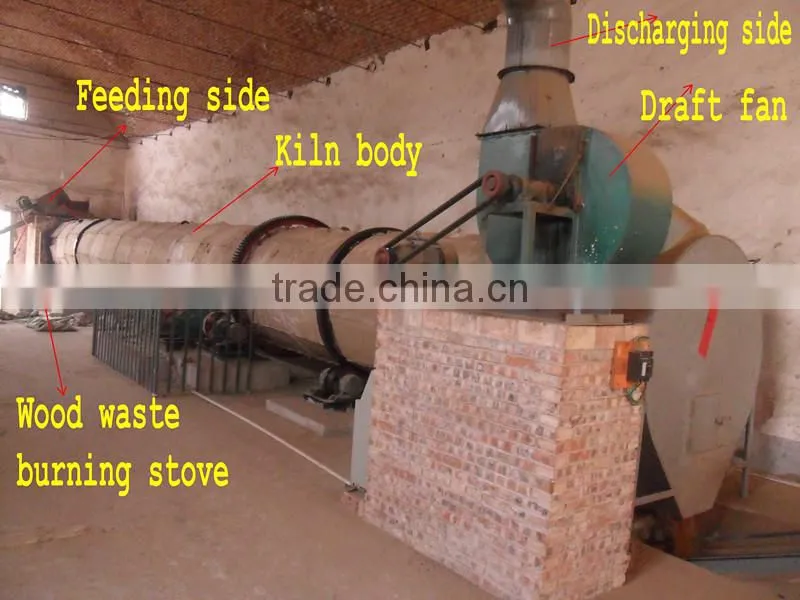

The raw material plate is arranged conveniently to allow adjustable angle positions. The material to be dried is inserted to the rotary cylinder through the raw material plate. Hot air flows within the cylinder causing the separation of water from the material by converting it into vapor which is discharged into the atmosphere. At this point, the material becomes dry.
The dryer has advantages of reasonable structure, high efficiency, low energy consumption and convenient transportation.
Performance Characteristics of Rotary Dryer:This series drier is used for drying materials with humidity or granularity in
the industries of mineral dressing, building material, metallurgy and chemical. Rotating dryer can be used for drying many kinds of materials and with convenient and reliable operation; therefore, it has been widely used.
Model (mm) |
Obliquity(%) |
Rotation speed (r/min) |
Feeding temperature (degree) |
Power (kw) |
Capacity(t/h) |
Weight (t) |
600x6000 |
3-5 |
3-8 |
<=700 |
3 |
0.5-1.5 |
2.9 |
800x8000 |
3-5 |
3-8 |
<=700 |
4 |
0.8-2.0 |
3.5 |
800x10000 |
3-5 |
3-8 |
<=700 |
4 |
0.8-2.5 |
4.5 |
1000x10000 |
3-5 |
3-8 |
<=700 |
5.5 |
1.0-3.5 |
5.6 |
1200x10000 |
3-5 |
3-8 |
<=700 |
7.5 |
1.8-5 |
14.5 |
1200x12000 |
3-5 |
3-8 |
<=700 |
11 |
2-6 |
14.8 |
1500x12000 |
3-5 |
2-6 |
<=800 |
15 |
3.5-9 |
17.8 |
1800x12000 |
3-5 |
2-6 |
<=800 |
18 |
5-12 |
25 |
2200x12000 |
3-5 |
1.5-6 |
<=800 |
18.5 |
6-15 |
33 |
2200x18000 |
3-5 |
1.5-6 |
<=800 |
22 |
10-18 |
53.8 |
2200x20000 |
3-5 |
1.5-6 |
<=800 |
30 |
12-20 |
56 |
2400x20000 |
3-5 |
1.5-5 |
<=800 |
37 |
18-30 |
60 |
3000x20000 |
3-5 |
1.5-5 |
<=800 |
55 |
25-35 |
78 |
3000x25000 |
3-5 |
1.5-5 |
<=800 |
75 |
32-40 |
104.9 |
Why choose us??
1.As 20s years professional Rotary drying making machine factory, we have a lot of manufacturing experience and technique.
2.This drying machine can used to corn drying,wood chip drying equipment,drying sawdust, seed drying equipment, biomass drying equipment, industrial drying equipment.
3.We provide pre-sale service, middle sale service and after sale service. As your best supplier, we are responsible for teaching you how to operate and maintain the machine,how to produce bricks.
3.We have got some certificates such as ISO9001:2008,CE and BV.
4.We have customers in Malaysia, Taiwan, Switzerland. At the meantime, we also exported our concrete block machine/concrete block making machine / cement block machine to Qatar, Iraq, Egypt, Brazil, India,etc. We have big market in the world.
If you are interested in the product, please send me an enquiry or contact me directly, welcome to visit our factory.
