99.9% separating rate copper wire recycling equipment
It is designed for recovering copper granules from various scrap wires and cables. It combines chopper, separator and dust collector into one unit, which is easily controlled by electricity control panel. The machine adopts air and vibration instead of water to separate copper granules and plastic pieces, having high recycling rate. The plastic pieces can also be recycled.
Features:
1. Novel design, compact structure, saving space, mounted on a common base, easy to move.
2. Manual feeding material for one time, adopting electricity control panel to control the whole system, stable performance.
3. Minimum copper recycling rate can reach 99%.
4. Equipped with dust collector, no dust pollution.
5. Adopting air and vibration separation, no water pollution.
Application:
Our machine can process various kinds of scrap wires and cables, such as automotive wires, communication cables and other miscellaneous wires and cables with the suitable diameter of less than 20mm, single conductor with diameter of 0.2-0.3mm is best.
Paramaters:
Model |
Output (kg/h) |
Power (kw) |
Dimension (mm) |
Weight (kg) |
Voltage |
Cable Diameter Range |
Mini-400 |
80-100 |
11.93 |
1450*1330*2100 |
1000 |
380V, 50Hz/60Hz |
0.2-20 |
WRS-400 |
150-200 |
19.43 |
2300*2200*2400 |
1800 |
380V, 50Hz/60Hz |
0.2-20 |
WRS-600 |
300-400 |
52.37 |
4100*3800*3500 |
3000 |
380V, 50Hz/60Hz |
0.2-20 |
WRS-800 |
500-600 |
78.83 |
9200*4100*3540 |
8000 |
380V, 50Hz/60Hz |
0.2-25 |

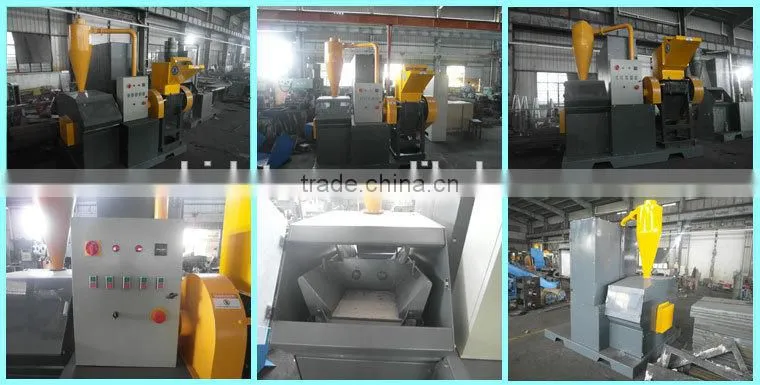

WRS-800 copper cable wire recycling equipment
Mini-400 copper cable wire recycling equipment
WRS-600 copper cable wire recycling equipment
The Granules & Spare parts of copper cable wire recycling equipment
Normal package or full container for copper cable wire recycling equipment
As a professional metal recycling machines manufacturer, we have been working hard to provide advanced equipment and professional solutions for your metal recycling business. Always endeavored in developing advanced metal recycling technology, we can customize special solutions to help you recycle more effiently and more cost effectively.
No matter you are engaged in processing copper cables, scrap radiator, scrap motor, aluminum cans, as well as other types of metal, you can find proper solutions here. We manufacture various types of copper cable granulator, wire stripping machine, radiator recycling machine, motor recycling machine, metal crusher and metal baler to meet different requirements for scrap metal recycling. Besides, plastic recycling machine is also in our business range.
1. what is the complete copper recycling process
The waste copper wire will be turned into 3-5mm granule after twice crushing. Later it will be asperated from PVC plastic by vibrating machine.
2. What voltage does it need to work?
We can customize different voltage motor of 220V and380V to meet different requirements.
3. Which kinds of materials can be the raw materials of copper cable wire recycling equipment?
Any waste copper wires with the diameter within 20mm, such as auto electric wire, motorcycle electric wire, and computer wires etc.
