1192 New vending ice machine

1192 New vending ice machine

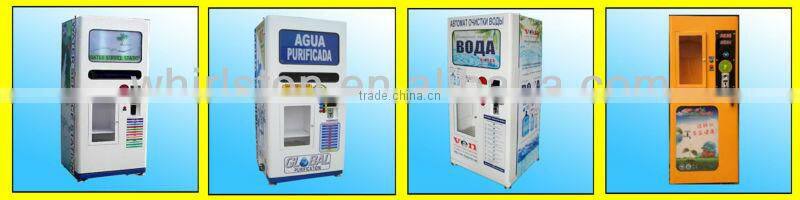

• Picture of water vending machine

• Feature :

• *Fully automatic water purification,ice-making,ice vending and calculation of ice amount and price,really realize the fully automatic vending.



  *Make use of leading PC electric controlling system for automatic water filling,water purification,automatic ice-making,automatic machine stopping for full of ice ,and pause vending,falsh light and reject putting in coins when lack of ice ;automatically lock of ice vending door and unlock when consume.



  *Payment methods:coin +bill +ic card



  * Timing blender device installed in the ice barrel ensures the ice is in the state of small cubes.



  * The conveying device makes use of famous-brand assembly from taiwan to sure the reliable performance. The computation part is thd patent of our factory which is  under the protection of intellectual property rights.flexible and adjustable ice amount and unit price setting.

• Specification:

  No	Item	I 1000  BC
  1	Power supply	AC220 240v/50 60HZ, AC110v/60Hz
  2	consumption	3.46KW
  3	rated current	15.76A
  4	Environment temperature	2  38°C
  5	Working temperature	25°C
  6	capatity of ice 20°C temperature	450KG/24H
  7	Size of the ice cube	2.2cmx2.2cmx2.2cm
  8	Capacity of ice mould space	540space
  9	Spec of compressor	3P
  10	refrigerant	404A
  11	Cooling method	Spray cycling spray
  12	Radiating method	Air (can customize water cold)
  13	Size of bulk ice tank	W80cmxd80cmxh105cm
  14	Capacity of ice tank	200kg
  15	Material of ice tank	Stainless steel 304
  16	Water source	Municipal tap water
  17	Purification process	Tap water→20″5upp filter→20″1upp filter→EVERPURE filter→ice machine
  18	Pressure of raw water	≥0.1mpa
  19	Sales method	Induction ic card/coin/bill/give change/GSM remote monitor(option)
  20	Capacity of coin box	3000PCS
  21	Dispensing ice	Bag ice
  22	bag ice	40*60cm
  23	Bag thickness	0.08mm(single layer)
  24	Range of bag ice	1KG5kg
  25	Ice dispensing speed	2S/bag
  26	Capacity of inside storage bag	About 300 pcs
  27	Machine size	W100cmxD120cmxH210cm





If anything of water vending machine,please let me know,I will try my best to help.
