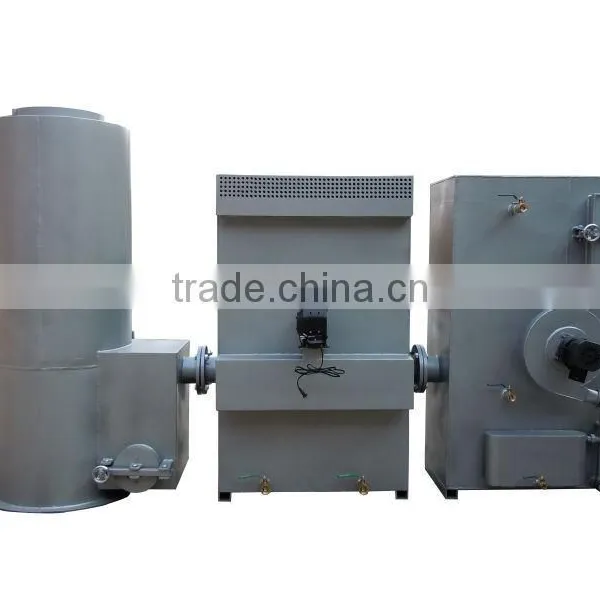

JXQ-10 Special structure High output and low consumption small biomass gasifier for cooking is our new renewable product which can generate clean and useful gas with the materials of agro-wastes and wood wastes, such as straw, cotton stalk, corn stalk, peanut shell, wood shavings, wood chips etc.
JXQ-10 Special structure High output and low consumption small biomass gasifier for cooking with features:
1.New design, advanced technology, scientific and compact structure, high efficiency, simple operation.
2.Only 2 minutes to generate gas. And it takes 8-12 minutes to boil 4.5kgs water same as the natural gas.
3.Feeding raw material, generating gas, using gas can realize simultaneously.
4.Good cleaning device to control the tar content, ash content, water content and guarantee the gas clean and good.
5.Gasifying efficiency can get to 70%. The heat value of gas is 4600-5200kj/m3.
JXQ-10 Special structure High output and low consumption small biomass gasifier for cooking with below technical parameters:
Model |
JXQ-10A |
JXQ-10B |
JXQ-20B |
JXQ-30 |
Gas output (m3/h) |
5-10 |
5-10 |
10-12 |
15-18 |
Gas calorific value (KJ/m3) |
4600-5200 |
4600-5200 |
4600-5200 |
4600-5200 |
Gasification Efficiency |
>70% |
>70% |
>70% |
>70 |
Exhauster power |
220V 50HZ |
220V 50HZ |
220V,50HZ |
220v,50HZ |
Material required (kg/h) |
5-10 |
5-10 |
20 |
30 |
Number of Filter |
1 |
2 |
2 |
2 |
Size of Reactor(mm) |
400 Height:1100 |
400 Height:1100 |
500 Height:1350 |
560 Height:1550 |
Size of filter(mm) |
480x240x900 |
560*300*920x2 |
720x3601200x2 |
760x400x1300x2 |
JXQ-10 Special structure High output and low consumption small biomass gasifier for cooking
