Specifications
1 Small Complete Wood Pellet Plant High Efficiency easy operation and maintenence.2 Stable Funcation.
3 CE Certification

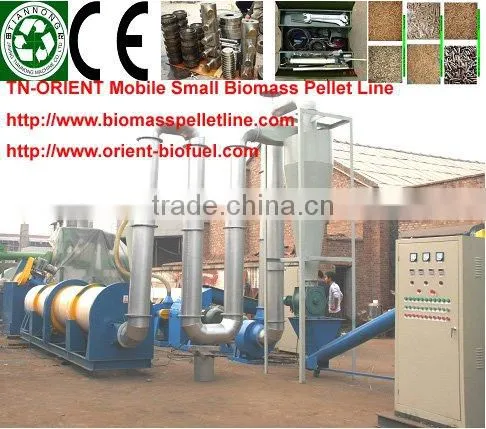

Small Wood pellet Plant High Efficiency with Capacity 100-1000 kg/1h is developed to meet with the family use which is made up of Wood Chipping Machine, Hammer Mill, Air-Current Dryer / Small Rotary Drum Dryer, Mixer, Screw Conveyor, Conditioner, Flat Pellet Press, Grade Sieve and Cooler, small Semi-auto Packing Machine.
Small Complete Wood Pellet Plant High Efficiency :Pelletizing is the process of making waste materials into solid fuel. The objects are used for burning purposes. Wood pellet can be made from any type of agro-forestry waste: groundnut shell, sugarcane bio-gases, caster shells/stalk, saw dust, coffee husk, paddy straw, sunflower stalk, cotton stalks, tobacco waste mustard stalk, jute waste, bamboo dust, tea waste, wheat straw, palm husk, soybeans husk, coir pitch barks/straws, rice husks, forestry wastes, wood chips and many other agro wastes.

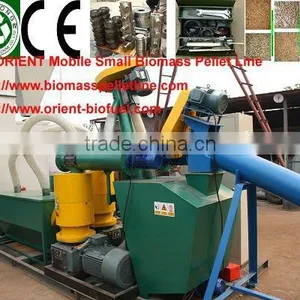

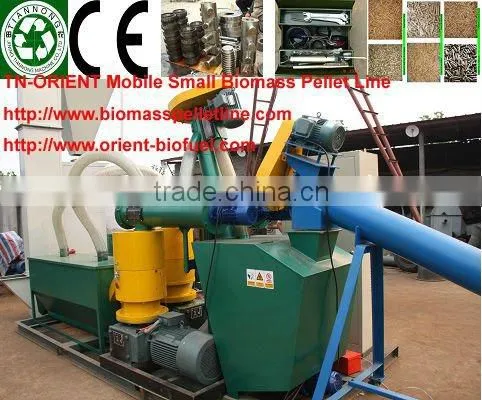

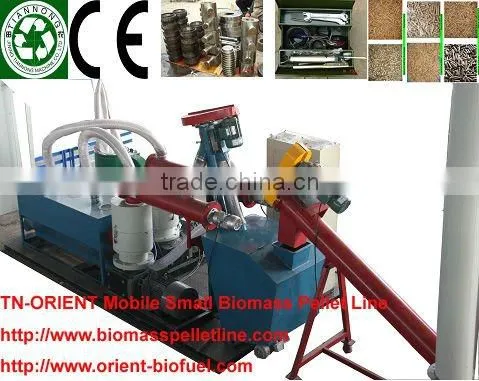

The Small Complete Wood Pellet Plant High Efficiency is equipped with MZLP-Series Flat Die Pellet Mill, for the Pellet Mill is simple to operate and easy to maintain to meet the needs from the family and farmer use.
Flowchart of Small Complete Wood Pellet Plant High Efficiency:
Debarking – Crushing (Chipper + Hammer Mill) – Sieving – Drying – Mixing and Conditioning – Pelletizing – Cooling and Grade Sieving – Packing - Dedusting
Features of flat die pellet mill from KL-Series and PK-Series:
1. The mechanical strength of MZLP-Series Flat Die Wood Pellet Machine is 3-4 times than our domestic KL-Series / 9PK-Series which are mainly used to make animal feedstuff, while our MZLP-Series is designed specially to make biomass/wood pellet.
2. We match the special reducer on MZLP-Series which can guarantee the density and good quality of wood pellet.
3. All the electrical spare parts of MZLP-Series have CE Certificate.
4. The life of the roller and template on MZLP-Series Flat Die Wood Pellet Machine can get to 300-500 hours which is 2 times longer comparing with the domestic manufactures. The raw material of our spare parts is from 20CrMnTi or 40Cr.
The thickness of the Template will affect the quality of the pellet. When the Template is thicker, it is equal that the pelletizing process is longer, so the density of pellet will be higher, and the appearance of pellet will be smoother. And the life of the Template will be longer.
5. We can make pure wood pellet without any additives and the density of wood pellet is 1.1-1.4.
PELLET STANDARDS:
Fines (fine particles)......1% maximum through a 1/8” screen
Ash Content..................1% maximum (Premium grade)
..................3% maximum (Standard grade)
Moisture Content...........8% maximum
Bulk Density..................40 pound per cubic foot minimum
Size..............................1/4” to 5/16” diameter 1/2 – 11/2” long maximum
Heat Content.................approximately 8200 Btu per pound minimum
6. We have the self-protection device on our MZLP-Series Flat Die Wood Pellet Machine , when the running temperature of pellet machine is over the set normal standard, our machine will stop automatically. It is easier to the fresh operators.
7. The inside structure of MZLP-200/260 is the Roller Fixed and Template Rotating, while MZLP-300/400 is the Roller Rotating and Template fixed. So MZLP-300/400 is easier to pelletize the loose and light raw material, while MLZP-200/260 is easier to pelletize the hard material.
8. We have CE certificate on our all MZLP-Series Flat Die Wood Pellet Machine .
9. The Electricity Consumption of MZLP-Series Flat Die Wood Pellet Machine will save 30-50% electricity.
Any more details, please contact with Lily.
