Specifications
1.ISO2.no pallet
3.The brick was made just now can carry a adult male,it can be stacked directly
4.The defective rate is low
We Henan sanxiong Heavy Duty Machinery Co.,Ltd have 30 years experience for producing and developing experience of block production line .
The production of 360-3:
1.Capacity is :3200-3600 bricks/hr
2.Pressure for :360Ton
3.Weight of main machine:14.3 Ton
4.Power of main machine : 18.5KW
5.Size specification of bricks:240*115*53mm
and also can be changed by your requests.
6.Pressure way : shacking and mechanical pressure
7.Body material is 5mm 40# steel
8.Material of mould is 40 chromium
9.The mould are heated by electricity, inadhesion the material,can
reducing defective rate.

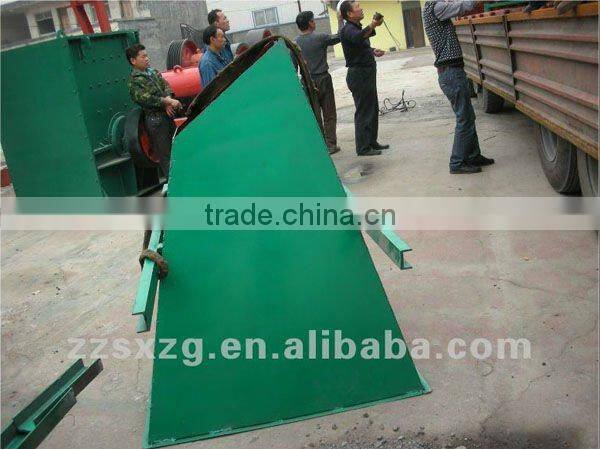

The feeding hopper is adopted the special design to make sure the raw material is feeding uniformly and incessantly:
Machine body material is used 40#steel with 5 mm thickness; the material of mould is 40chromium; Using antifriction bearing device ,effectively reduce Galling and also with low noise.

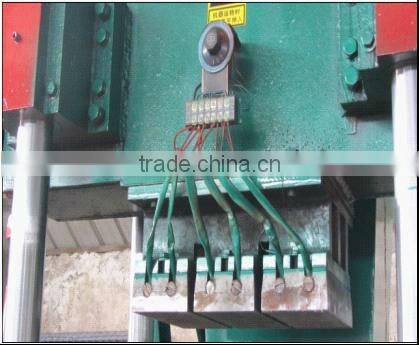

The mould adopted the electric heating appliances; lower the failure rate of bricks very well:
The raw material:
The brick was made just now can carry a adult male:
The brick was made just now Can be directly stacked:
The brick making machine is working:
ISO:
| Type | MZJ360-3 |
| Productivity(pcs/hr) | 3200-3600 |
| Power(kw) | 18.5 |
| Nominal pressure(t) | 360 |
| Product specification(mm) | 240*115*53 240*190*90 240*115*90 240*240*90 |
| Weight(kg) | 14300 |
| Outer dimension(mm) | 1950*2060*2750 |
| Mold material | 40# Chromium |

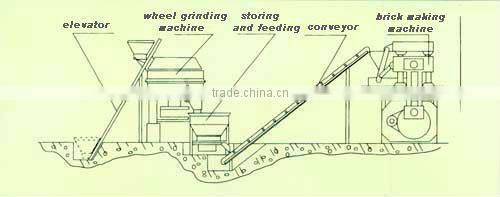

Flow chart :
1. The machine is high pressure brick making machine, and it can produce high-toughness, high-quality, low-cost bricks.
2. Mechanical vibration and 2-sided pressure, good shape, avoid the raw material glue the mold.
3. Conveyor airtight, easy to operate, easy to repair .
4. Easy to find raw material, like the fly ash, slag. Stone power, river sands, gangue, tailings, wind fossil, construction waste, industrial waste, steel slag and so on. Basically, two materials or above can go into production.
5. Multi-function, mainly it can produce the standard bricks, and it also can produce the solid bricks by changing the mold.
6. Smart vibrating exhaust device, force feeding device. Low power, high nominal pressure, uniform feeding, high density. Special design thus it can produce bricks with high fly ash content without air formation.
7.No need pallets, direct palletizing, high automation, low investment, easy installation, low failure, high productivity, cover small area, less construction period, less production personnel, high and quick reward.
We are professional, reliable, do not hesitate to contact us!
