beating opener/fiber opening pillow filling machine/cotton pillow filling machines

Specifications

beating opener
1.Pedal switch
2.Different pipe number
3.fill different cotton material
4.CE

beating opener/fiber opening pillow filling machine/cotton pillow filling machines

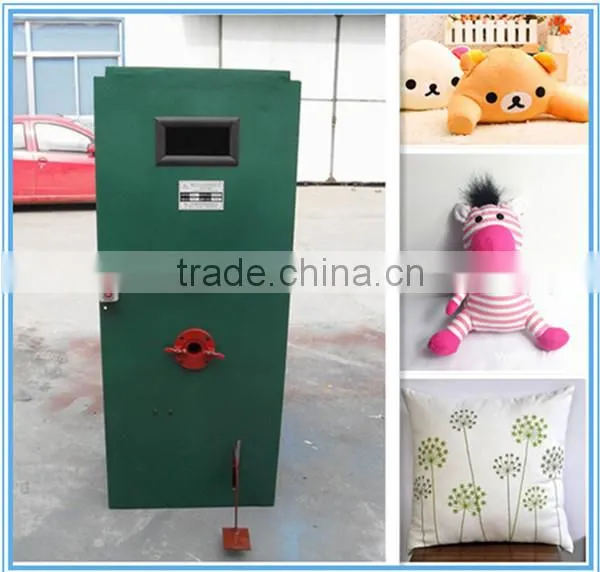

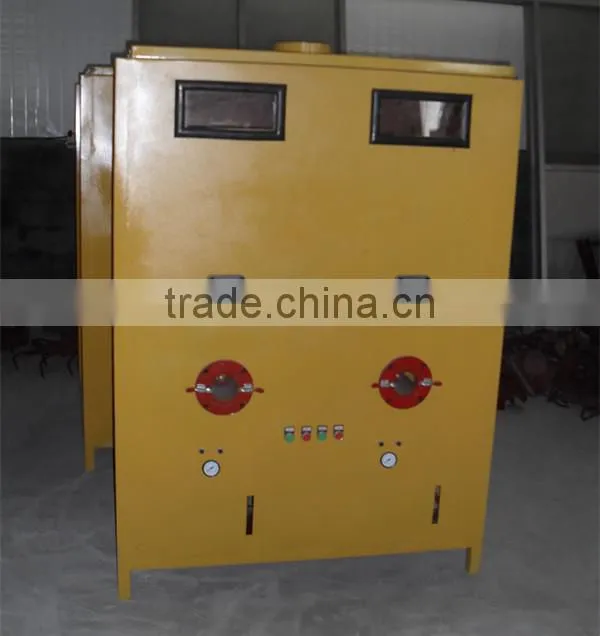

Description of beating opener

This cotton pillow filling machine suitable for filling 51mm below 7D-15D pp cotton, pearl cotton, leftover material, plastic and foam particles,buckwheat and so on

1. Widely used for the toy doll cotton, short fiber and bubble particle filling device.

2. Applicable to the pillow, toys, clothing, pillow, car neck pillow, feather, seat cushion manufacturers use.



Technology parameter of beating opener

Model	FR-200	FR-100
Motor power	1.5kw	1.5kw
Air pressor	0.7-0.8Mpa	0.7-0.8Mpa
Cotton mouth number	2	1
Dimension	1200*900*1600	1700*800*1200mm

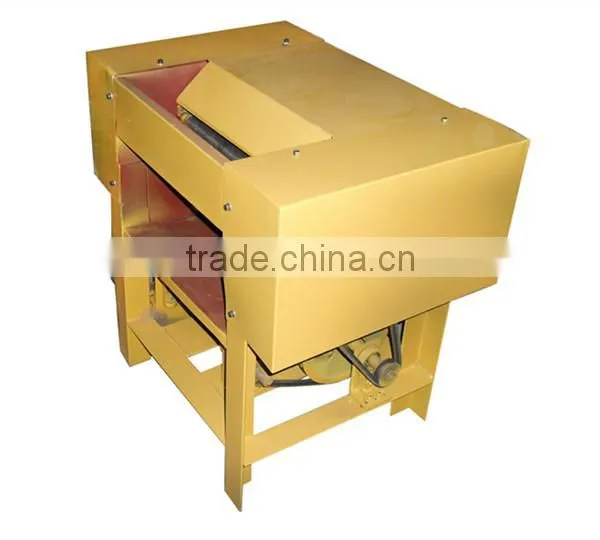

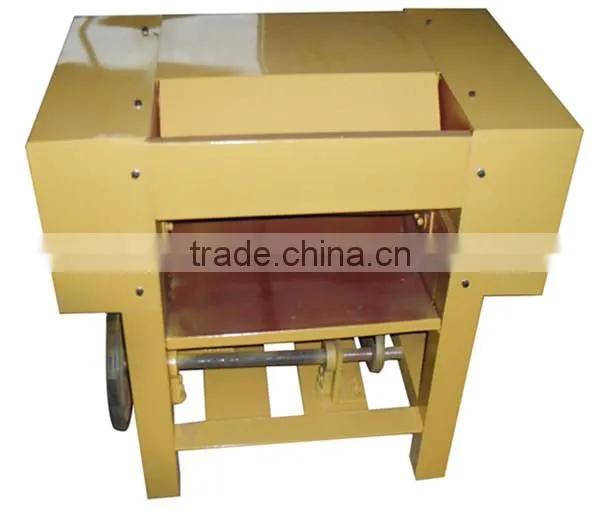

Carding machine as following:

Used for 2 d 3 d screw cotton, PP cotton, doll cotton, ordinary hollow cotton are evenly scattered fleeciness,

just need one-time opening, opening rate up to 96%; Suitable for toy factory, sofa factory, bedding plants,

home textile garment factories use



1, Can be used as the combed cotton separately.

2, Can be combed cotton, cotton filling combination.

3, Can be blended combed cotton feathers or broken sponge filling combination.



Technology parameter

Model	FRK-100	FRK-200
Power	1.5KW	3KW/0.75KW
Rated Voltage	220V	380V 50HZ
Output	40KG/H	120KG/H
Looseness Rate	95%-98%	98%-100%
Net Weight	130kg	300kg
Overall Dimension	800×500×750mm	900×800×850mm





Fiber after carding



If you are interested in these machine,pls contact me!
