Good Quality Shotcrete Machine/small Shotcrete Machine

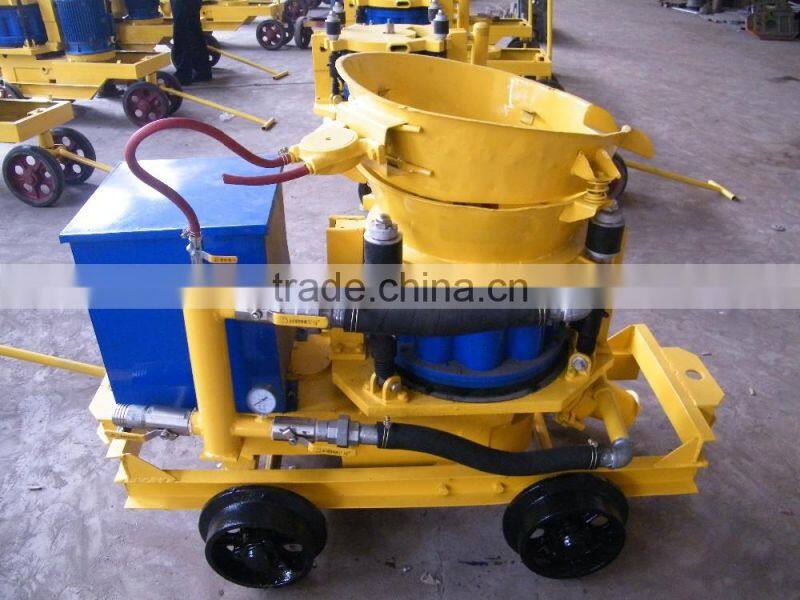

Good Quality Shotcrete Machine/small Shotcrete Machine photo-1

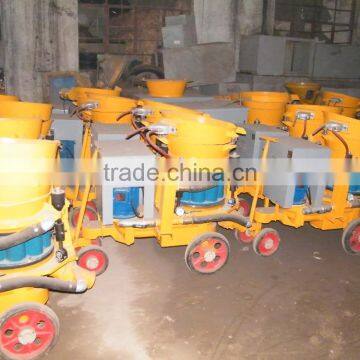

Good Quality Shotcrete Machine/small Shotcrete Machine photo-2
US$ 1,000 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Hose Inner Diameter:
51 mm
Air Consumption:
7-8 m3/h
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai for small shotcrete machine
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Hose Inner Diameter 51 mm
Air Consumption 7-8 m3/h
Place of Origin Henan, China
Brand Name Furui
Model Number FR-5
Voltage 380V
Power(W) 5.5 KW
Dimension(L*W*H) 1520x820x1280mm
Weight 600kg
Certification CE
Warranty 12 Months
After-sales Service Provided Engineers available to service machinery overseas

                           Good quality shotcrete machine/small shotcrete machine

Product Description

 Details of small shotcrete machine :

1.The machines set the advantages of wet and dry spray machine at home and abroad in one, it is easy to operate, sprays evenly. and has the advantage of a low dust, low rebound.

2.machines are divided into two major categories, that is explosion-proof type and non-explosion-proof type, both are based on  straight-through-type rotor blanking under the rotor material, can take full advantage of the role of air force jet to ensure the smooth discharge.

3.The rotor chamber and the discharge elbow materials are made of flexible rubber abrasion. When working, under the action of the pressure can be rushed to the self-cleaning effect, reducing adhesive material and congestion, greatly reduced the maintenance workload of the machine.

4.It optimized the working environment, and improved the quality of spray layer. Good quality shotcrete machine/small shotcrete machine

Good quality shotcrete machine/small shotcrete machine



Technical data of small shotcrete machine :

Model

Capacity

Air consumption

Conveying distance

Material ratio

Motor power

Max Aggregate size

Conveying pipe

 inner diameter

Weight

PG-5

5 m3/h

7-8 m3/h

200m-

40m

1:3-5

5.5kw

20m

51mm

600kg

PG-6

6-7 m3/h

10-15 m3/h

200m-

40m

1:3-5

7.5kw

20mm

51/64mm

800kg

PC-7

7-8 m3/h

10-15  m3/h

200m-

40m

1:3-5

7.5kw

20mm

51/64mm

800kg

KP-9

7-8 m3/h

10-12 m3/h

200m-

40m

1:4-5

5.5kw

15mm

51mm

1350kg

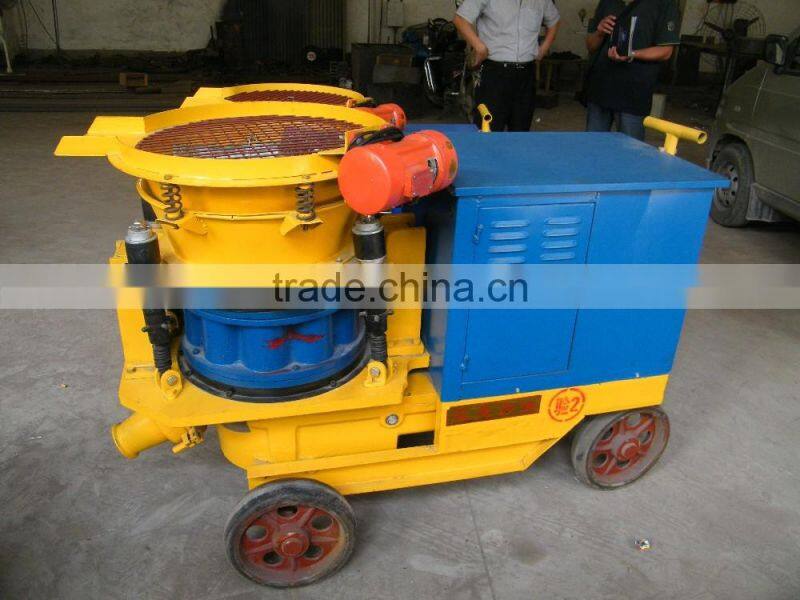

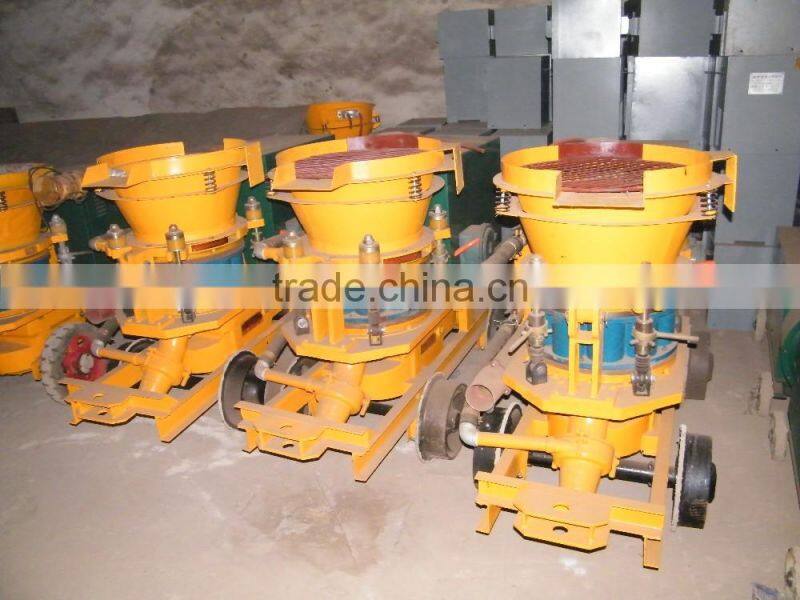

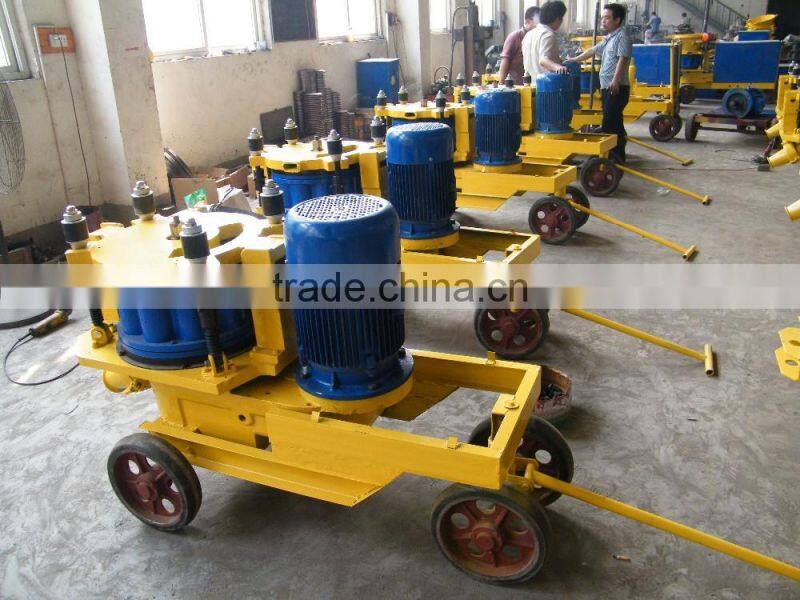

Picture of small shotcrete machine :Good quality shotcrete machine/small shotcrete machineGood quality shotcrete machine/small shotcrete machineGood quality shotcrete machine/small shotcrete machineGood quality shotcrete machine/small shotcrete machine

If you need this machine ,pls contact me .

Good quality shotcrete machine/small shotcrete machine



Packaging & Shipping

packing  with wooden case/plywood; Or with container based order quantity.
