tire recycling plant/tire recycling machine for sale
Model:XKP-4-560
Diameter of front roller: 560mm
Diameter of back roller: 510mm
Length of the rollers: 800mm
Linear velocity of front roller: 20.5m/min
Max roll space:10mm
Reducer ratio: 12..64:1
Power: 75kw
Motor speed: 980r/min
Weight: 13000kg
Fine grinding: 5-60mesh
Output: 5-15ton/day

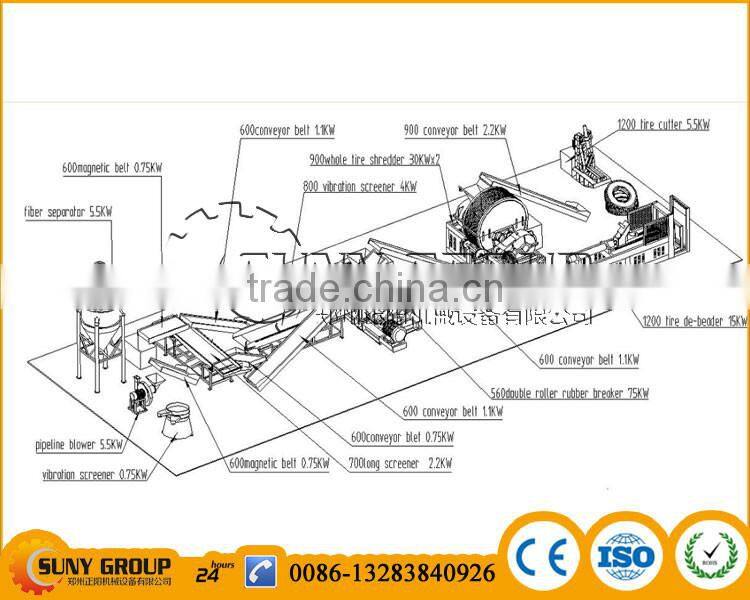

waste tire→ring cutter→cutting strips→cutting blocks→separate steel wire→crush rubber blocks→making powder→magnetic separation→final products(rubber powder)

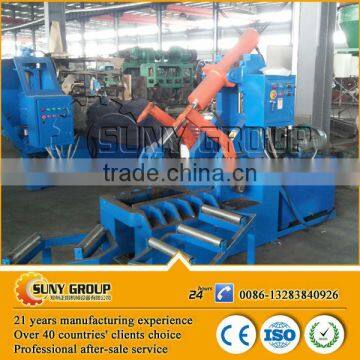

Ring cutter: 1.Make tire side and tire top joint use a knife to slice;
2. Make the side of the tire and tire top complete separation.
Strip cutter: Cut the tire cut into strips, tires circle mouth retained.
Block cutter: Cut strip tires into 3--5 centimeters square blocks.
Steel separator: Make tire of coarse steel mouth circle parts with rubber complete separation.
Rubber crusher: 1.Make powder for the first time sorting (5-10mesh); 2. Used to transport powder not reached mesh request return to host continue to broken;
3. Make the finished powder separation (10-40 mesh);
4. Make the metal wire powder extraction separation.

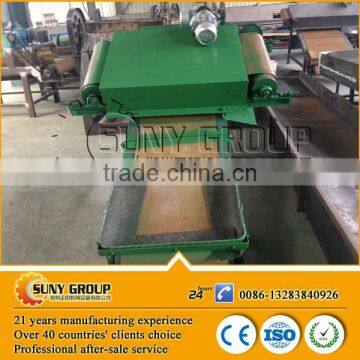

Magneticseparator:Separate wire and powder,usualy with two separators, one is rough sepatating and another is select.
waste tire→ring cutter→cutting strips→cutting blocks→separate steel wire→crush rubber blocks→making powder→magnetic separation→final products(rubber powder)
Introduction of the tyre recycling machine:
The resource of waste tyres are mainly from waste tyres, waste tyre tubes, waste rubber belt,
waste rubber hose, and waste rubber overshoes, then from the waste products and leftover bits generated while manufacturing rubber products. It belongs to one large categories of industry
solid waste. In order to protect the environment and reduce the wastetrubber pollution to
environment, realizing the recycling and reusing of waste rubber, especially waste tyres
is of greatnecessity. Carrying out the recycling and reusing of waste tyres is the effective way of changing waste to treasure,disadvantage to advantage, avoiding the waste rubber pollution to
environment; is the method of developing economyto make waste rubber to be recycled and
reused; is the base of fulfilling International Environmental
Conventions and Agreements and doing environment good foreign affairs.
Application of rubber powder:
1. Produce recycled rubber through the desulfurization process
2. Color elastic pile.
3. The production of waterproof membrane, waterproof coating, waterproof seal materials.
4. For the modified asphalt.
5. For the modified plastics.
6. For the construction of plastic sports venues, runway, artificial turf.
7. For oilfield plugging the solid wall.
8. High-grade highways caulk.
9. For the production of soles.
10.Mixed rubber and waste plastic powder to manufacture of new environmental friendly thermoplastic elastomer.
Welcome contact me for more other models:
Model No. |
XKP-4-400 |
XKP-4-450 |
XKP-4-560 |
Diameter of front roll |
400 mm (smooth) |
450 mm (smooth) |
560 mm (smooth) |
Diameter of back roll |
400 mm (groove) |
400 mm (groove) |
510 mm (groove) |
Drum working length |
800mm |
800mm |
800mm |
Front roll liner speed |
20.5m/min |
20.5m/min |
20.5 m/min |
Roll ratio |
12.64 |
35.5:1 |
12.64 |
Max roller spacing |
10mm |
10 mm |
10 mm |
Motor power |
45KW |
45-55KW |
75KW |
Motor revolution speed |
980r/min |
980r/min |
980 r/min |
Weight |
13T |
13 T |
13 T |
Output |
4-8ton/day |
4-10ton/day |
5-15ton/day |
Our company regards the product quality as the life of our enterprise. Our products have already passed relevant International Quality Management System Certifications. Our products are exported to clients across the world. We adopt highly abrasive materials and advanced processing technique, making the devices have long life span and wearproof performance. We have won a great reputation at home and abroad.
If you are interesting in our machine, please contact me without any hesitation!
