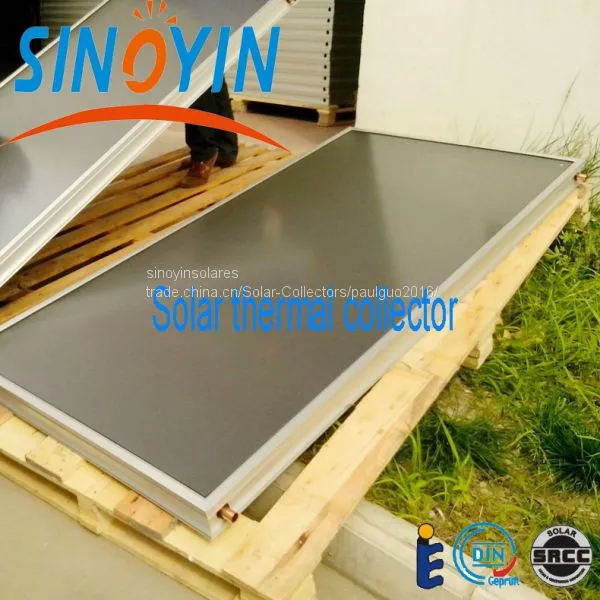

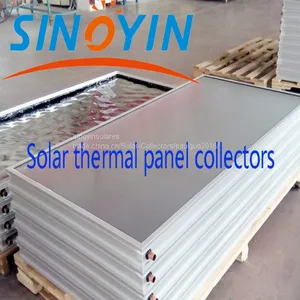

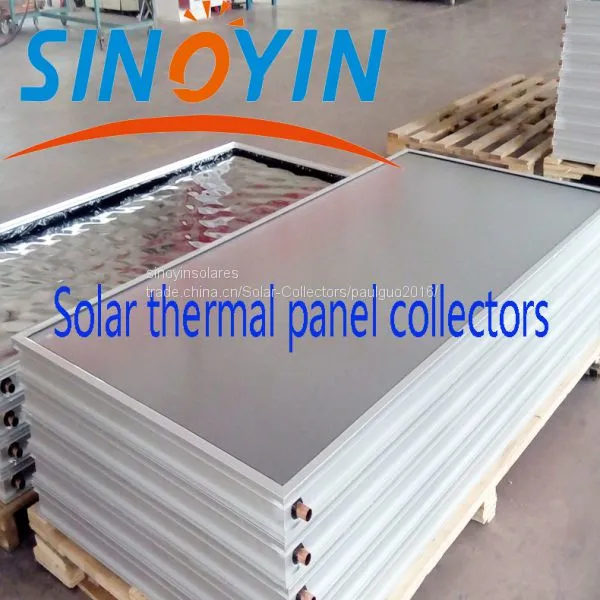

Solar Keymark Solar Panel Heating Collector of Laser Welding

Solar Keymark Solar Panel Heating Collector of Laser Welding thumbnail-1
Solar Keymark Solar Panel Heating Collector of Laser Welding thumbnail-2
Solar Keymark Solar Panel Heating Collector of Laser Welding thumbnail-3
Solar Keymark Solar Panel Heating Collector of Laser Welding thumbnail-4
Solar Keymark Solar Panel Heating Collector of Laser Welding thumbnail-5
Solar Keymark Solar Panel Heating Collector of Laser Welding photo-1
Solar Keymark Solar Panel Heating Collector of Laser Welding photo-2
Solar Keymark Solar Panel Heating Collector of Laser Welding photo-3
Solar Keymark Solar Panel Heating Collector of Laser Welding photo-4
Solar Keymark Solar Panel Heating Collector of Laser Welding photo-5
US$ 115 - 130 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
sinoyin
Place of Origin:
China
Model Number:
FP-GV2.15-80-Black
Contact Supplier Request Quote Chat Now
Sinoyin Solares
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
10 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name sinoyin
Place of Origin China
Model Number FP-GV2.15-80-Black
Type Flat Panel
Application Solar Thermal
Pipe Material Copper



Product Description



Collectors Specifications

 FP-GV2.15-80-LT FP-GV2.0-80-HG
Dimensions 2050X1050X80mm 2050X1050X80mm
Casing material aluminum alloy 6063-T5 aluminum alloy 6063-T5
Gross area 2.15m2 2.15m2
Aperture area 1.97m2 1.97m2
Absorber coating magnetron sputtering coating,thickness0.4mm; chromeplate coating
,thickness0.4mm;
Absorptance ≥95% ≥93%
Emittance ≤5% ≤10%
Welding Method laser welding laser welding
Heat carrier volume 1.3L 1.3L
Head tube diameter:φ22mm,thickness:δ0.6mm diameter:φ22mm,thickness:δ0.6mm
Branch tube diameter:φ8mm,thickness:δ0.6 diameter:φ8mm,thickness:δ0.6
Weight 36Kg 36Kg
Insulation material fiber glass,thickness,30mm fiber glass,thickness,30mm
Glass cover low iron tempered,thickness:3.2 low iron tempered,thickness:3.2
Efficiency(η) 0.77 0.75
Heat loss 4.5W/m2.℃ 4.5W/m2.℃
Stagnation temperature 180℃ 165℃
test pressure 1.2Mpa 1.2Mpa
Normal pressure 0.7Mpa 0.7Mpa
Recommend flow rate 70-80L/h 70-80L/h
Recommend connecting number ≤8 ≤8
Packaging Corrugated carton Corrugated carton
Warranty period 5 years 5 years
20 feet container num: 130Pcs 130Pcs
40 feet container num: 266Pcs 266Pcs



Product details show

 Product details show:

laser welding001.jpgperformance02.jpgselective coating03.jpg

 solar thermal collector details.jpg



Advantages


 laser welding.jpg



Office show

 Office show:

office show07.jpg

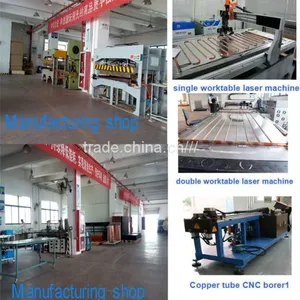

manufacturing shop

 Mamufacturing shop:

Manufacturing shop06.jpg



Certifications:

 Certifications:

solar key mark certificate.jpgSRCC certificate.jpg

Packaging

 Packaging:



packaging for collectors.jpg

Product Uses

 Product uses:product case show.jpgSplit solar thermal water heating system.jpg
