More Than 20 Years Experience Improved Efficiency With Dust Sand Gas Rotary Cylinder Dryer Price
- 1 Set / Sets per Month
- Qingdao China
- T/T Credit Card PayPal
Product Details
Type: | Other, Rotary Drying Equipment, Rotary Dryer | Place of Origin: | Shandong, China | ||
Brand Name: | JingYao | Model Number: | Xw-L | Voltage: | customizable |
Power(W): | 11Kw | Dimension(L*W*H): | 24*3*3.5M, As required | Weight: | 4470kg, As required |
Certification: | CE/ISO | Warranty: | one year, 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
More Than 20 Years Experience Improved Efficiency With Dust Sand Gas Rotary Cylinder Dryer Price
Model | Conventional Dryer | Three-pass Dryer | |||
650*10 M | 650*10M (Cylinder unloading) | 1*6M | 1.2*10 M | 1.5*12 M | |
Size(length*width*high)(m) | 22*3*3.2 | 20*3*3.2 | 24*3*3.5 | 30*3.5*4.5 | 33*4*5 |
Material travel distance(m) | 32 | 20 | 38 | 55 | 50-55 |
Main power(kw) | 7.5 | 7.5 | 11 | 18.5-22 | 22-30 |
Roller power(kw) | 2.2 | 2.2 | 2.2 | 5.5 | 7.5 |
Max tube diameter(mm) | 900 | 900 | 1050 | 1200 | 1500 |
Minimum tube diameter(mm) | 300 | 300 | 350 | 450 | 500 |
Capacity(kg/h) | 400-600 | 400-500 | 600-800 | 1300-1500 | 1600-1800 |
Hot wind stove size(mm) | 2000*1000 *1300 | 2000*1000 *1300 | 2000*1000 *1450 | 2450*1100 *1450 | 2780*1250 *1920 |
Hot wind stove weight(kg) | 1500 | 1500 |
|
|
|
Total weight(kg) | 3900 | 3900 | 4470 | 7440 | 11600 |

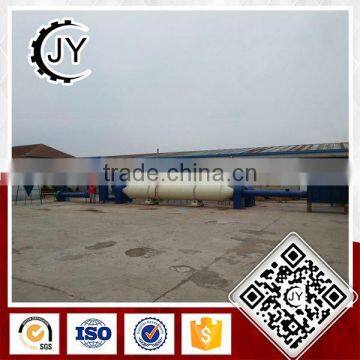

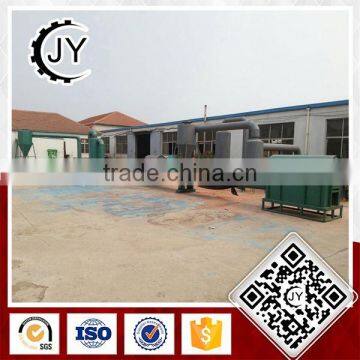

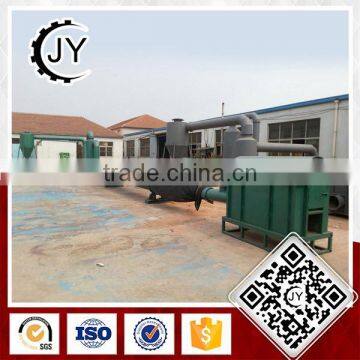

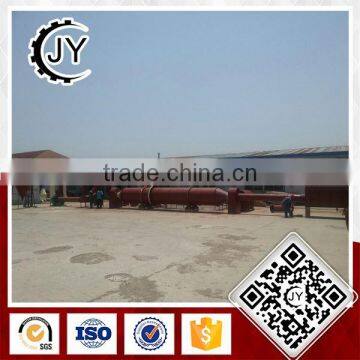

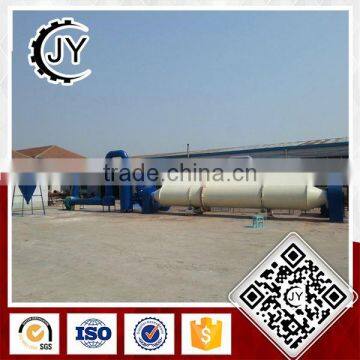

The rotary dryer is a type of industrial dryer employed to reduce or minimize the liquid moisture content of the material, which is handling by bringing it into direct contact with a heated gas.
♦ Different Angle
1. The dryer is made up of a large, rotating cylindrical tube, usually supported by concrete columns or steel beams.
2. The dryer slopes slightly so that the discharge end is lower than the material feed end in order to convey the material through the dryer under gravity. |
3. Material to be dried enters the dryer, and as the dryer rotates, the material is lifted up by a series of internal fins lining the inner wall of the dryer.
4. When the material gets high enough to roll back off the fins, it falls back down to the bottom of the dryer, passing through the hot gas stream as it falls. |
5. This gas stream can either be moving toward the discharge end from the feed end (known as co-current flow), or toward the feed end from the discharge end (known as counter-current flow).
6. The gas stream can be made up of a mixture of air and combustion gases from a burner, in which case the dryer is called a direct heated dryer. |
7. Alternatively, the gas stream may consist of air or another (sometimes inert) gas that is preheated.
8. By maintaining a low gas velocity, very low particulate carryover occurs, improving product yield.
9. Rotary dryer is suitable to dry metallic and nonmetallic mineral, clay in cement industrial and coal slime in coal mine, etc. |
♦ Three-pass Dryer Feature
1.Screw conveyor send the 30-40% moisture saw dust into the first layer of the rotary dryer, to realize the downstream drying, the saw dust realize the heat exchange by spiraled in the first layer, to pre-evaporation of the moisture.
2.When the saw dust moved to the end of the first layer, will drop into second layer reverse move, the saw dust will be move up and drop down by the shoveling plate, and keep repeating during then whole trip in the second layer, the saw dust can fully absorb the heat coming from the inner and outer pipe, also prolong the drying time, the saw dust will get the best drying state.
- Minimum installation
- Drive system minimizes vibration
- Low maintenance
- Improved efficiency with dust and heat containment
- Rugged, durable construction
- Drive components standard, off-the-shelf items
- Automatic control with adaptable programming
[1]Heavy Duty Rotary Dryer Drum | [2]Internal Rotary Dryer Lifters | [3]Rotary Dryer Riding Rings |
[4]Rotary Dryer Trunnion Rollers | [5]Rotary Dryer Thrust Wheel | [6]Rotary Dryer Drive |
[7]Rotary Dryer Feed Chute | [8]Combustion Chamber (optional) | [9]Rotary Dryer Discharge Chute |
[10]Rotary Dryer Discharge Seals | [11]Rotary Dryer Support Frame | [12]Rotary Dryer Modular Frame (optional) |
[13]Rotary Dryer Burner System |
Click here to learn more about other products.
If you want to know more about accessory equipment, please feel free to contact us.
More product in Homepage >>> http://biomass-machinery.en.china.cn/
♦ After-sale Service
1. Guarantee period is one year , since the date of purchasing.
2. 24- hour technical supports
3. Design product according to the customers requirement.
4. We provide available price.
