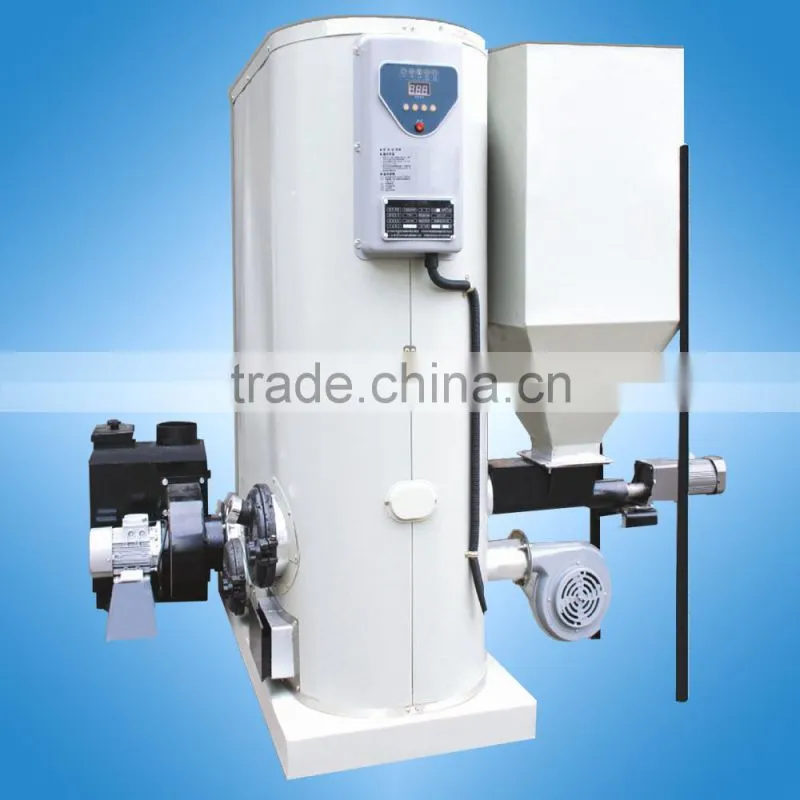

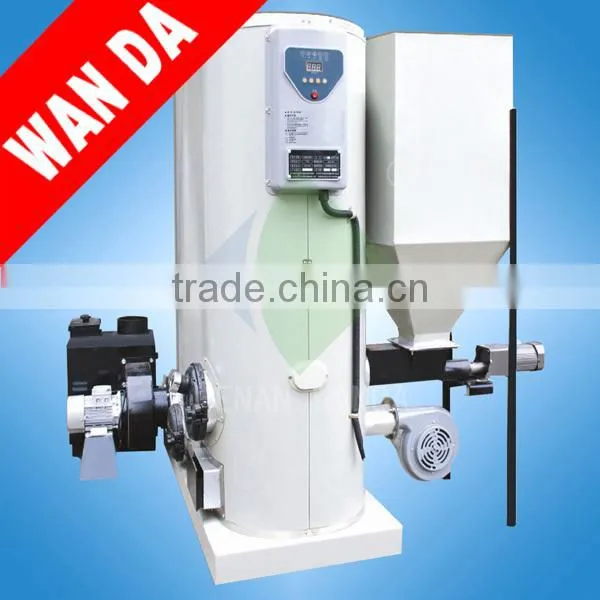

2014 new type biomass hot water boiler CLHOS1.05

FOB Price

USD $1,000 - $10,000 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Shanghai/Qingdao/Tianjin
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Once Through
Usage	Industrial	Structure	Water Tube
Pressure	Other, Atmospheric	Style	Vertical
Fuel	Other, biomass fuel such as wood pellets,sawdust etc.	Place of Origin	Henan, China
Brand Name	Wanda	Model Number	CLHOS1.05
Output	Hot Water	Dimension(LWH)	260015002500 mm
Weight	different models with different weights	Certification	CE,ISO
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

2014 biomass water heating boiler CLHOS1.05
1.Mainly used for hotel,greenhouse.
2..population among EUR.
3.2014 latest boiler

2014 the latest biomass hot water boiler CLHOS1.05

The characteristics of the 2014 latest boiler :

1. Gasification chamber with large capacity and unique structure design to make the fuel burning so complete that combustion efficiency can reach more 95%.

2. Feeding system adopts advanced screw rotation drive automatic feeding device, don't feed within 1~2 days after surge bin filled with fuel.

3. Ignition system adopted burning machine or heat wire automatic ignition that greatly reducing the labor intensity of workers.

4.It needn't a yearly check or professional stoker workers to operate.

5. The boiler is compact structure, small in size and installation is simple such as needn't to set up tall chimneys.

6. Be used galvanized processing,so the water in the boiler is cleanly and durable.

7. Using biomass fuel,that is the state suppote to promote energy conservation and renewable resources .

8.Biomass fuel from a number of sources such as straw,waste wood,sawdust etc.It can save the costs.

	Items	CLHOS0.058	CLHOS0.08	CLHOS0.12	CLHOS0.18	CLHOS0.23	CLHOS0.35	CLHOS0.48	CLHOS0.70	CLHOS1.05
	Fixed calorific capacity(Kcal)	5x10⁴	7x10⁴	10x10⁴	15x10⁴	20x10⁴	30x10⁴	40x10⁴	60x10⁴	90x10⁴
	Rated working pressure(Mpa)	0
	Rated the return water temperature (°C)	85/60
	Thermal efficiency(%)	>=90
	Water Output(L)	>=1000	>=1500	>=2200	>=3300	>=4000	>=6000	>=8000	>=12000	>=18000
	Refer The Warming Area(m²)	400-500	500-700	700-1000	1000-1500	1500-2000	2000-3000	3000-4000	4000-5000	7000-8000
	Diameter of Water(mm)	50	50	50	65	65	80	80	100	125
Power Consumption	Induced Draught System (Kw)	0.37	0.37	0.37	0.37	0.55	0.55	0.75	1.1	2.2
	Induced Draught System (Kw)	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8
	Feeding System(Kw)	0.9	0.9	0.9	0.9	0.9	1.1	1.1	1.5	1.5
	Chimney Size (mm)	140	140	140	140	202	202	240	260	260
Size	Light(mm)	1000	1200	1300	1400	1500	1700	1800	2400	2600
	Width(mm)	550	550	650	750	850	1000	1100	1250	1500
	Height(mm)	1080	1330	1410	1500	1600	1800	1950	2100	2500
	Transportation Quantity(Kg)	300	370	430	510	735	980	1520	1860	2350
	Fuel Consumption(Kg/h)	10	15	20	31	42	60	80	120	200
	Storage Bin Capacity(Kg)	100	100	200	200	300	300	400	500	800

More informations please contact me !
