Brief Introduction of Biomass Pellet Production Line

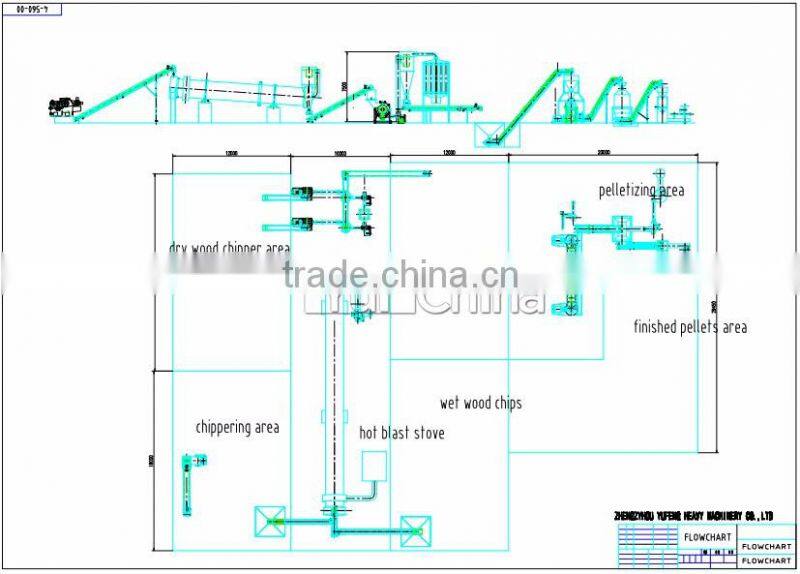

Biomass pellet production line is the whole process to make pellet from wood, sawdust, rice husk, crop stalks, cotton stalk,grass, straw and other biomass materials, including all the single devices. It can be divided into crushing, drying, pelletizing, cooling, sieving and packing system.
Applications of Biomass Pellet Production Line
1.Burning in a stove to cook at home;
2.Heat the house, school, hotel, or greenhouse, farm;
3.Used in thermal power plants to replace coal.
4.Used as cat litter to replace clay;
5.Used as horse bedding, or beddings for cow, chicken, dogs, and other animals.

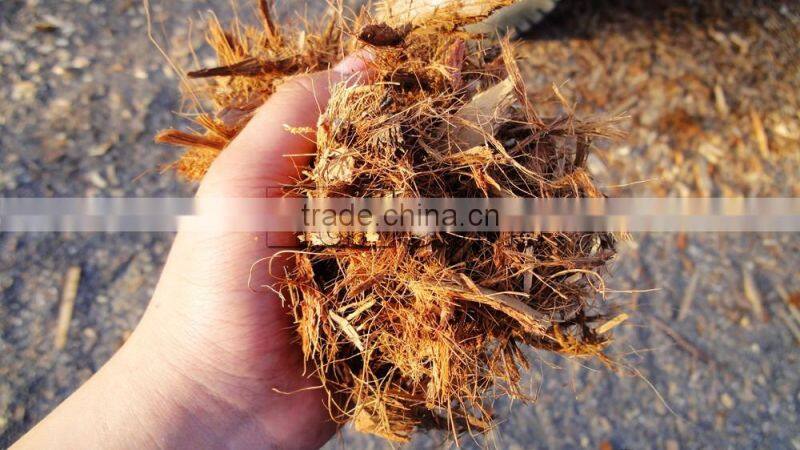

Kinds or Raw Materials

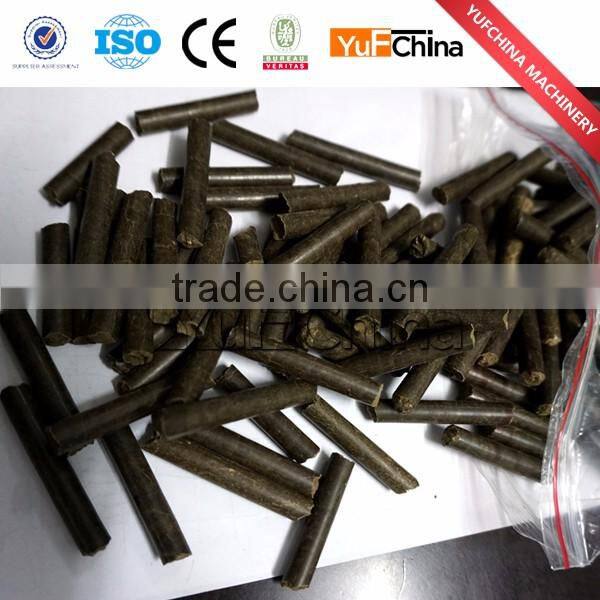

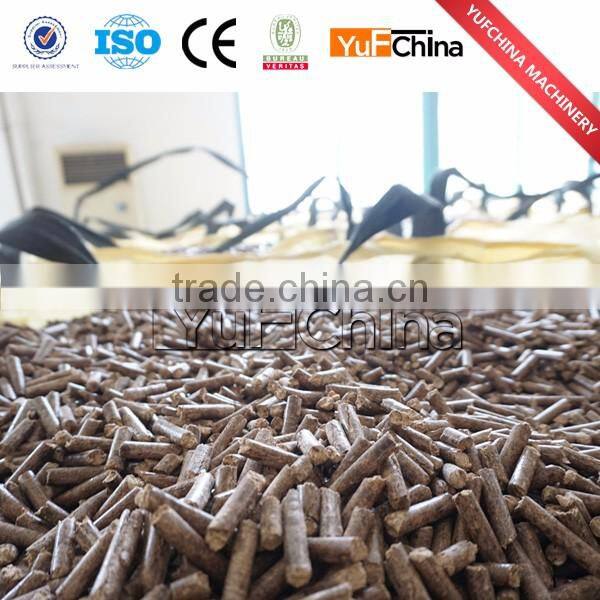

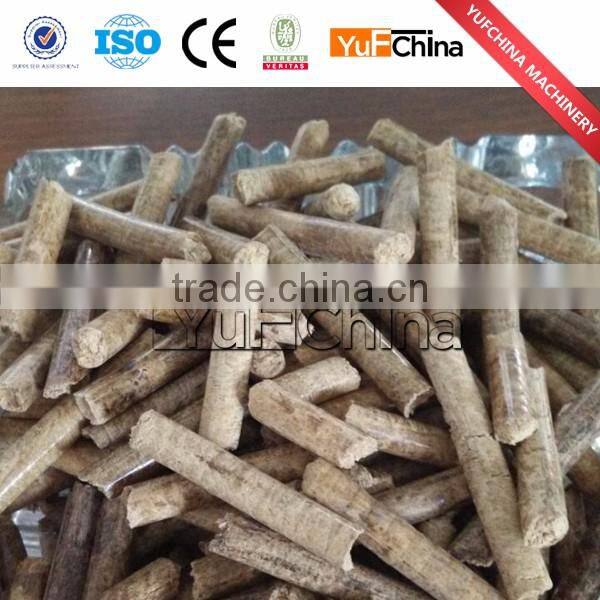

Output Pellet
Depending on the different input material, we will supply the suitable Crushing machines.When the raw material is wood logs with diameter less than 300mm or tree stamp, our Wood Chipper Machine and Wood Crushing Machine is your best choices.While Hammer Mill is widely used to crush each kind of straw, wood chip, tree branch, bark and leftover bits from agricultural wastes.The suitable moisture content in the Crushing Process is less than 20%, and the thickness of wood chip is less than 5mm.

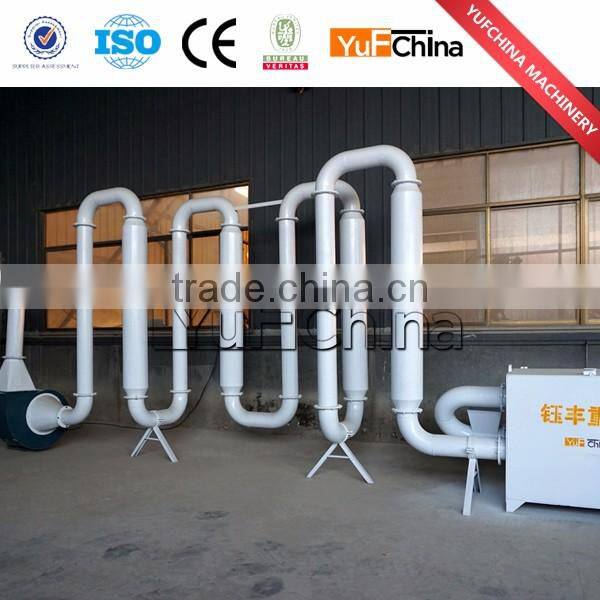

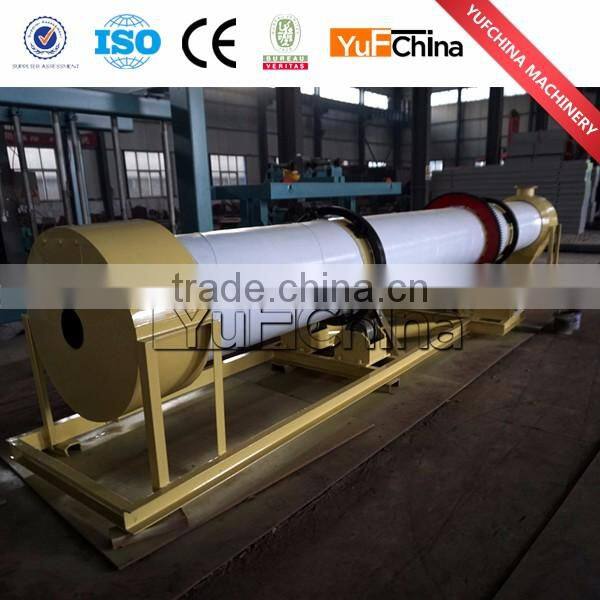

Drying Process:
The best moisture content to pelleting is about 8-15%. Our advanced technology of Rotary Dryer is made up of Burning Stove and Main Rotary Dryer, which can realize to reduce the moisture from 60% to 10%, and save about 30% energy consumption comparing the old Rotary Dryer. Our burning stove is fueled by coal and wood material, which can save electricity consumption largely. If the users want to use the other fuel such as gas and electricity, one Burner is necessary, but the extra cost will be charged.

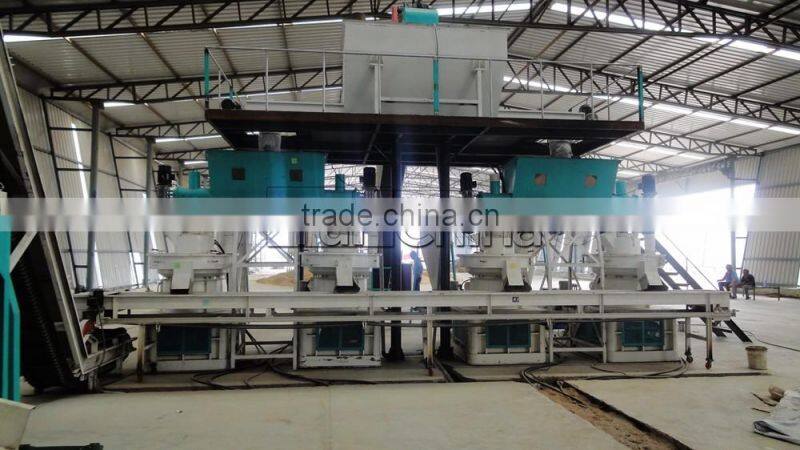

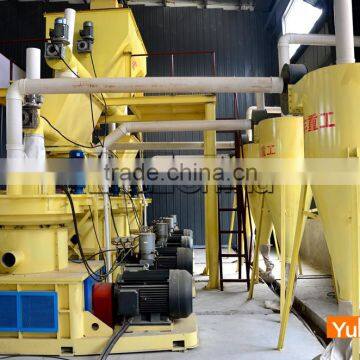

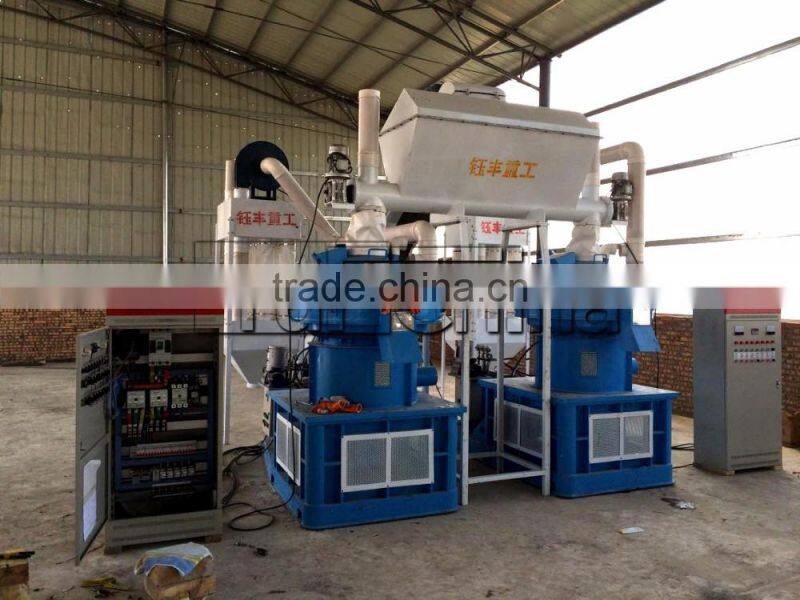

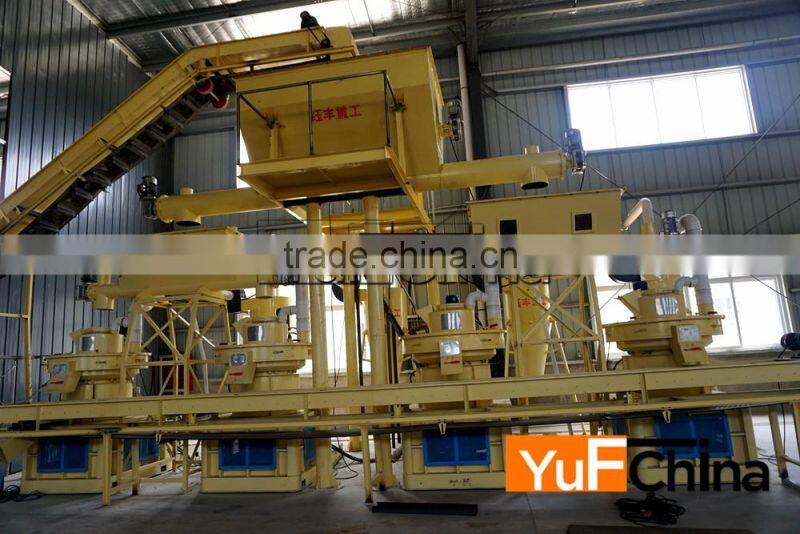

Pelleting Process:
Wood pellet mill is the heart of the wood pellet production line, and has reliable running performance.
It is special designed for compacting of wood, straw, and other biomass sources into pellets. Capacity
ranges from 1 to 10 t/h .Our YFK series Ring die pellet mill is best choice for large scale production.

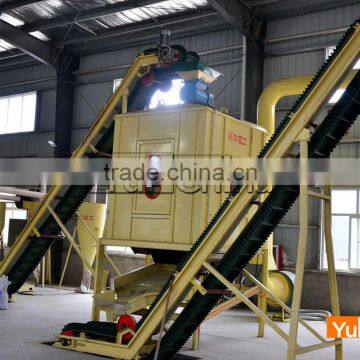

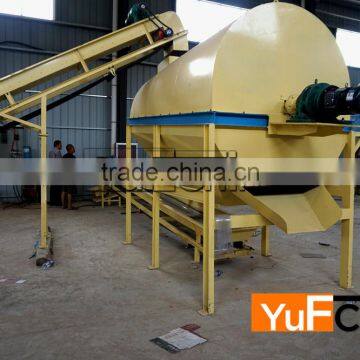

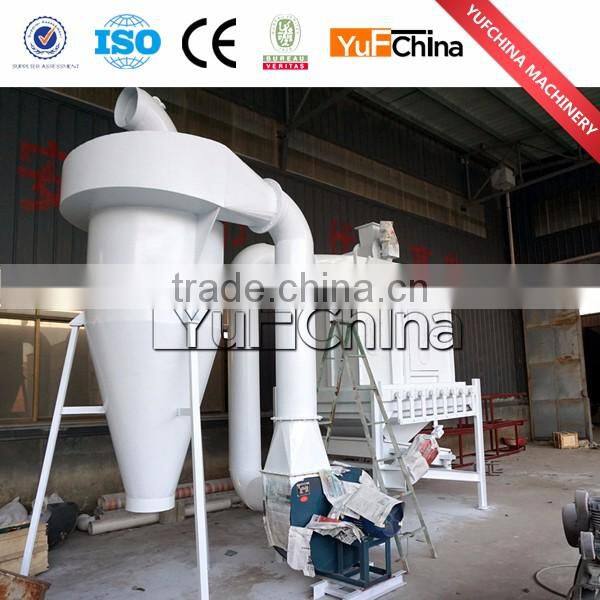

Cooling Process:
After the pelleting process, the temperature of the wood pellet is about 60-80 degree, and the moisture content of the wood pellet is about 15℃, so we need use Cooler to reduce about 3-4% moisture, such this the wood pellet is easy to store.But considering the feedback from some foreign clients, the local climate is very humidity; They hope to cool the wood pellet with moisture 7-8℃.

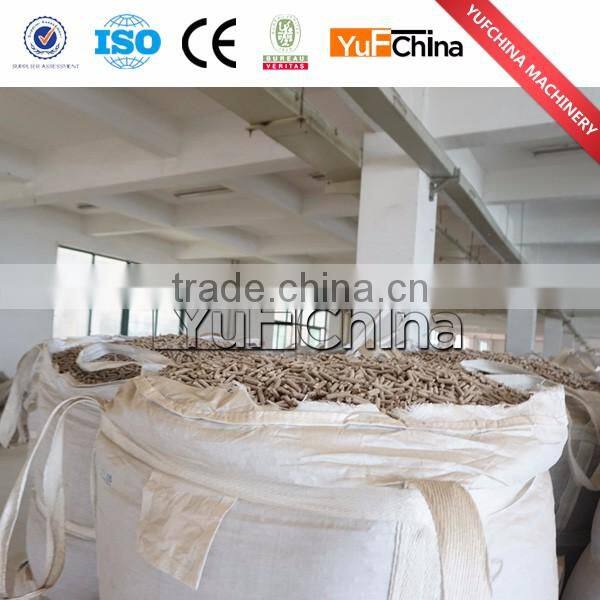

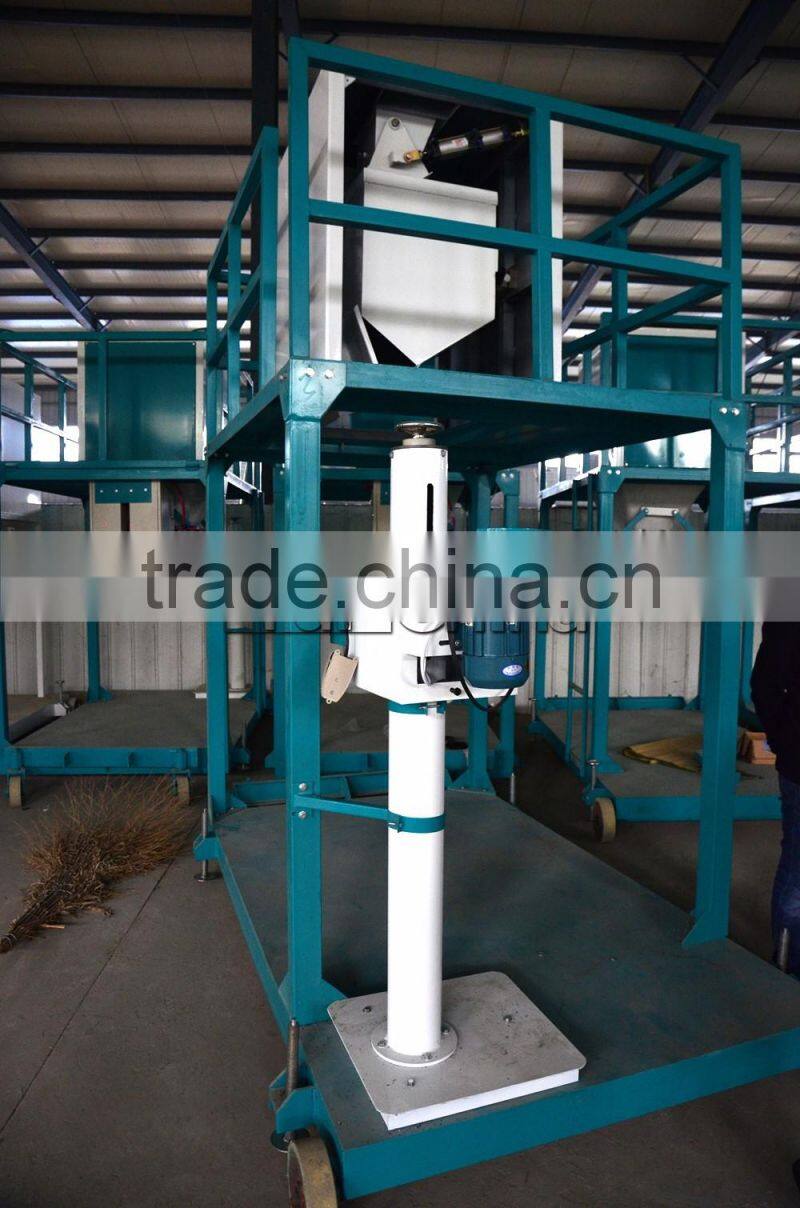

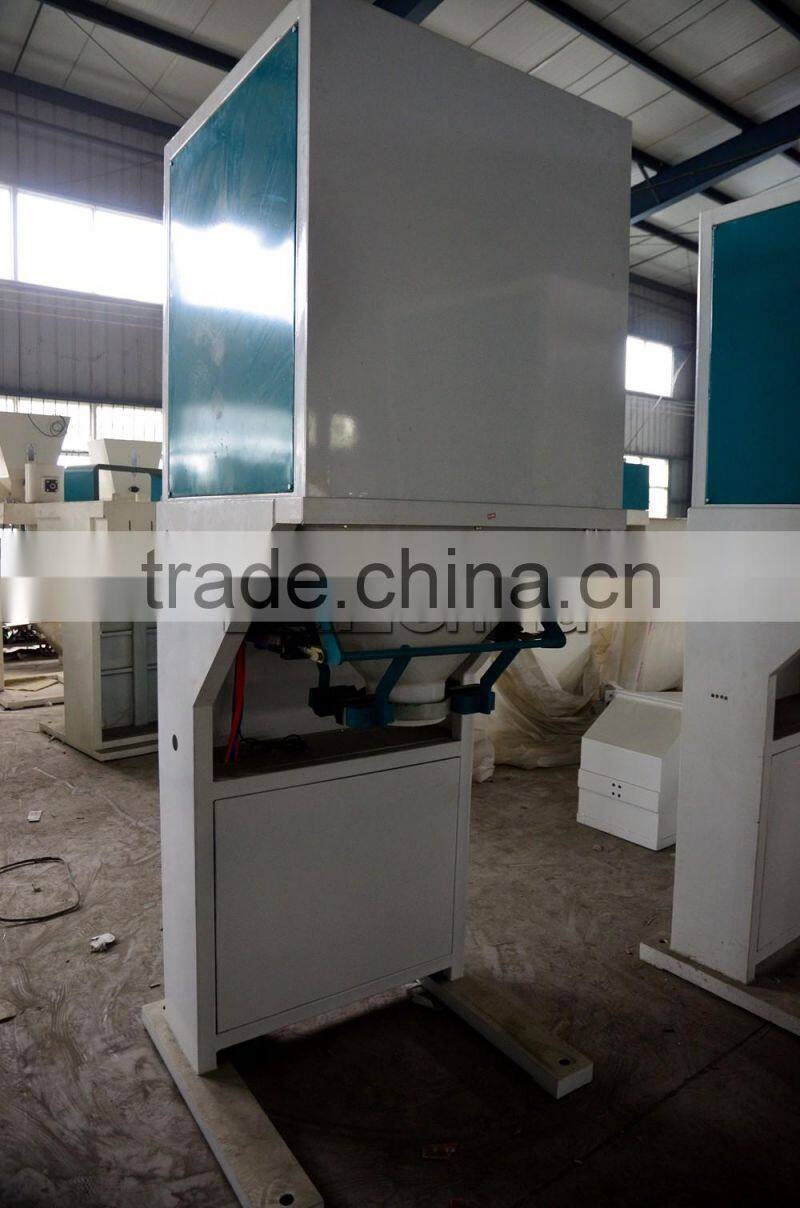

Packing Process:
After cooling, the wood pellet will not directly enter into the fuel process.To avoid the wood pellet affected with damp, the packing process is necessary. In this process, the packing machine will make packing of the wood pellet into bags for storage and easy transportation.
Pre-sale
1.We insist on giving best solution as per the customer's special demand.
2.Customized service and design.
3.View our factory.
During-sale
1.Manufacturing products strictly on contract while customer constructing.
2.Production progress report each week with detailed description and photo if needed.
3.Testing all the equipment by witness of the customer ex-work, delivery, customer acceptance.
After-sale
1.Training how to install and use the machine
2.Within warranty period, we take charge of everything if any quality problems.
3.Response customer's questions within 1 working day, give effective solutions within 3 working days.

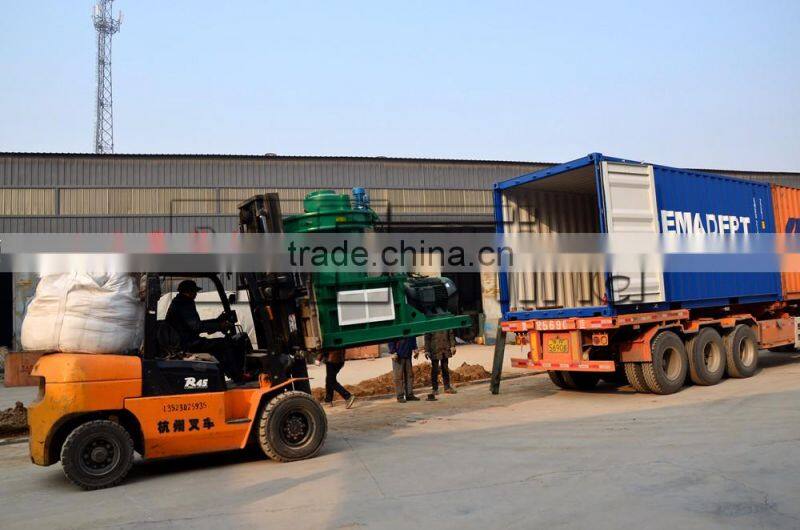

Package: Bulk Into Container
Deliver within 15 days after payment.
Zhengzhou Yufeng Heavy Machinery Co., Ltd. is founded in 2004, the production of R&D located in China. From 2004 on, Yufchina has offered the equipment with high-quality and reasonable price for over 200 customers in global, which helps them get $ 800,000 income annually.
Yufchina is devoted to offer the complete pellet line solution, which can meet the huge biomass pellet market demand in recent years.
Welcome to know more about our
biomass pellet production line.
....
